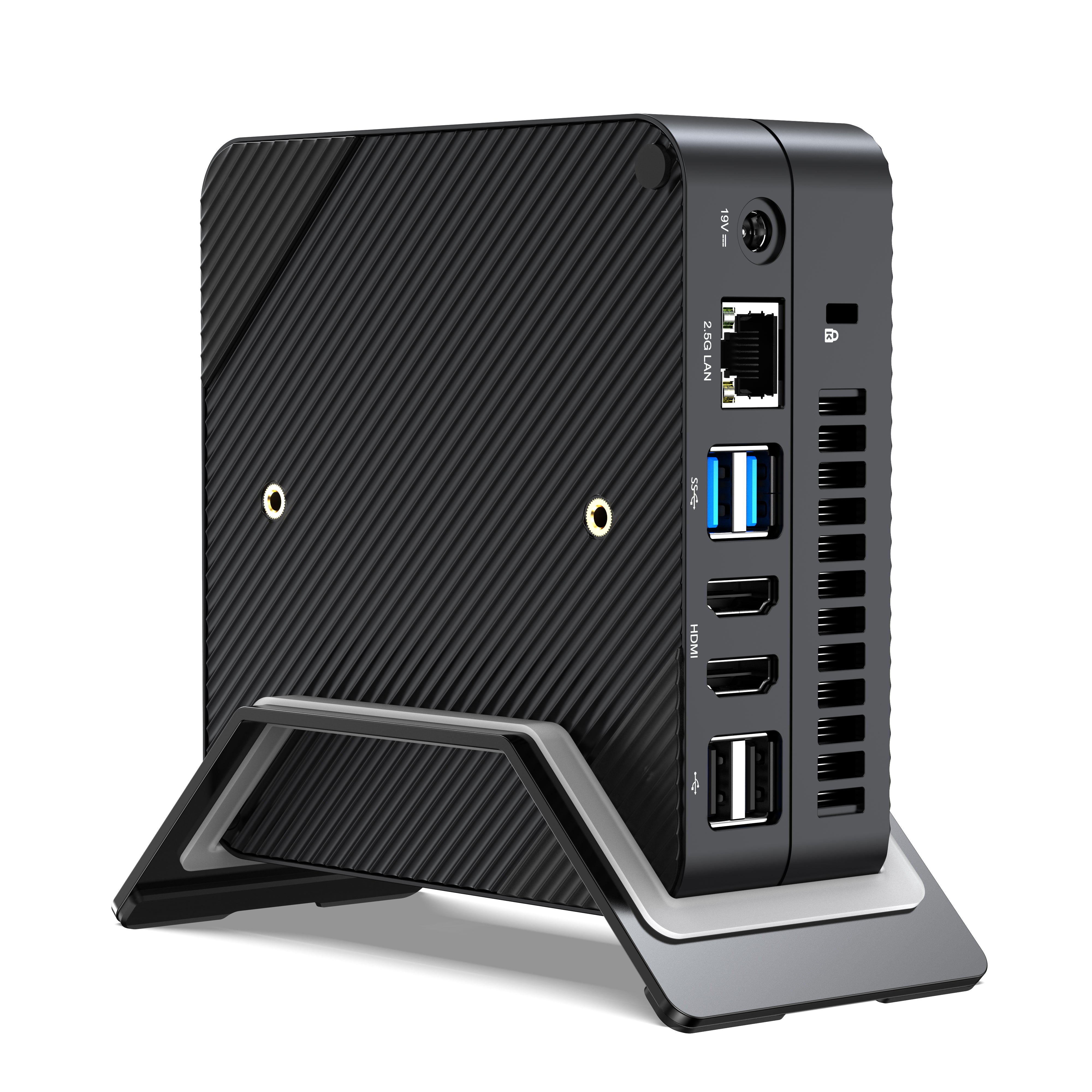

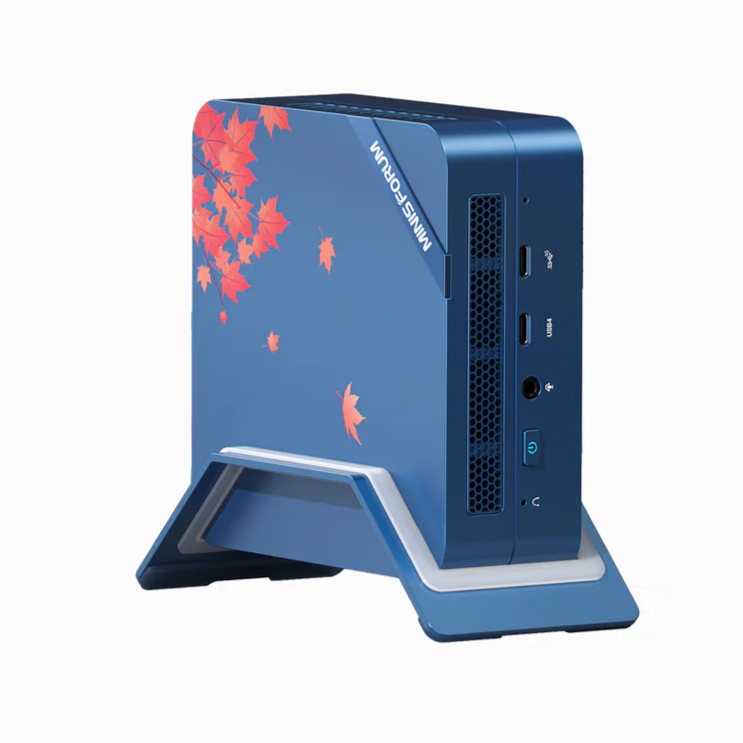

Minisforum UM773 Lite/SE/ME

Sale price£309.00 Regular price£439.00
Save £130.00

Shipping calculated at checkout.


CPU: AMD Ryzen™ 7 7735HS(Lite)
TYPE: Barebone|Ships in early January
ADAPTER: UK
VisaMastercardAmerican Express PayPalApple Pay Discover

Venus Series UM773 Lite

Featuring the latest AMD Ryzen™ 7000 Series Processor, UM773 Lite delivers satisfying results in productivity, office routine, and even mid-range gaming. It also offers triple 4K@60Hz displays, DDR5-4800MHz dual channel memory, and a high-speed USB4 port. Get ready to be amazed by this compact mini PC.

Video Review

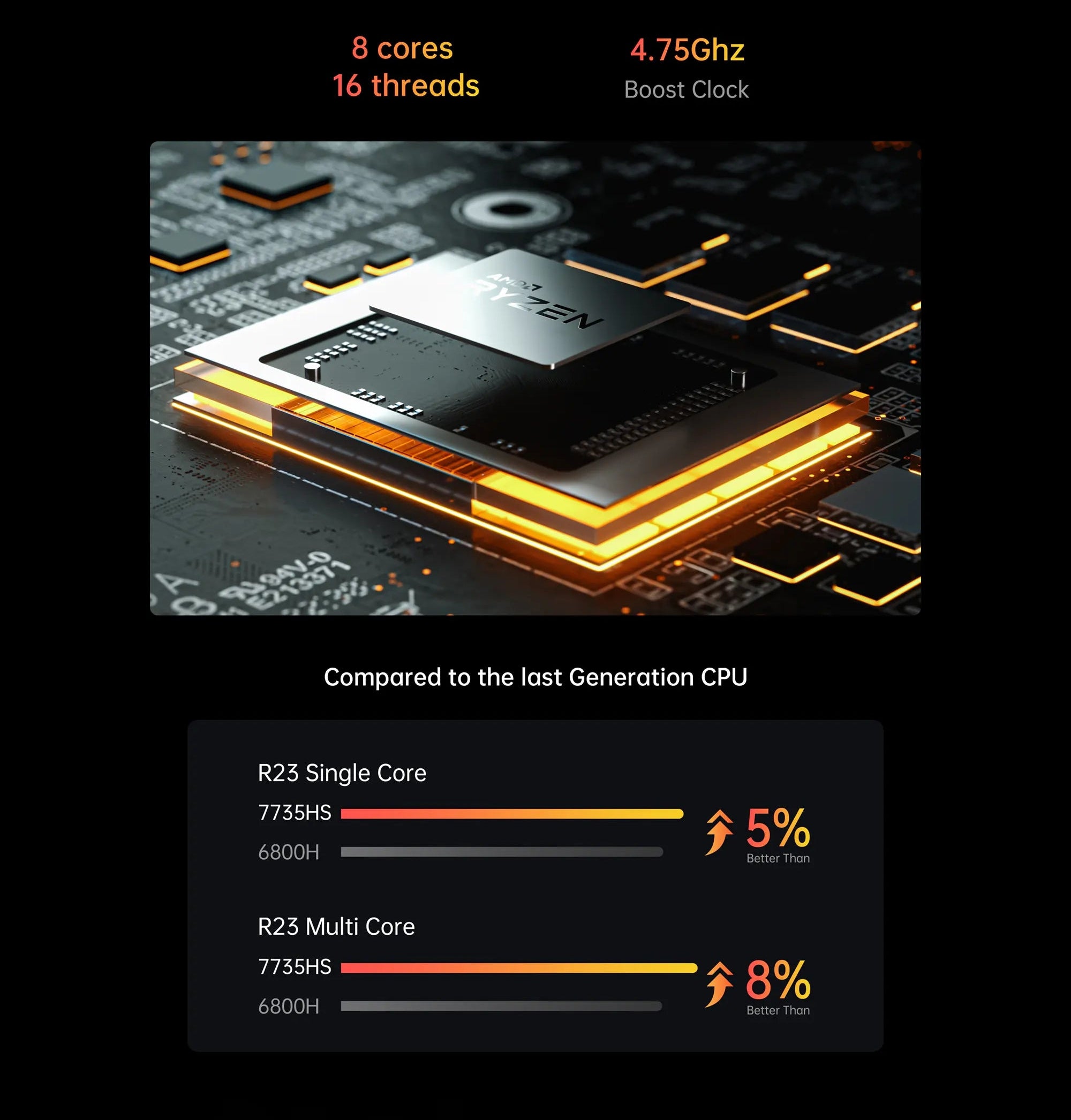

Latest AMD Ryzen™ 7000 Series CPU

The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).

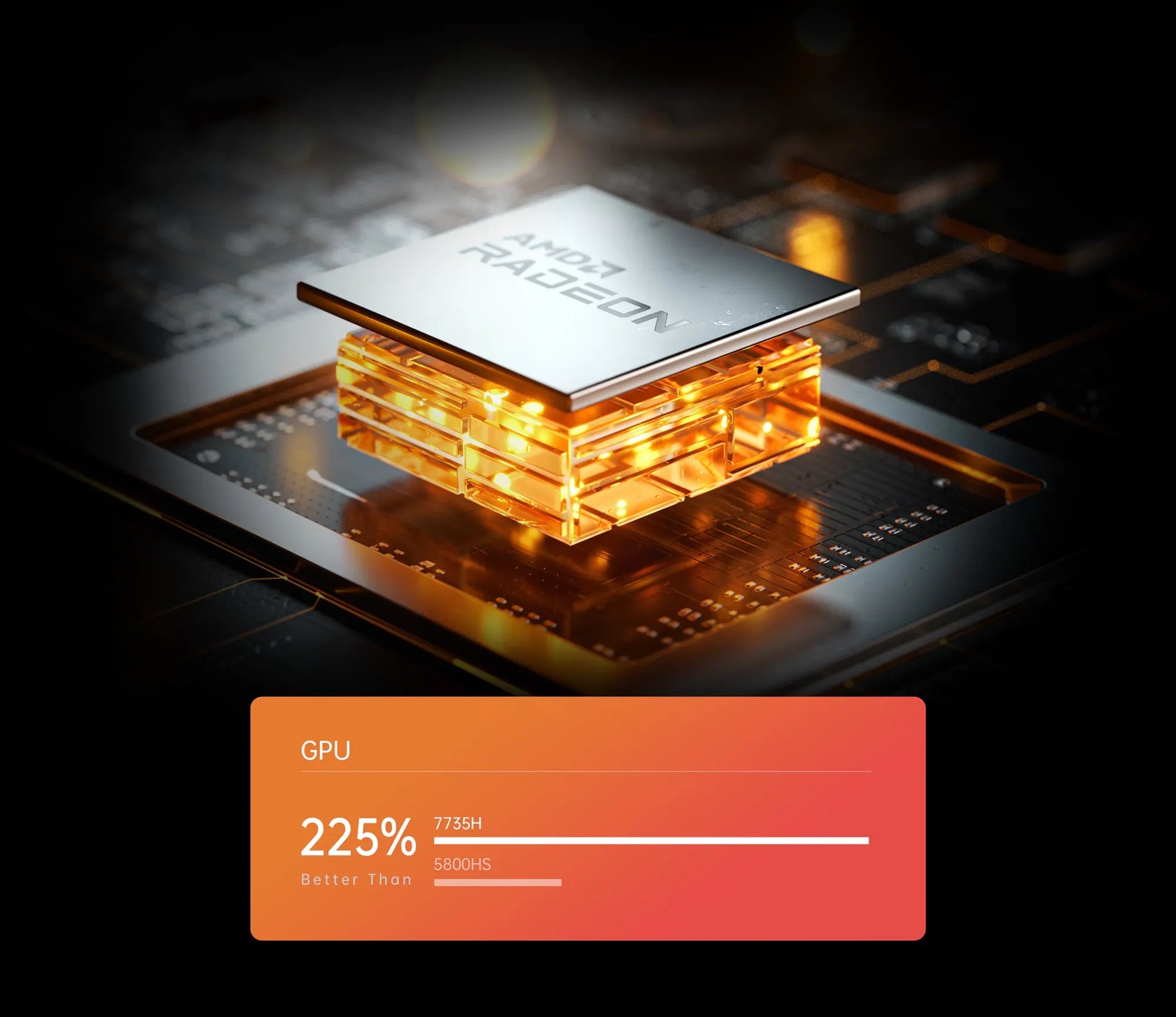

RDNA™ 2 Integrated Graphics

The AMD Ryzen™ 7 7735HS integrates the AMD Radeon™ 680M graphics. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.

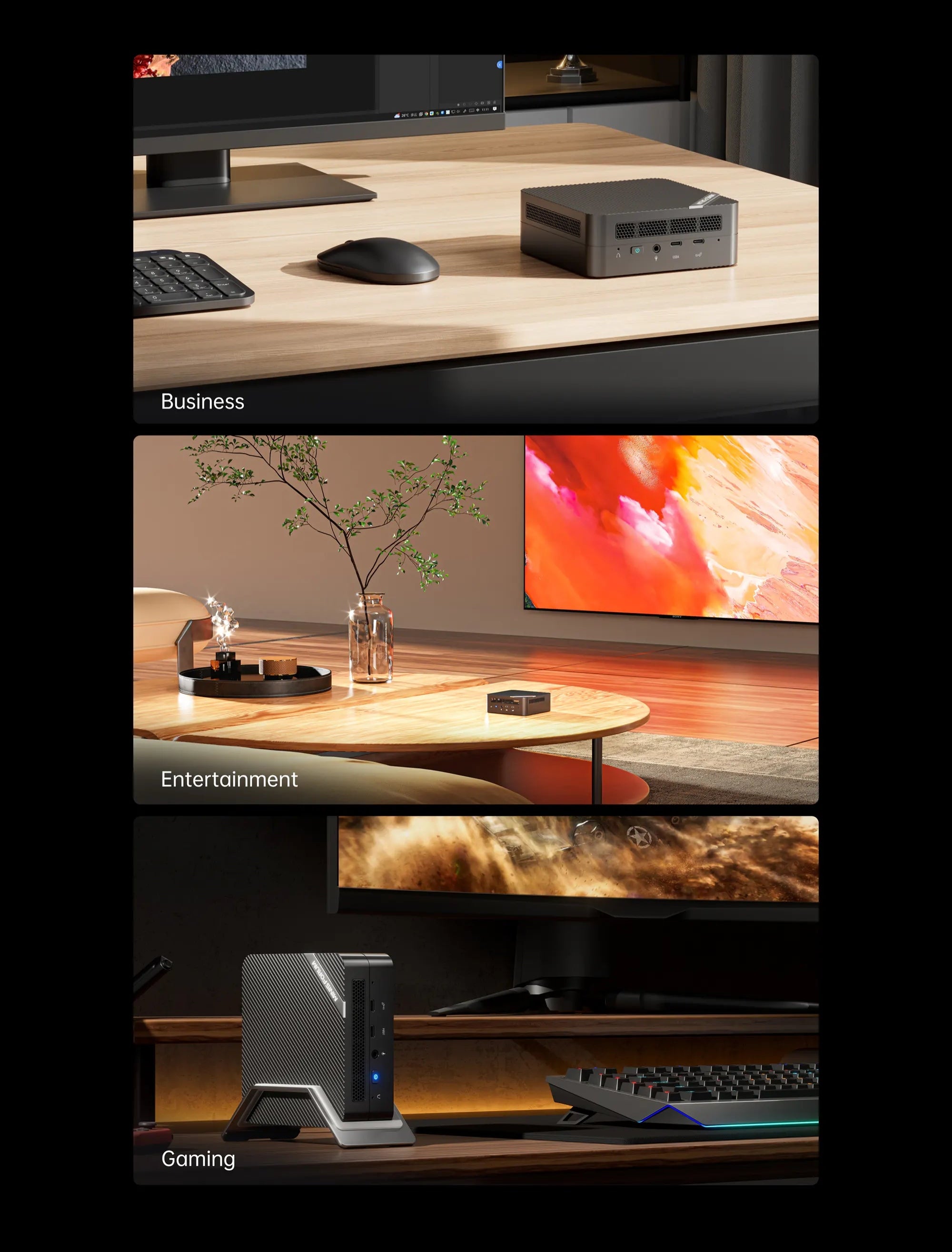

Versatile and Reliable

The UM773 Lite offers satisfying results in productivity and entertainment. Finishing office routines, watching films, and playing games are easier than ever.

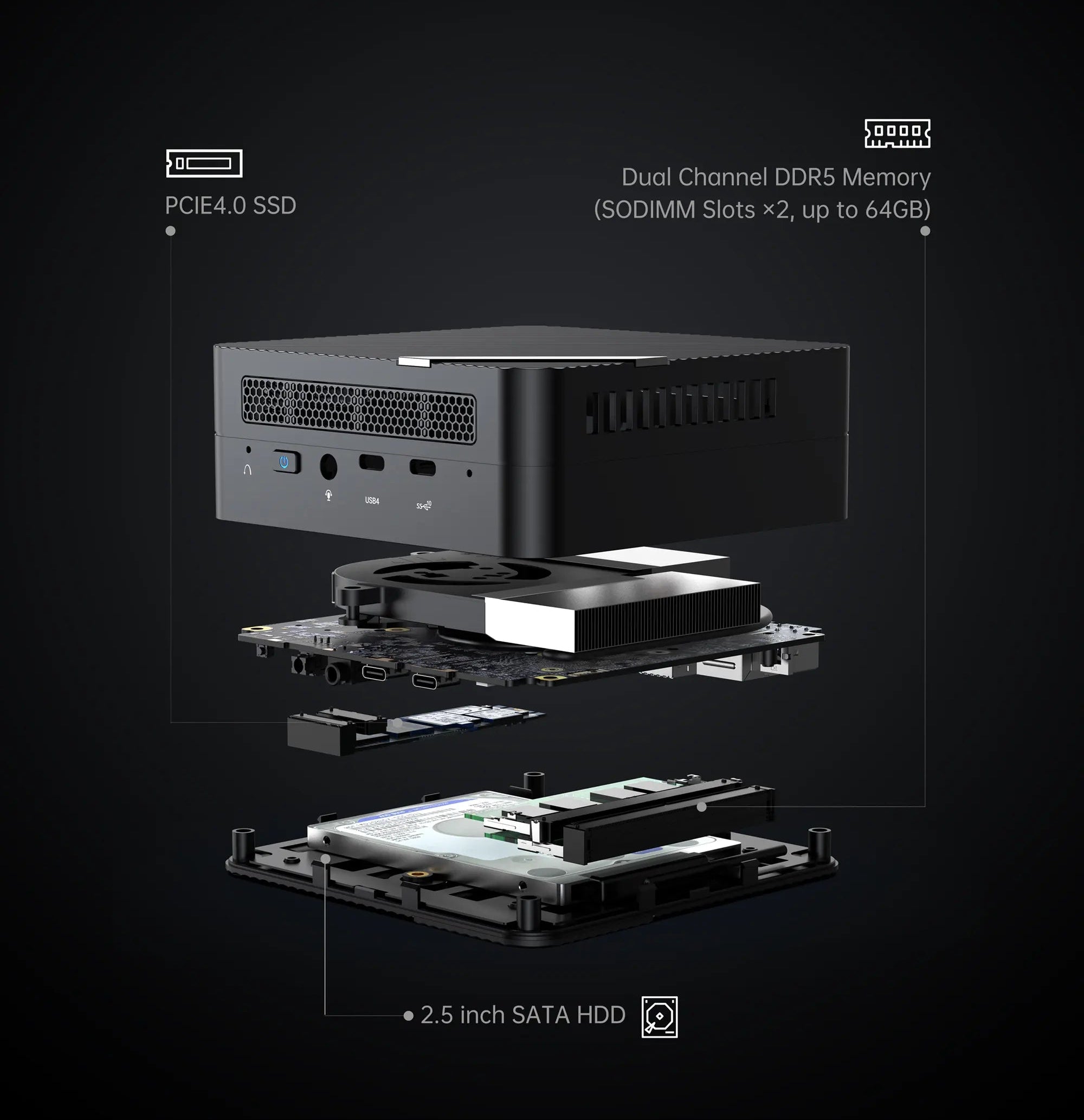

Upgrade-friendly

The UM773 Lite continues the upgrade-friendly design. The dual SODIMM slots for DDR5, M.2 2280 PCIe4.0 SSD slot and the 2.5-inch SATA 3.0 HDD slot are all available for further upgrade.

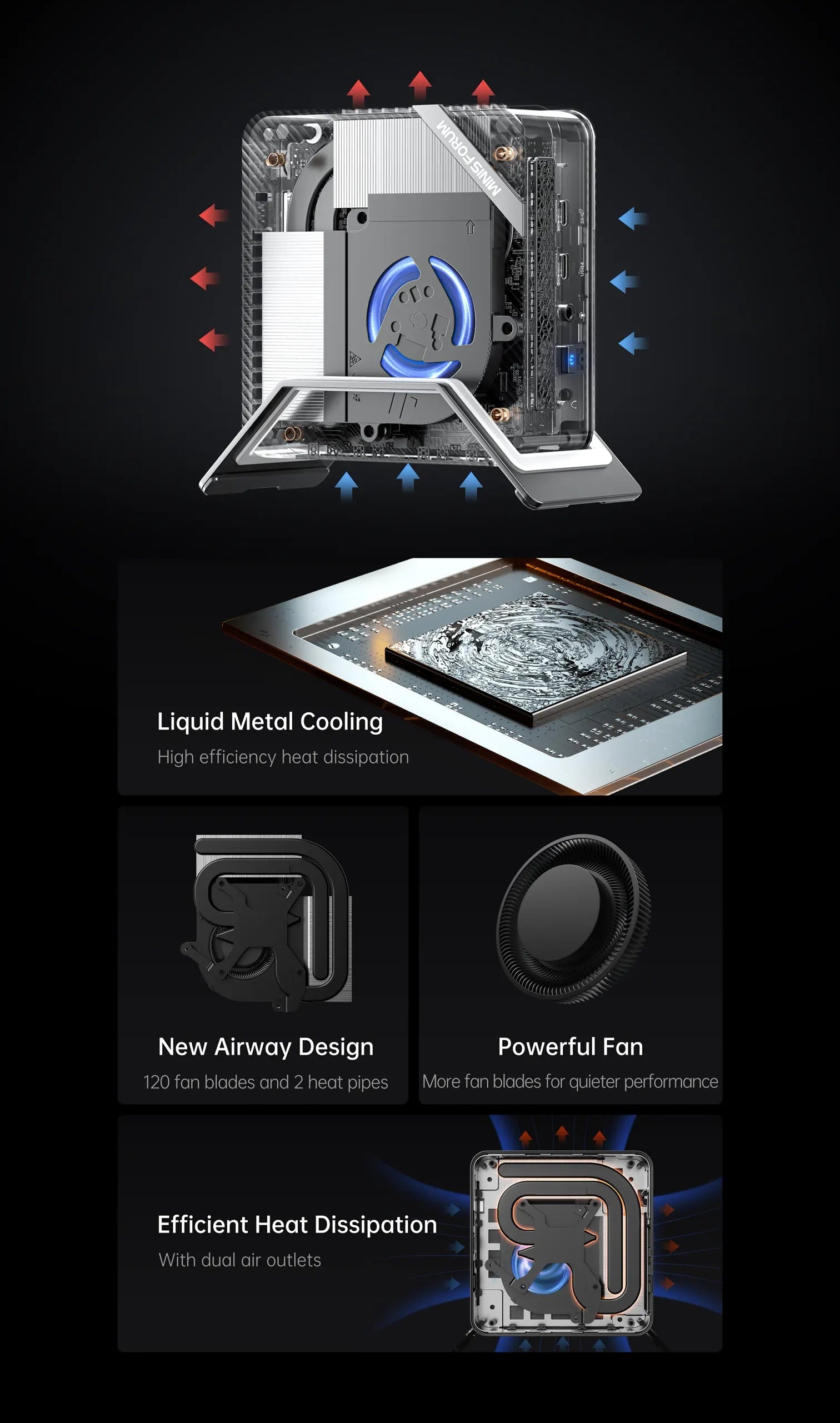

Excellent Thermal Performance

The thermal system allows the UM773 Lite to run at full load with relatively low temperatures and noise. The upgraded craftsmanship improves the stability and efficiency of liquid metal cooling. The liquid metal is able to transmit heat quickly. Furthermore, the smart fan with 120 blades can run at high RPM at a lower noise level.

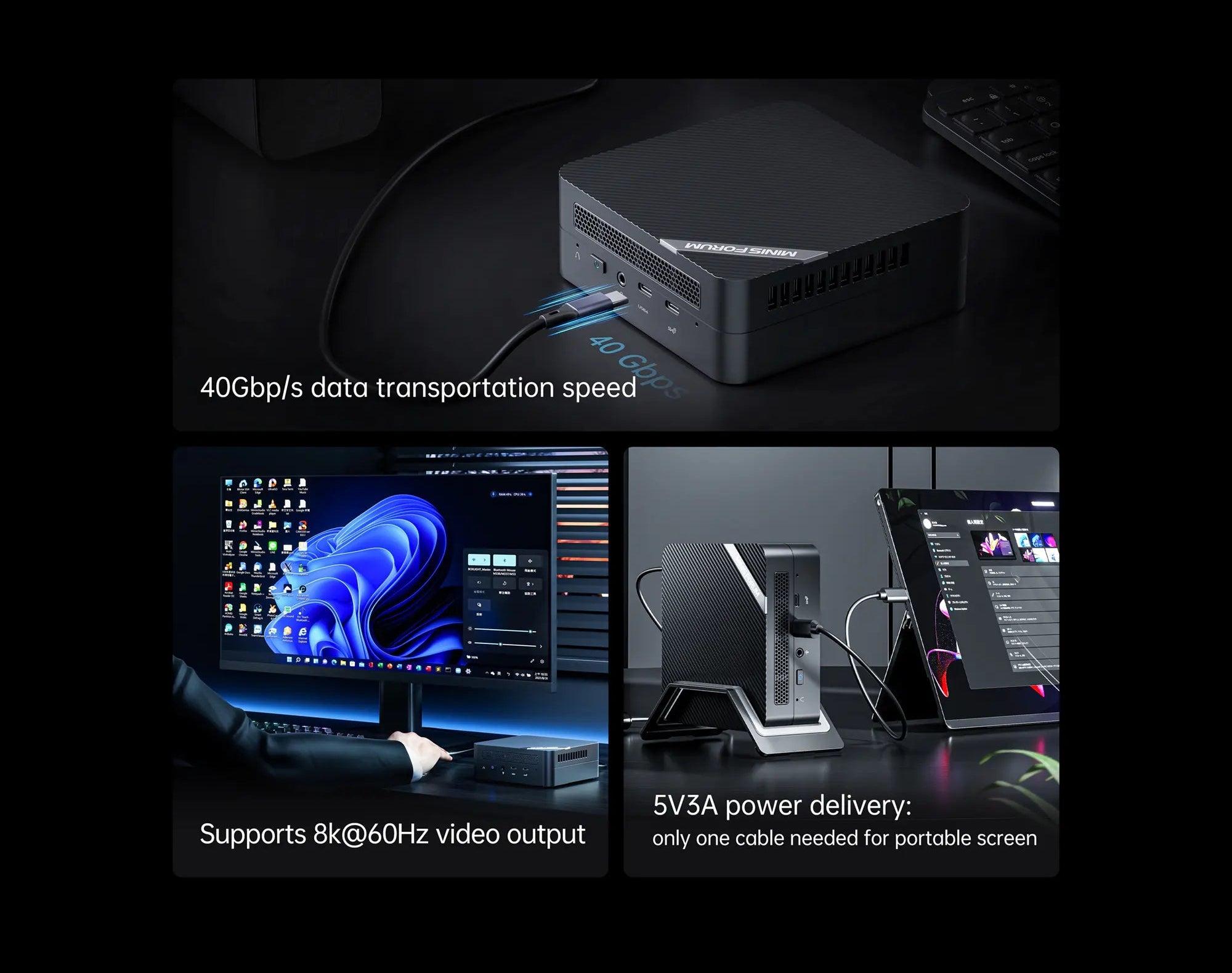

Fully Functional USB4 Port

The UM773 Lite is equipped with a fully functional USB4 port. This versatile port not only offers a data-transfer speed up to 40Gbps and 8K@60Hz display, but also supports portable monitor (5V3A power delivery).

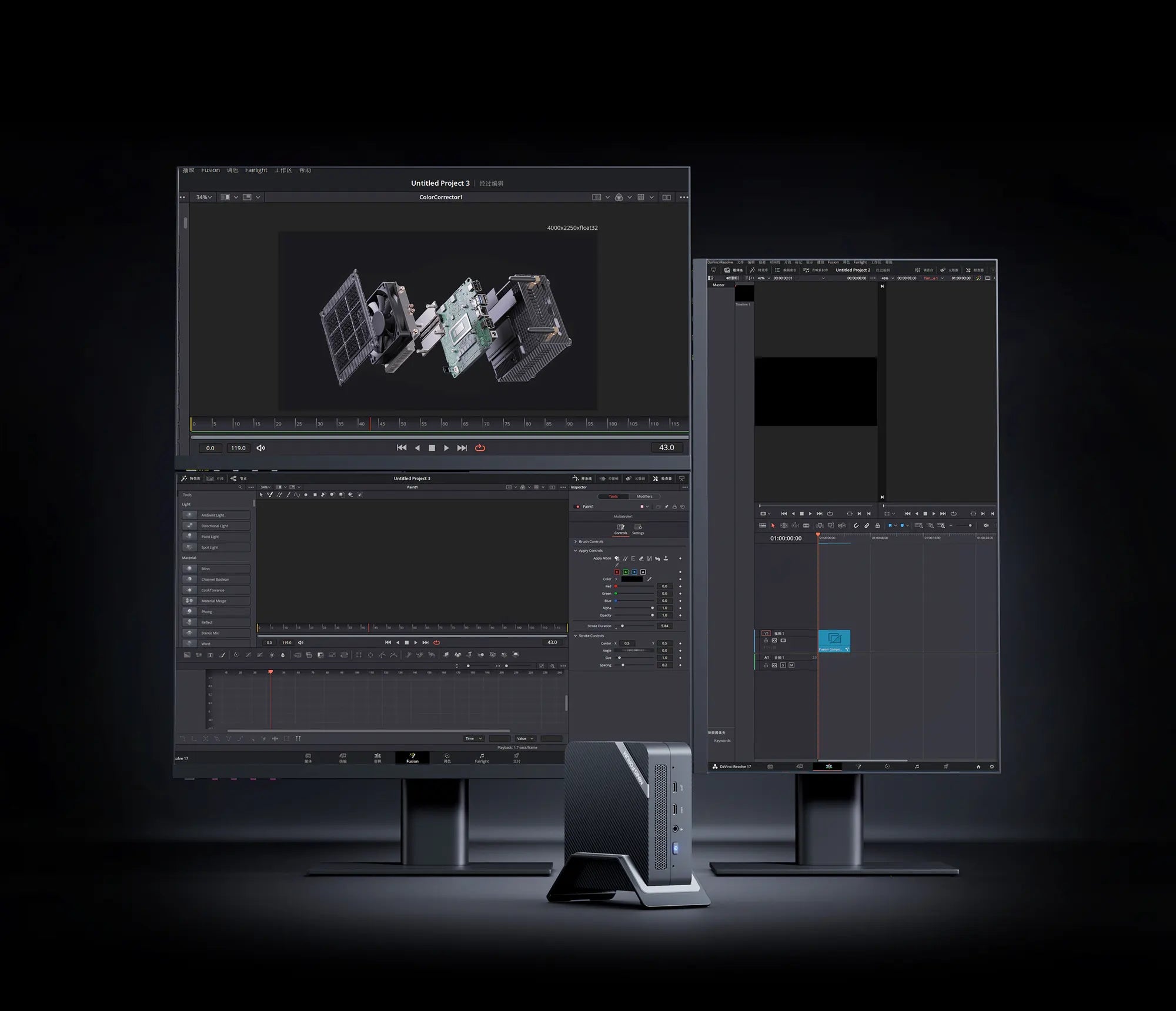

Triple 4K@60Hz Displays

The UM773 Lite can connect to three monitors at the same time and deliver a 4K@60Hz picture with great clarity for each monitor independently. The USB4 port can even support an amazing 8K@60Hz resolution.

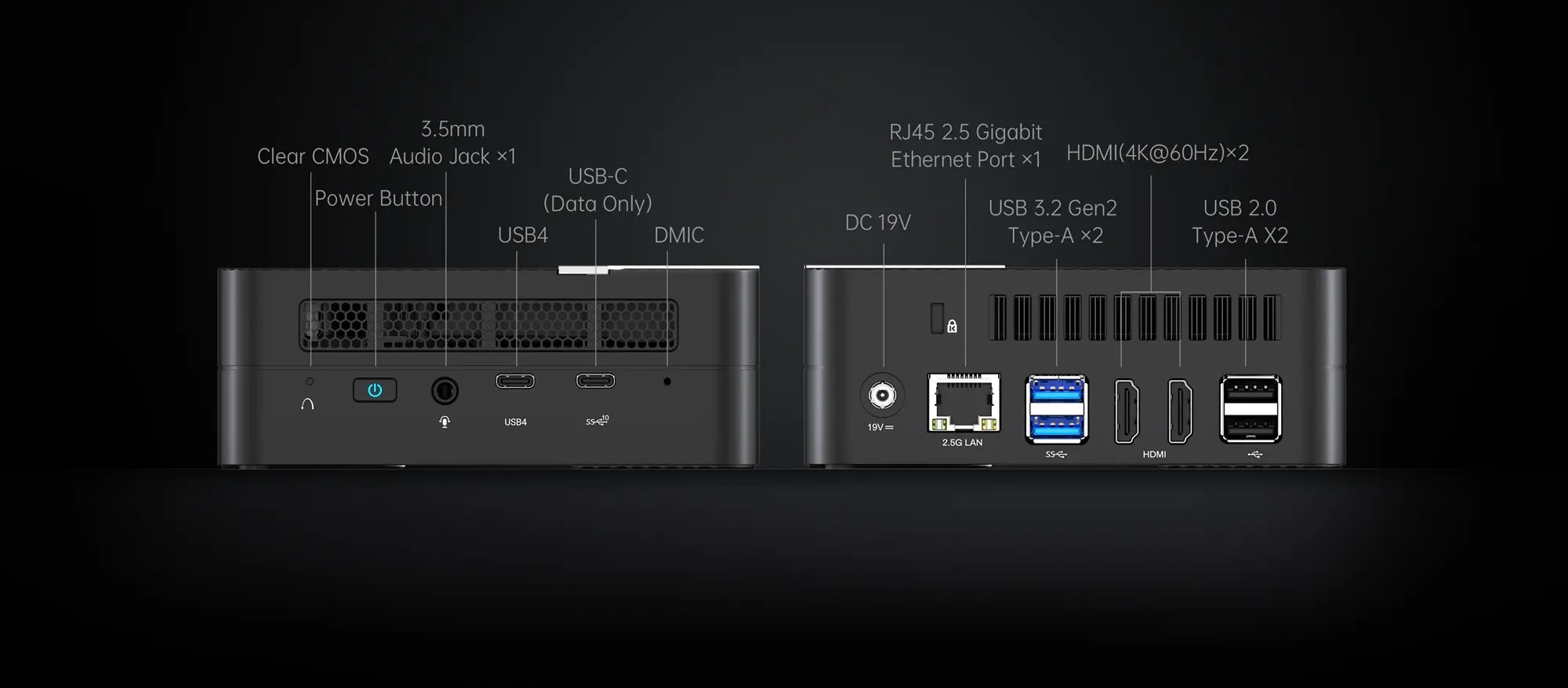

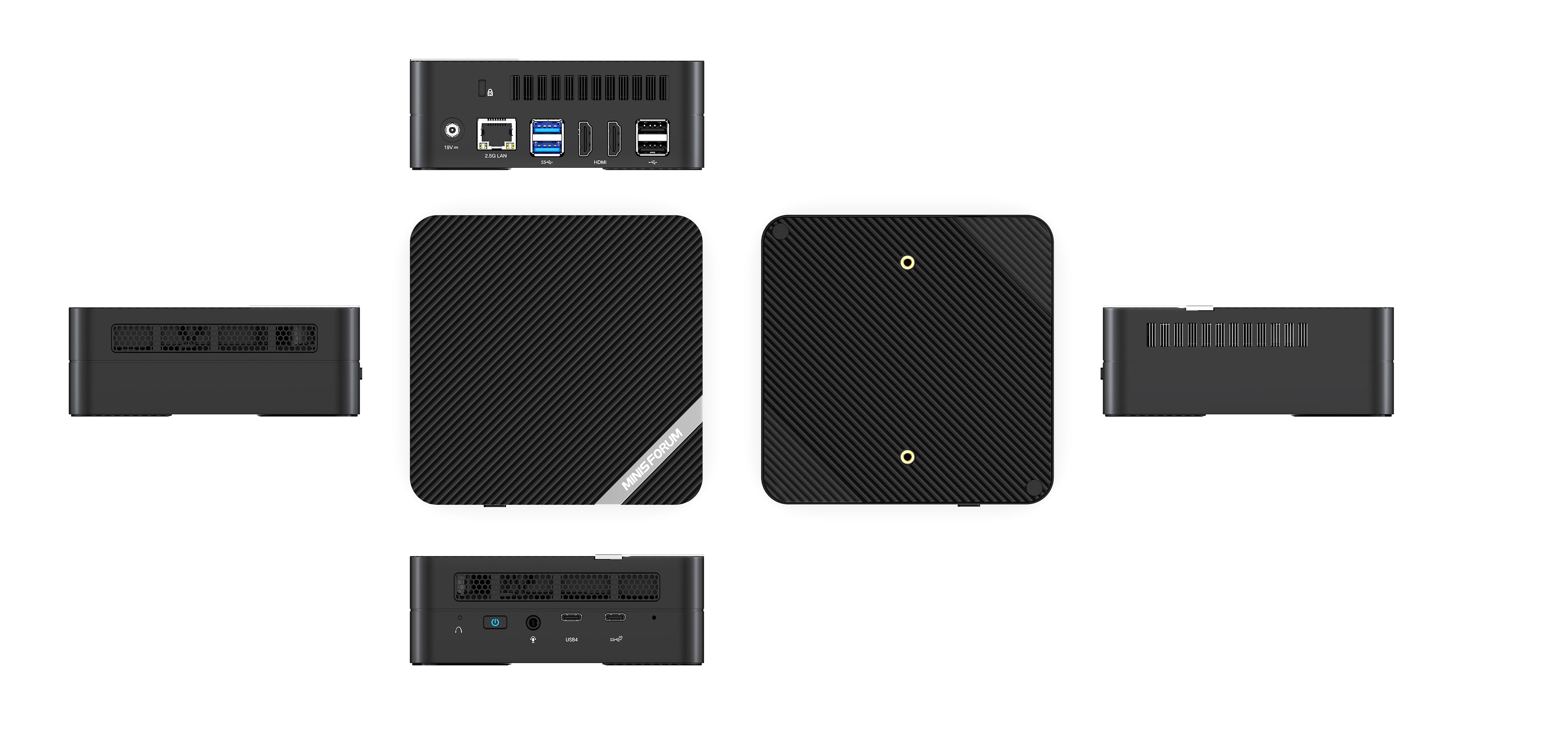

Ports & Buttons

The UM773 Lite packs full connectivity into a compact body. It has a fully functional USB4 port, four USB Type-A ports, two HDMI 4K@60Hz ports and one RJ45 2.5 Gigabit Ethernet port.

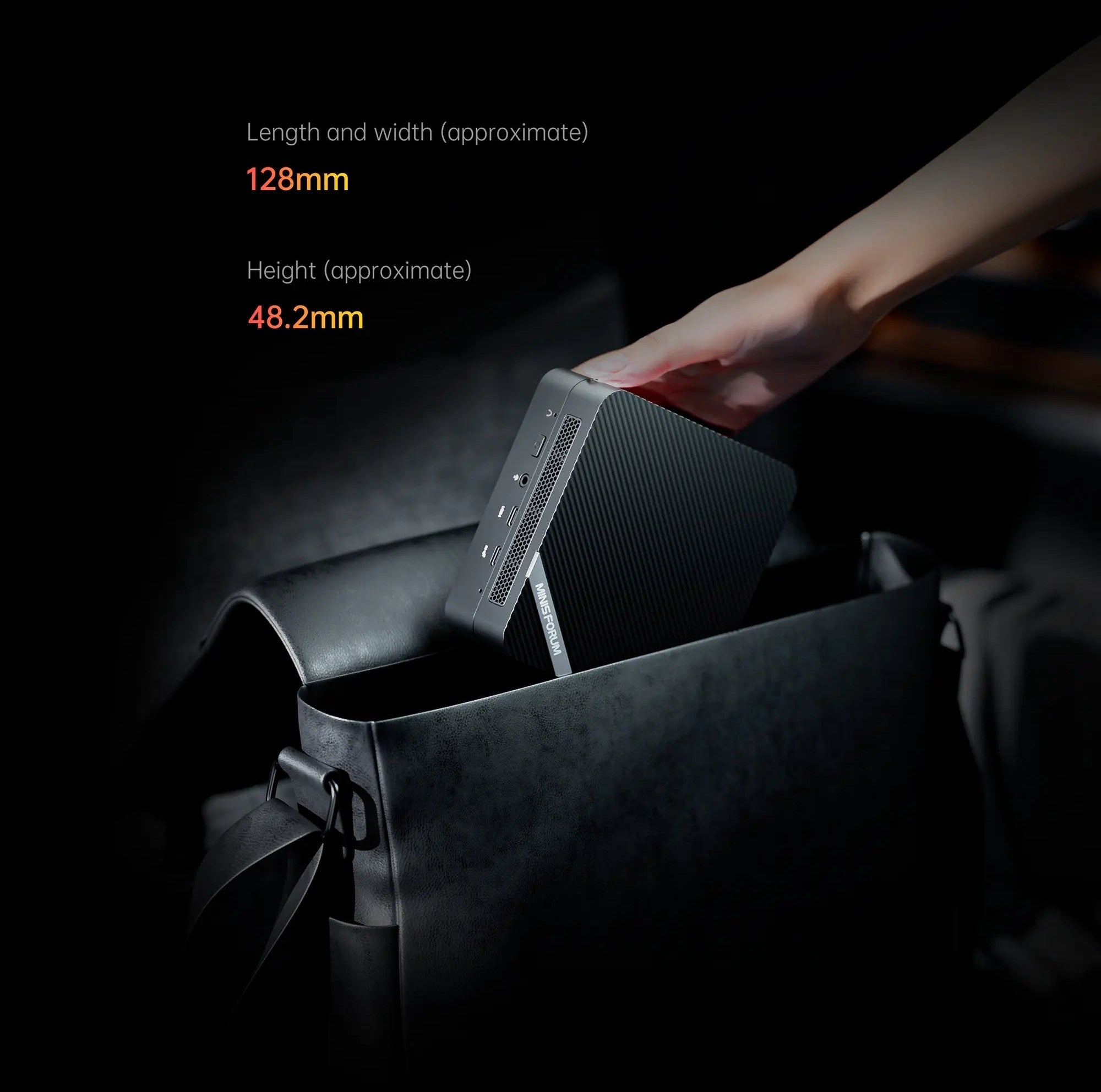

Compact & Portable

Measuring only 128mm*128mm*48.2mm, the UM773 Lite fits perfectly under the monitors, and can be easily packed in the briefcase during trips or commutes.

Latest AMD Ryzen™ 7000 Series CPU

The UM773 ME is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).

AMD Radeon™ 680M

The AMD Ryzen™ 7 7735HS integrates the AMD Radeon™ 680M graphics. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.

Versatile and Reliable

The UM773 ME offers unparalleled performance in both productivity and entertainment, making tasks, movie-watching, and gaming more enjoyable and efficient than ever before.

Speed Boost with USB4 port

The USB4 port on UM773 ME supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.

4K@60Hz Triple Display

Two HDMI ports at the rear of UM773 ME supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.

High-efficiency Thermal System

The UM773 ME adopts liquid metal to improve the thermal performance of the processor. This material has high thermal conductivity and can conduct more heat per unit time and unit area than other thermal materials. The thermal system also includes a 120-blade smart fan, heat pipes, and four air vents, they can elevates UM773 ME performance, keeping the temperature and the noise at a reasonable level.

Upgrade-friendly

The UM773 ME continues the upgrade-friendly design. The dual SODIMM slots for DDR5, M.2 2280 PCIe4.0 SSD slot and the 2.5-inch SATA 3.0 HDD slot are all available for further upgrade.

Latest AMD Ryzen™ 7000 Series CPU

The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).

AMD Radeon™ 680M

The AMD Ryzen™ 7 7735HS integrates the AMD Radeon™ 680M graphics. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.

Versatile and Reliable

The UM773 SE offers satisfying results in productivity and entertainment. Finishing office routines, watching films, and playing games are easier than ever.

Speed Boost with USB4 port

The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.

4K@60Hz Triple Display

Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.

High-efficiency Thermal System

The UM773 SE adopts liquid metal to improve the thermal performance of the processor. This material has high thermal conductivity and can conduct more heat per unit time and unit area than other thermal materials. The thermal system also includes a 120-blade smart fan, heat pipes, and four air vents, they can elevates UM773 SE performance, keeping the temperature and the noise at a reasonable level.

Upgrade-friendly

The UM773 SE continues the upgrade-friendly design. The dual SODIMM slots for DDR5, M.2 2280 PCIe4.0 SSD slot and the 2.5-inch SATA 3.0 HDD slot are all available for further upgrade.

Minisforum UM773 Lite / SE / ME

Processor

AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
(Total L3 Cache 16MB , Base Clock 3.2GHz , Up to 4.75GHz)

Graphics

AMD Radeon™ 680M (Graphics Frequency 2200 MHz)

Memory

DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)

Storage

M.2 2280 PCIe4.0 SSD

Storage Expansion

2.5 inch SATA HDD Slot × 1 (SATA 3.0 6.0Gb/s)

Wireless Connectivity

M.2 2230 WIFI Support (Wi-Fi,BlueTooth)

Video Output

HDMI (4K@60Hz) ×2

USB4 ×1

Audio Output

HDMI ×2

3.5mm Combo Jack ×1

Ports & Buttons

RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1

Power

DC 19V (adapter included)

System

Windows 11

Q1. How many memory modules are installed in the 16GB version?
Answer: Two 8GB memory modules. In the 32GB version, two 16GB memory modules are installed on the motherboard.

Q2. Specifications of SSD and RAM
Answer:
RAM: DDR5 4800 SODIMM
SSD: M.2 2280 PCIe4.0

Q3. Does the UM773 Lite/SE/ME barebones version have Wi-Fi and Bluetooth?
Answer: Yes, it has Wi-Fi and Bluetooth.

Q4. About shipment
Answer: Minisforum UK offers free shipping for customers in Ireland and the UK. For customers from other countries in Europe, please place your order at https://store.minisforum.de/.

Q5. Does the UM773 Lite/SE/ME have pre-installed Windows?
Answer: EXCEPT for the barebones version, all versions come with Windows 11 pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.

Q6. How to install Windows OS for the barebones version?
Answer: Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer keys for Windows OS.
https://www.minisforum.com/front/support
