Venus Series NAB7/NAB9
Intel® Core™ i7-12700H /Intel® Core™ i9-12900HK
Limited Time Discount
NPB7 ships in mid-May
Minisforum NAB9/NAB7/NAB6
Shipping calculated at checkout.
Minisforum NAB9/NAB7/NAB6
Sale price£299.00
Regular price£459.00 (/)
- NAB7/NAB9
- NAB6
- Specification
- FAQ
Powered by Intel 12th Gen Core
The NAB7 is equipped with the Intel Core™ i7-12700H processor. This CPU features 14 cores / 20 threads, and has a max turbo frequency of 4.7GHz.

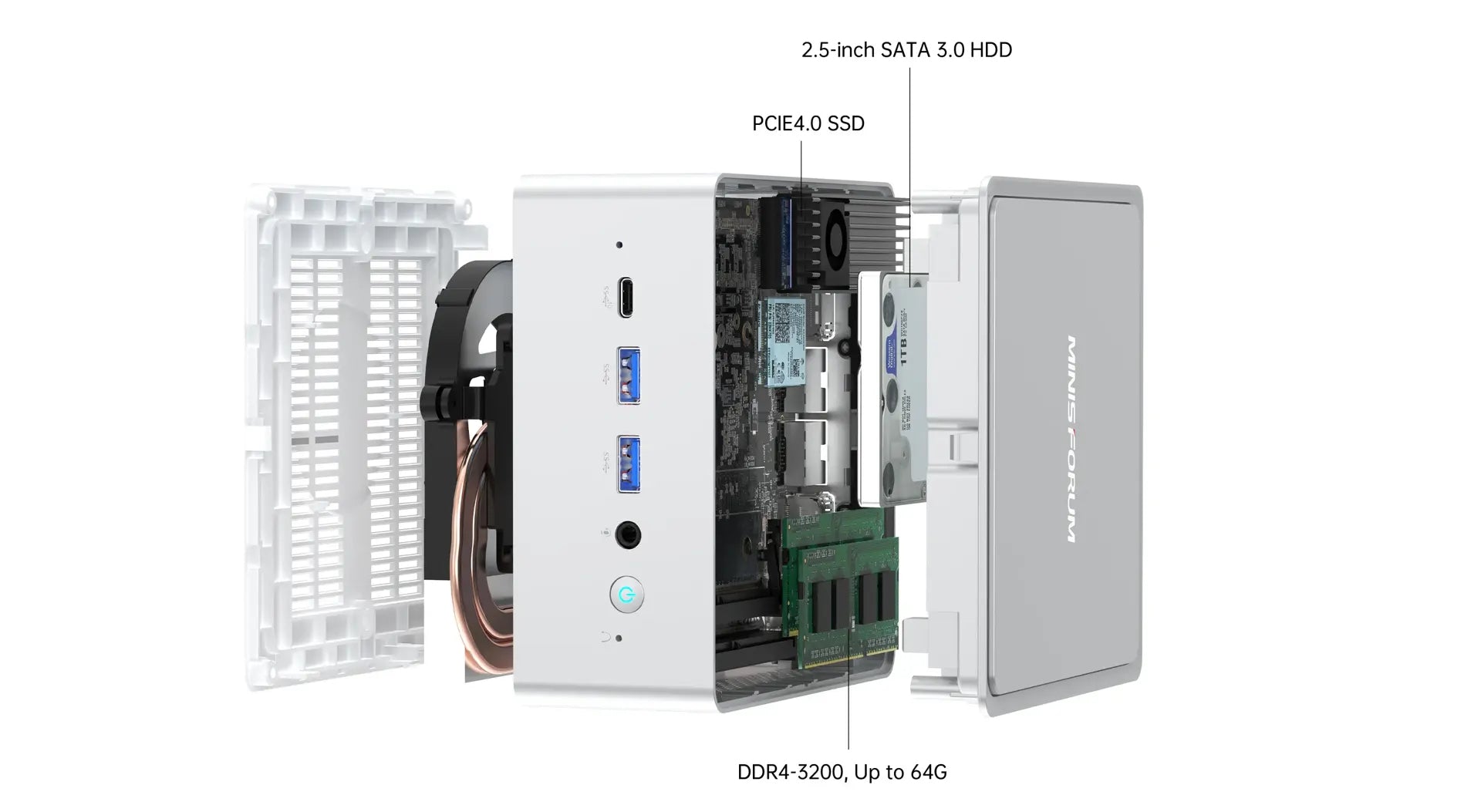

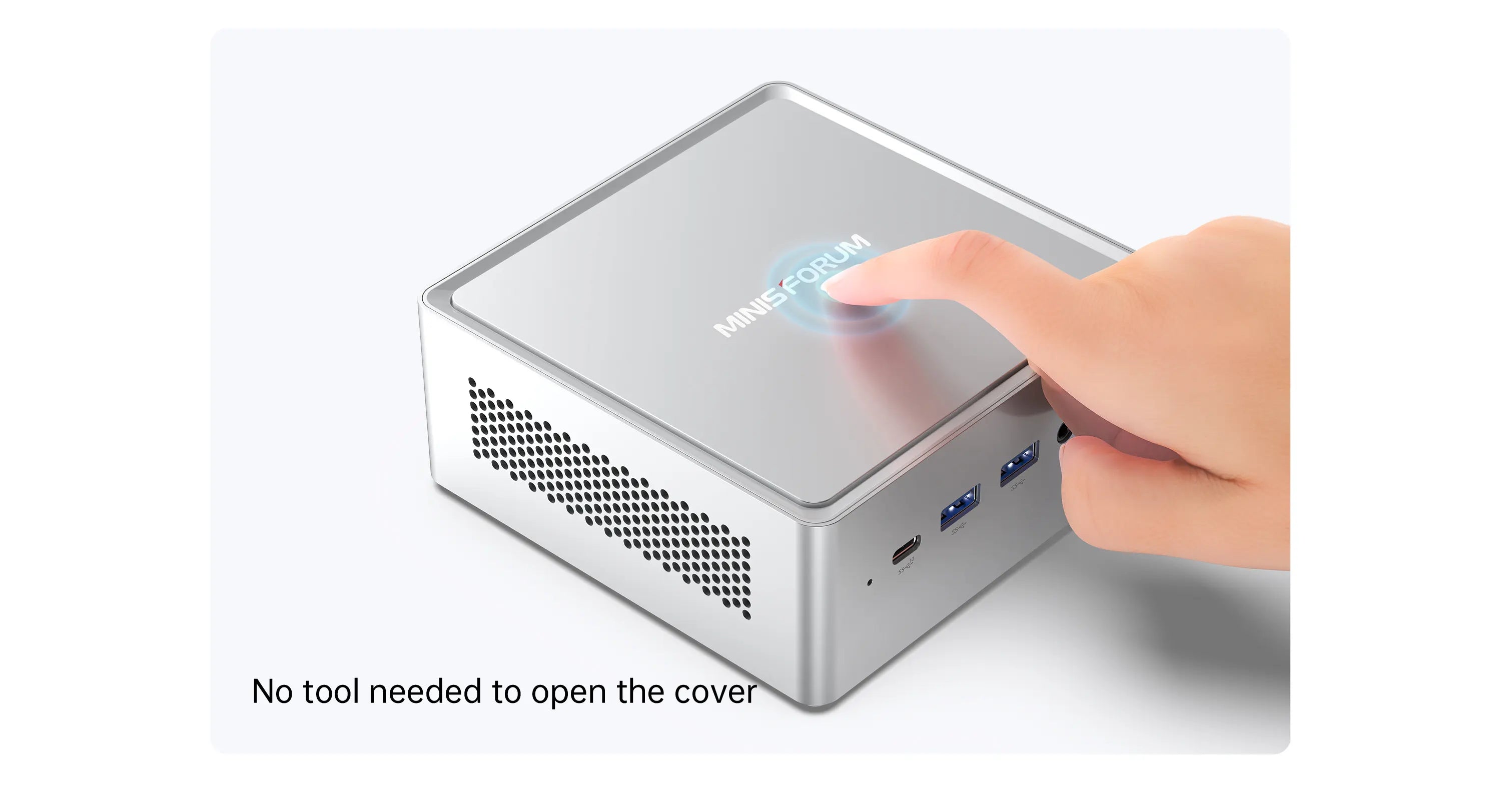

Easy to Upgrade
To upgrade the firmware, you only need to press and open the top cover.

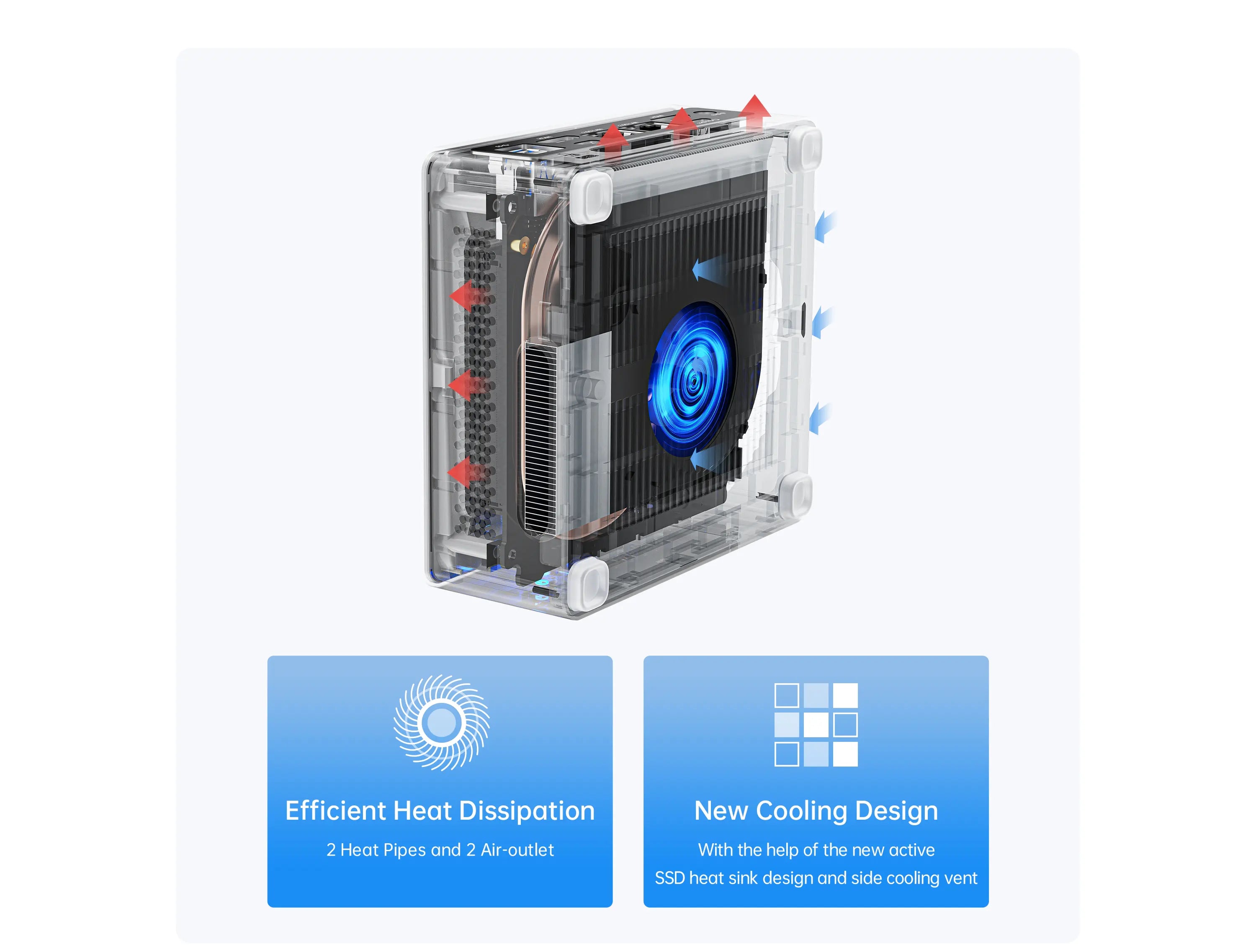

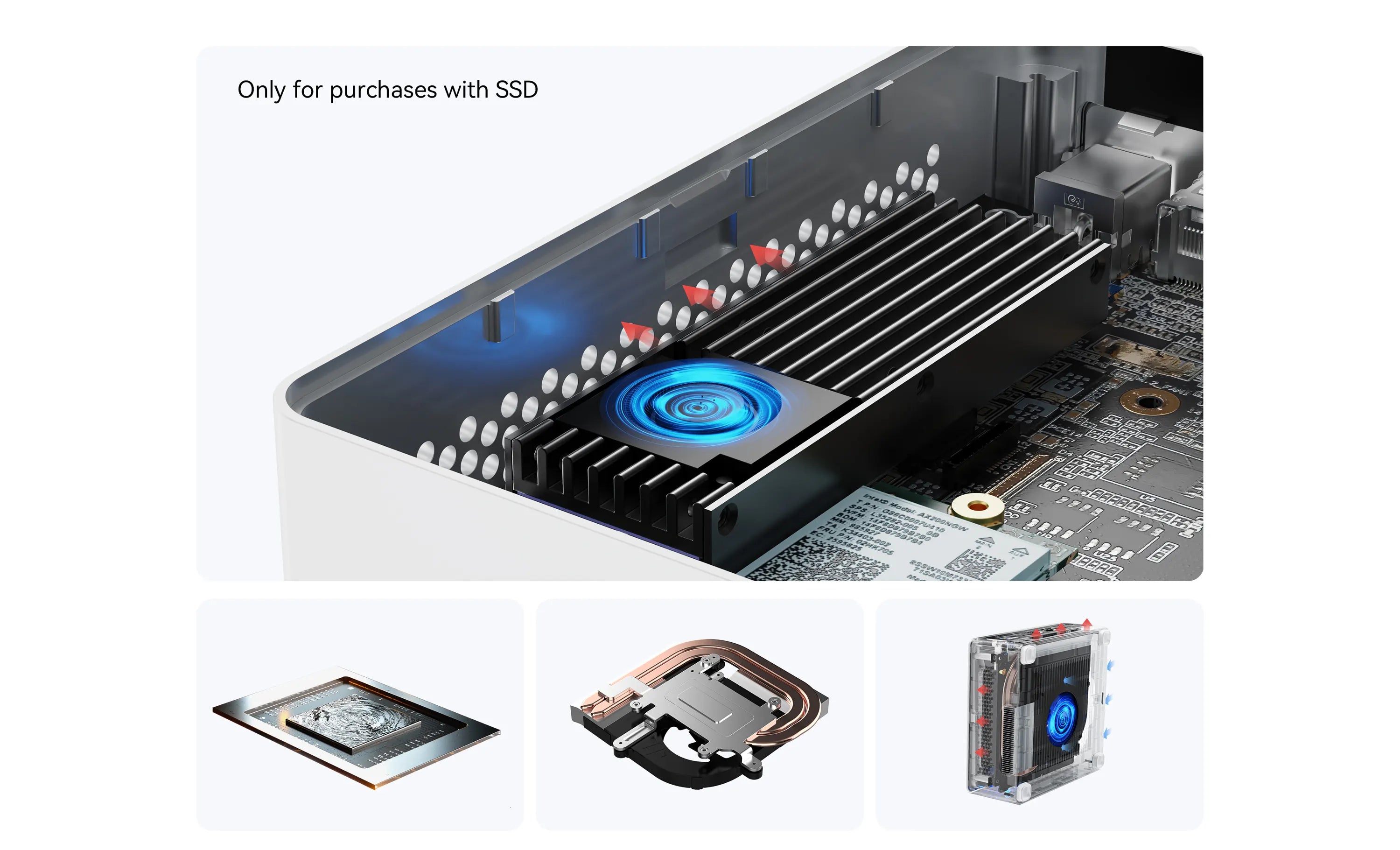

New Thermal System

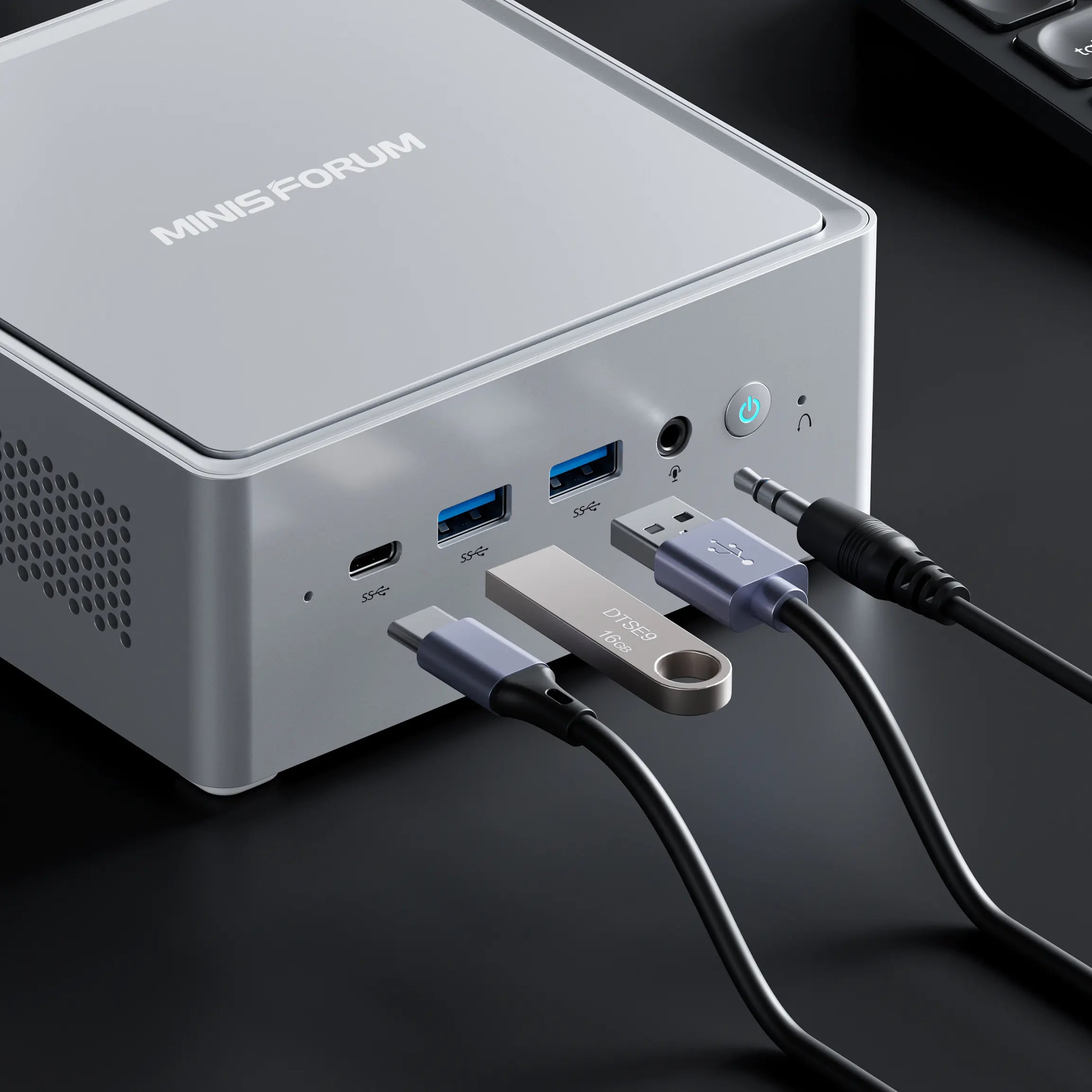

Packed of I/O
Packed of I/O

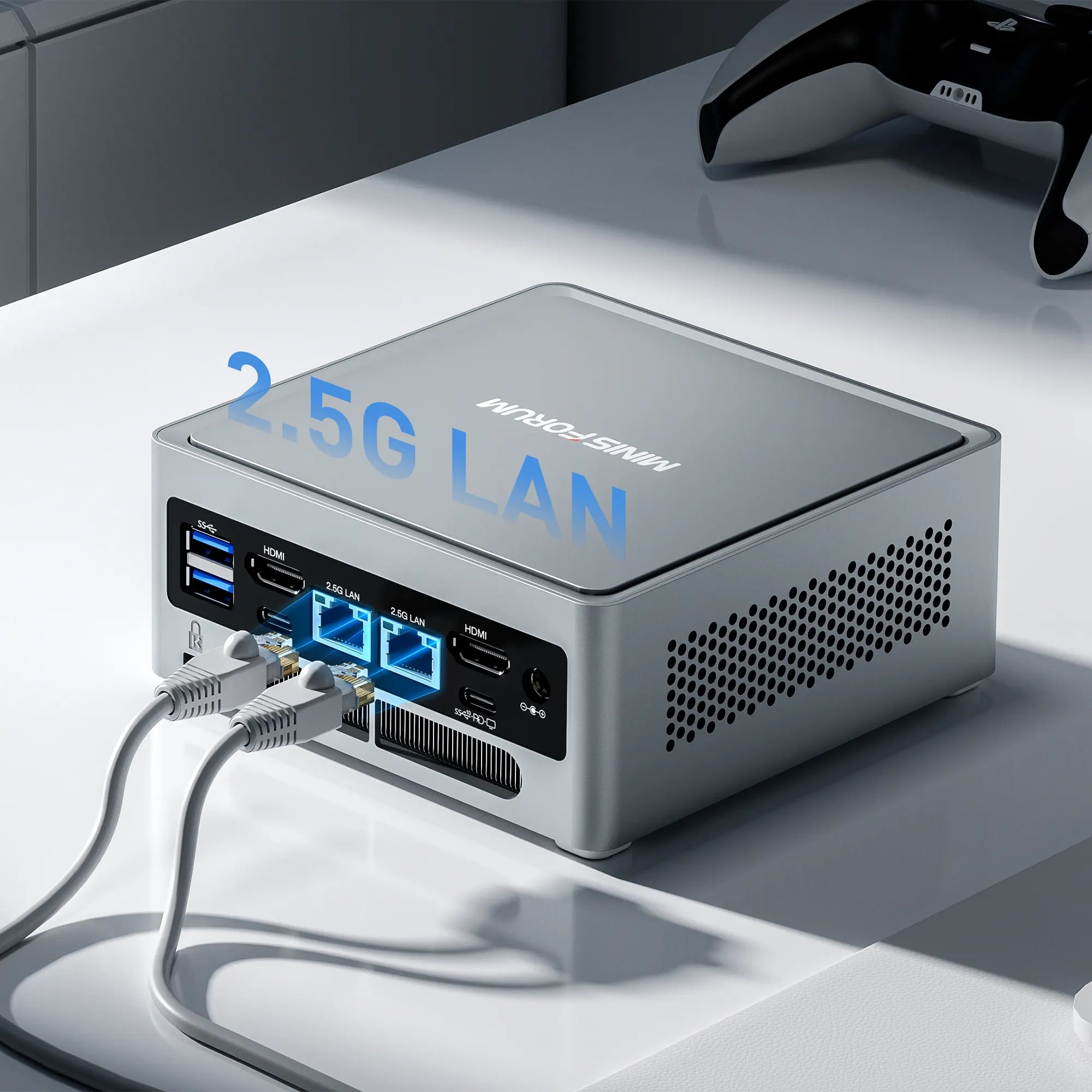

2.5 Gbps Ethernet Ports × 2

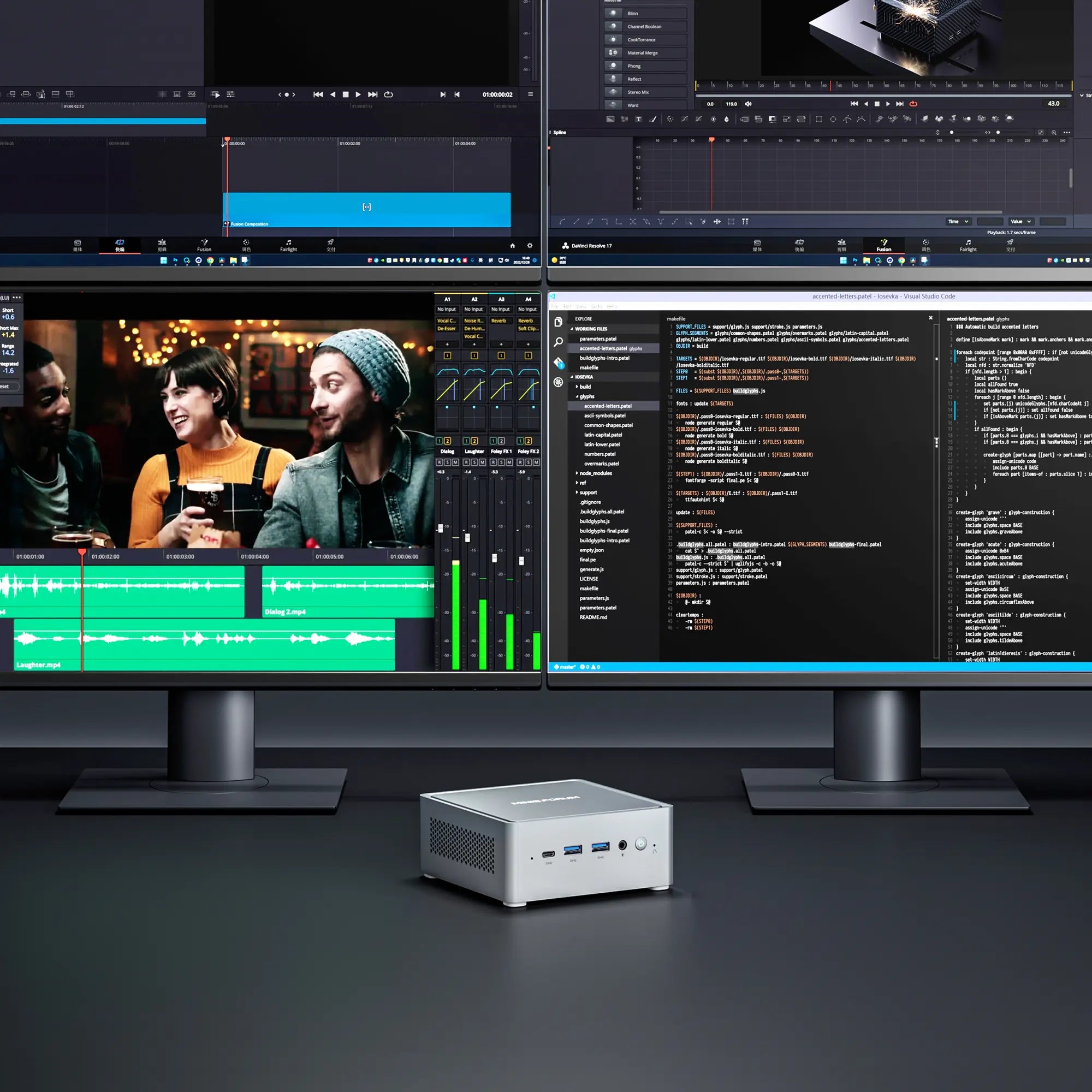

Quad 4K@60Hz Display
5V3A Power Delivery
Powered by Intel 12th Gen Core
The NAB6 is equipped with the Intel Core™ i7-12650H processor. This CPU features 10 cores / 16 threads, and has a max turbo frequency of 4.7GHz.
Easy to Upgrade
To upgrade the firmware, you only need to press and open the top cover.
New Thermal System
Packed of I/O
Packed of I/O
2.5 Gbps Ethernet Ports × 2
Quad 4K@60Hz Display
5V3A Power Delivery
New Product Venus Series NAB9
MINISFORUM Venus Series NAB9
Processor
Intel® Core™ i9-12900HK Processor, 14 Cores/20 Threads
(24M Cache, up to 5.0 GHz)
Graphics
Intel® Iris® Xe Graphics
Memory
DDR4 8GB×2 Dual channel (SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 512GB PCIe4.0 SSD(up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
① HDMI (4K@60Hz) ×2, ② USB-C(4K@60Hz) ×2
Audio Output
HDMI ×2, 3.5mm Combo Jack ×1

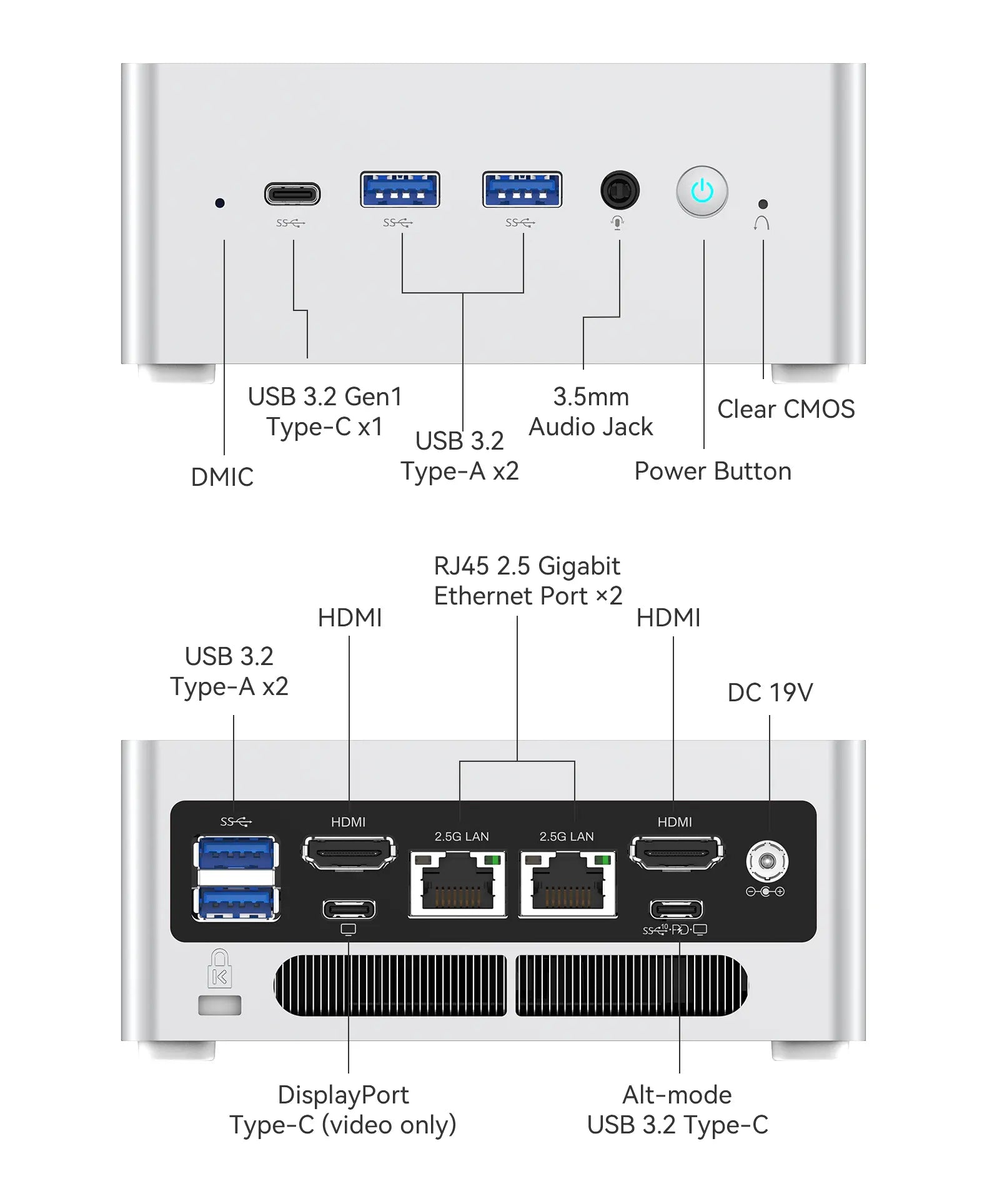

Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1(Data Only, In Front)
USB3.2 Type-C ×1(DP Only)
USB3.2 Type-C ×1(Alt DP and Data and PD Out)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V(Adapter Included)
System
Windows 11
Venus Series NAB7
MINISFORUM Venus Series NAB7
Processor
Intel® Core™ i7-12700H Processor, 14 Cores/20 Threads
(24M Cache, up to 4.70 GHz)
Graphics
Intel® Iris® Xe Graphics
Memory
DDR4 8GB×2 Dual channel (SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 512GB PCIe4.0 SSD(up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
① HDMI (4K@60Hz) ×2, ② USB-C(4K@60Hz) ×2
Audio Output
HDMI ×2, 3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1(Data Only, In Front)
USB3.2 Type-C ×1(DP Only)
USB3.2 Type-C ×1(Alt DP and Data and PD Out)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V(Adapter Included)
System
Windows 11
Venus Series NAB6
MINISFORUM Venus Series NAB6
Processor
Intel® Core™ i7-12650H Processor, 10 Cores/16 Threads
(24M Cache, up to 4.70 GHz)
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors (Graphics Frequency 1.40 GHz)
Memory
DDR4 8GB×2 Dual channel (SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 512GB PCIe4.0 SSD(up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
① HDMI (4K@60Hz) ×2, ② USB-C(4K@60Hz) ×2
Audio Output
HDMI ×2, 3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1 (Data Transfer, Front)
USB3.2 Type-C ×1(DisplayPort)
USB3.2 Type-C ×1(DisplayPort, Data Transfer)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V(Adapter Included)
System
Windows 11
Venus Series NPB7/NPB5
MINISFORUM Venus Series NPB7/NPB5
NPB7 Processor
Intel® Core™ i7-13700H Processor, 14 Cores/20 Threads
(24M Cache, up to 5.0 GHz)
NPB7 Graphics
Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.50 GHz)
NPB5 Processor
Intel® Core™ i5-13500H Processor, 12 Cores/16 Threads
(18M Cache, up to 4.7 GHz)
NPB5 Graphics
Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.45 GHz)
Memory
DDR5 Dual channel (SODIMM Slots×2, up to 32GB)
Storage
M.2 2280 512GB PCIe4.0 SSD (up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.2)
Video Output
HDMI (4K@60Hz) ×2
USB4 (8K@60Hz)×2
Audio Output
HDMI ×2
Audio Jack ×1
Ports & Buttons
RJ45 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-A Port ×2 (Rear)
USB4 Port ×2 (Rear)
USB3.2 Gen2 Type-A Port ×2 (Front)
USB3.2 Gen2 Type-C ×1 (Data Transfer)
DC Jack ×1
HDMI ×2
Audio Jack ×1
DMIC ×1
Clear CMOS ×1
Power
DC 19V(Adapter Included)
System
Windows 11
1. Official Support Page for NPB7/NAB7/NAB6/NAB9
https://www.minisforum.com/front/support/75/NAB5/6
2. Brand of SSD and RAM in the NPB7/NAB7/NAB6/NAB9
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3. Do you have a warranty on the NPB7/NAB7/NAB6/NAB9?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.
4. What ethernet chipset does NPB7/NAB7/NAB6 have?
The NAB6/NPB7/NPB5 uses intel i225-v or intel i226-v.
5. Does NPB7/NAB7/NAB6/NAB9 have a heatsink for SSD?
Please note that:
- NAB6: The barebones version (without RAM and SSD) offers a heatpad for the SSD. Versions with SSD offers an active heatsink (with a fan) for the SSD.
- NPB7: All versions offer an active heatsink (with a fan) for the SSD (including the barebones version).
6. Where do you ship to?
We offer free shipping for customers in the UK and Ireland.
Learn more about our shipping policy.
For customers in Europe, please place your order in our branch stores https://store.minisforum.de/.
7. What's the maximum resolution? How many monitors can be connected at the same time?
Up to four monitors can be connected at the same time with a maximum resolution of 8K@60Hz.
8. Can I use the USB-C port to power up the NPB7NAB6?
The USB-C port on the NAB6/NPB7/NPB5 can not be used as a power supply port. Please use the DC19V power supply.
9. What's the spec of Wi-Fi and Bluetooth of NPB7/NAB7/NAB6?
Wi-Fi 6E
Bluetooth 5.2
10. Does it support eGPU?
The NPB7/NAB7/NAB9 does not support eGPU.
11. Does the NAB6/NPB7/NAB7/NAB9 have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.
12. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer keys for the Windows OS.
https://www.minisforum.com/front/support
