Minisforum MS-A1
Shipping calculated at checkout.
Powerful

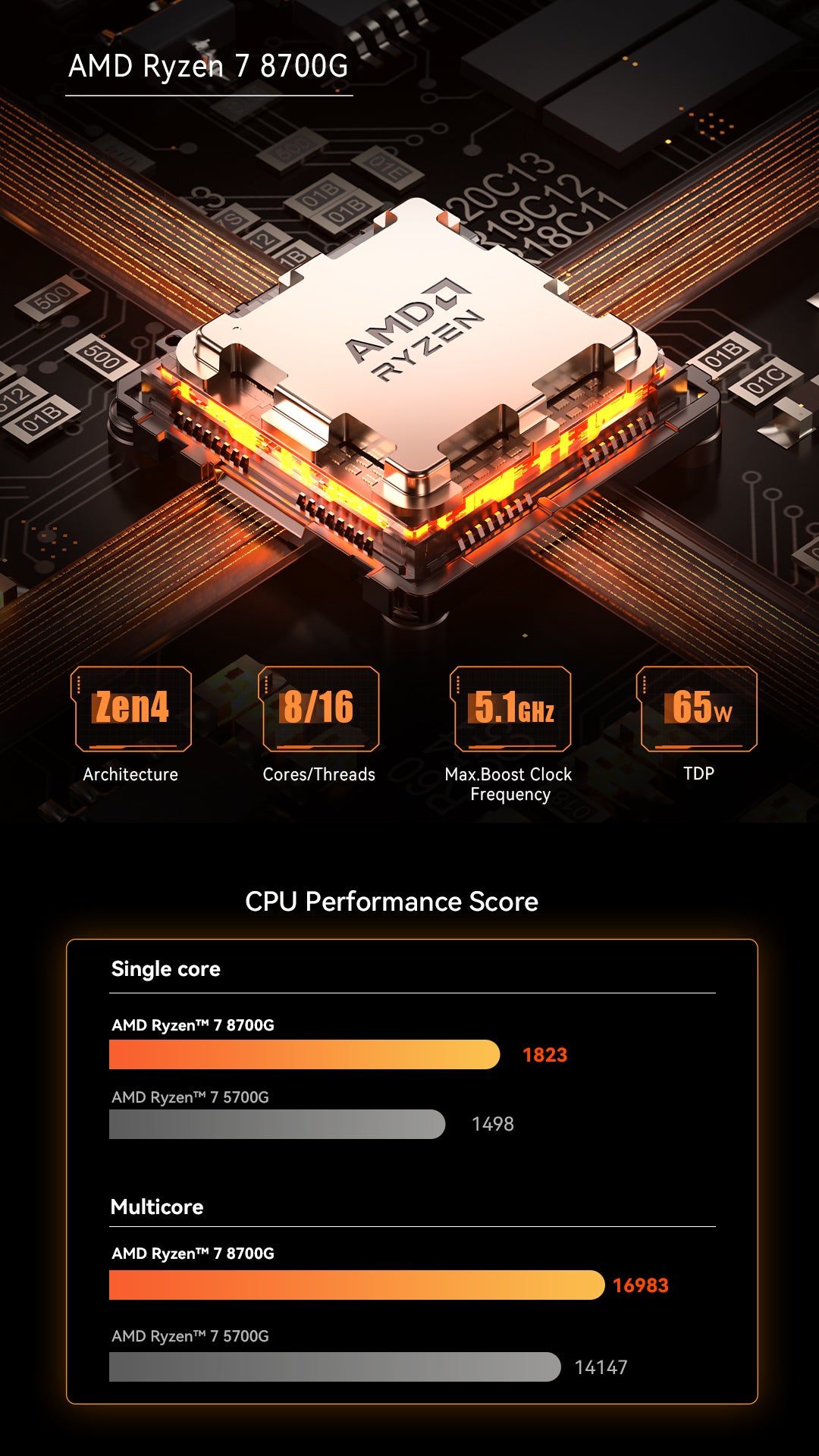

AMD Ryzen™ 7 8700G

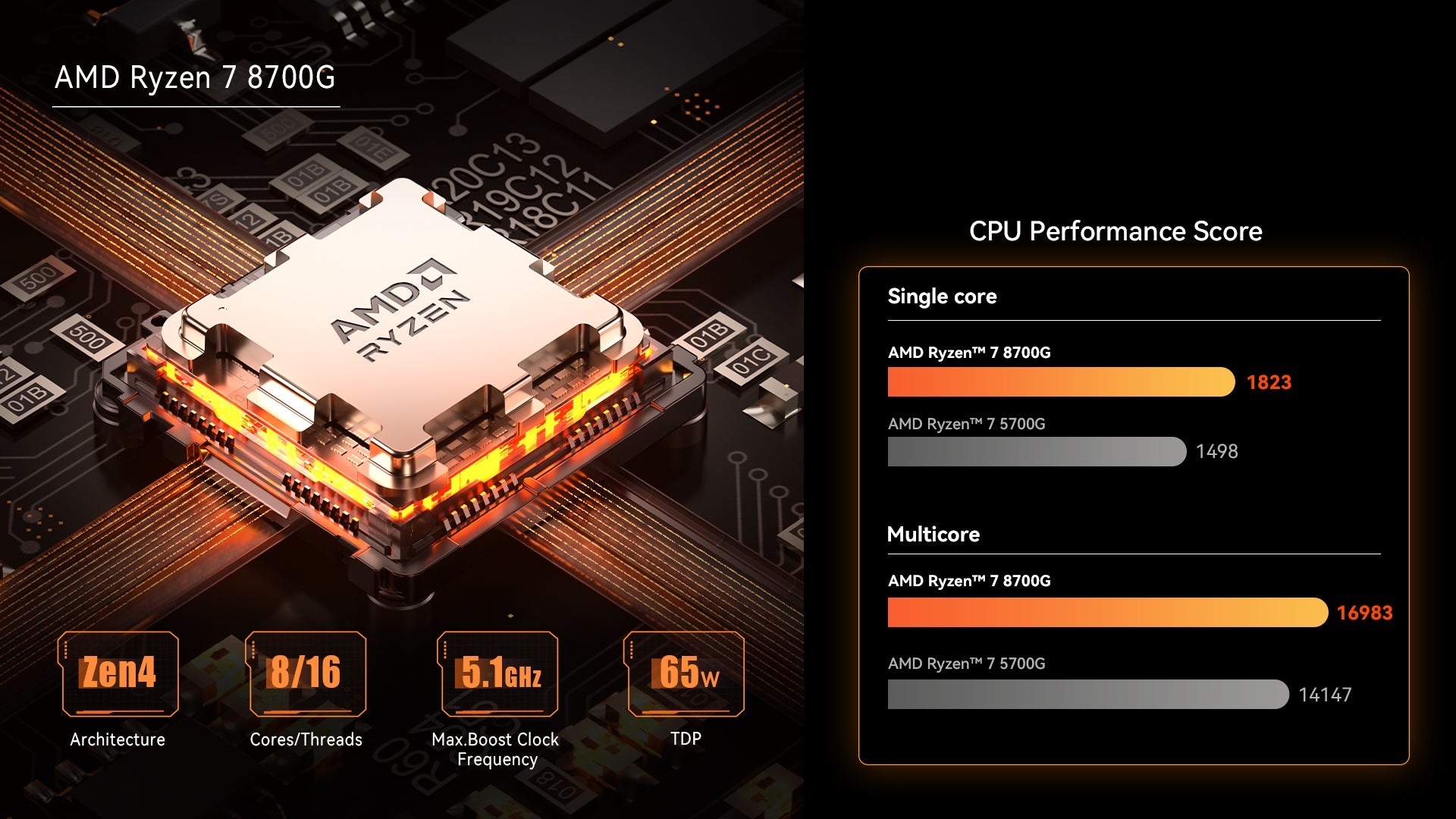

MS-A1 is equipped with the AMD Ryzen™ 7 8700G desktop processor, based on Zen4 architecture, featuring 8 cores and 16 threads, the max.boost clock frequency of 5.1GHz, and a 65W TDP, delivering unparalleled performance.

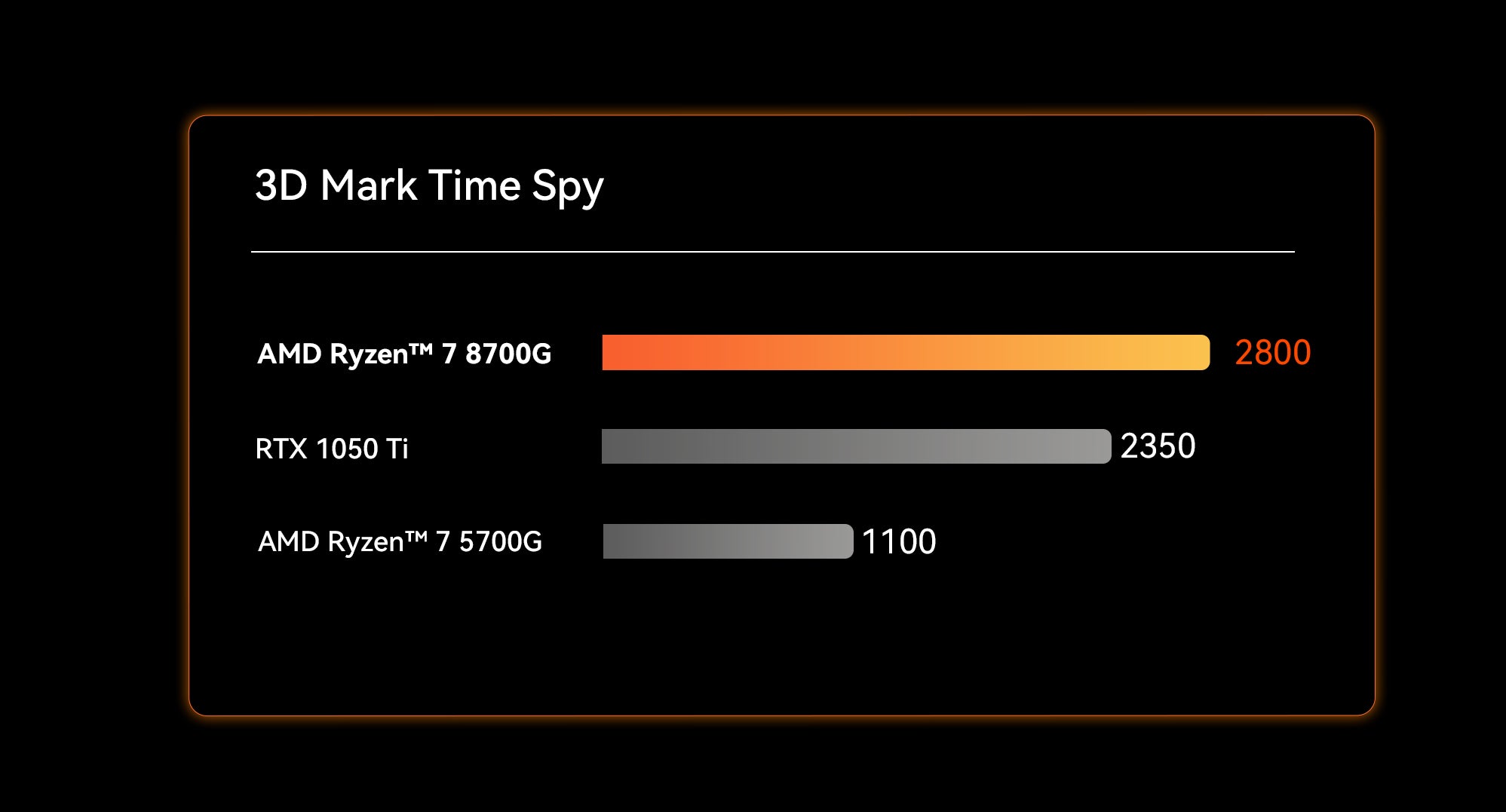

It integrates the AMD Radeon™ 780M graphics card, with 12 GPU cores, a graphics card frequency of 2900MHz, effortlessly meeting graphics and gaming requirements.
MS-A1 features a built-in dedicated NPU unit, offering a maximum NPU computing power of 16TOPS, making it the first desktop processor to include a specialized AI Neural Processing Unit (NPU).
*CPU removable
Compatible with the new AMD AM5 platform, the CPU is removable up to AMD Ryzen™ 7 PRO 8700G and the motherboard has a longer lifecycle to provide sustainable upgrades for future CPU generations.
Excellent
Cold Wave Pro cooling system
Employing dual-fan 4-heat pipe cooling, effectively reducing device temperature, ensuring stable performance release, its noise levels can go as low as 37 dB, providing a quieter working environment.
Connection
High-speed Network Ports

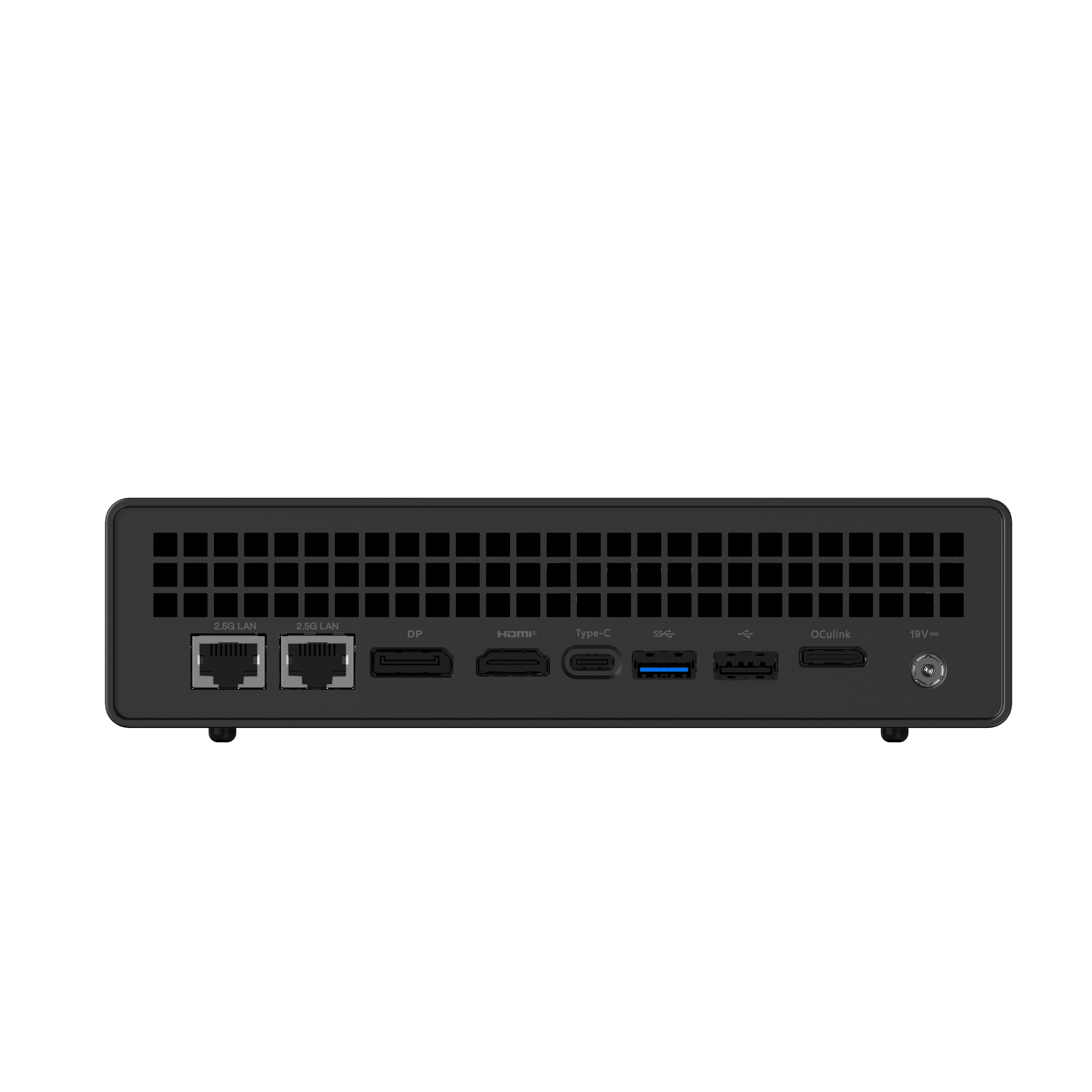

MS-A1 comes with two 2.5 Gbps RJ45 LAN ports and two USB 4 ports, offering an Ethernet total speed of up to 40Gbps. Additionally, it is equipped with an Oculink port, enabling fast data exchange and file transfers while also accommodating evolving technological and device requirements.

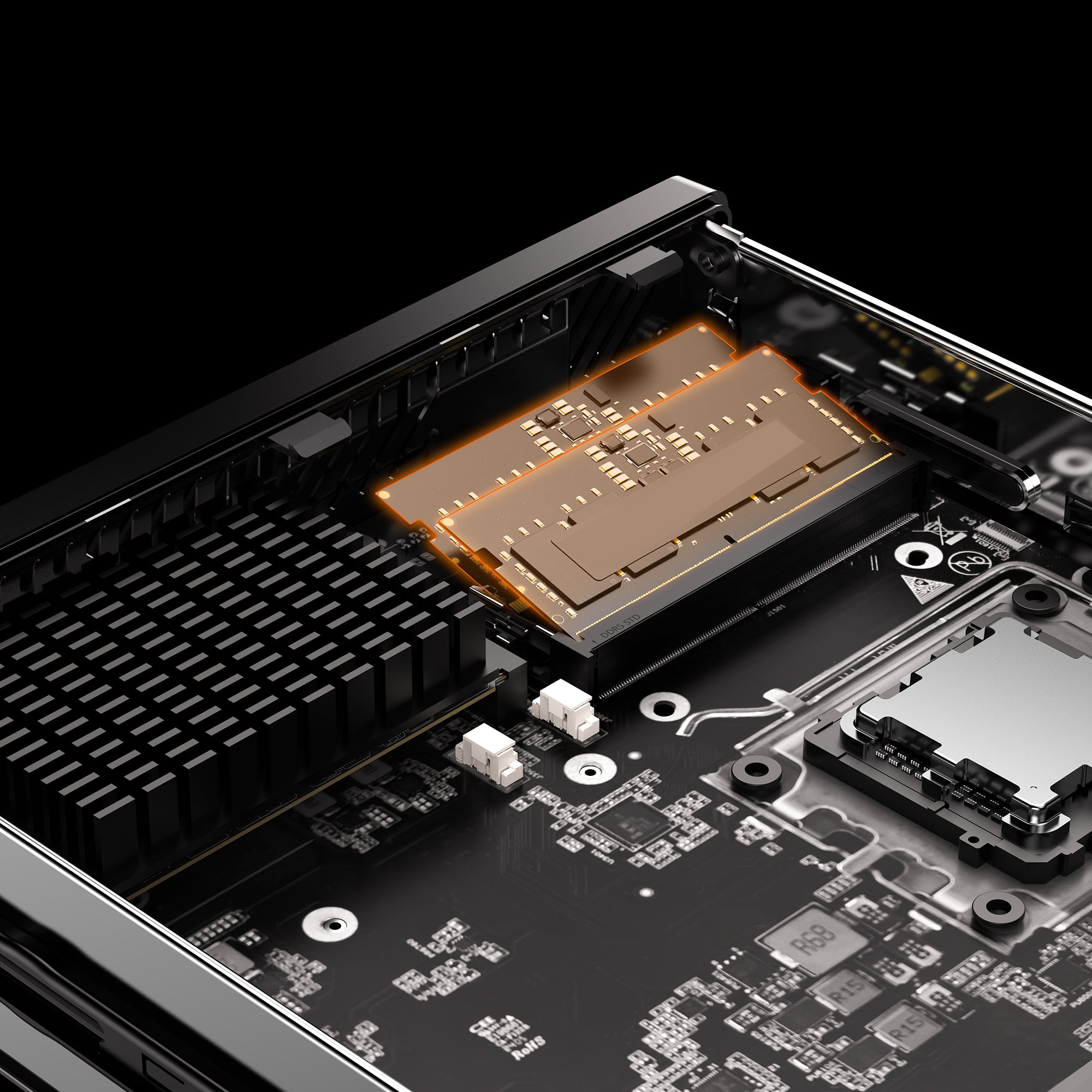

Extra-large storage
Dual-channel DDR5 memory supports speeds of up to 5200MHz and up to 96GB, enabling users to achieve fast and efficient multitasking capabilities.

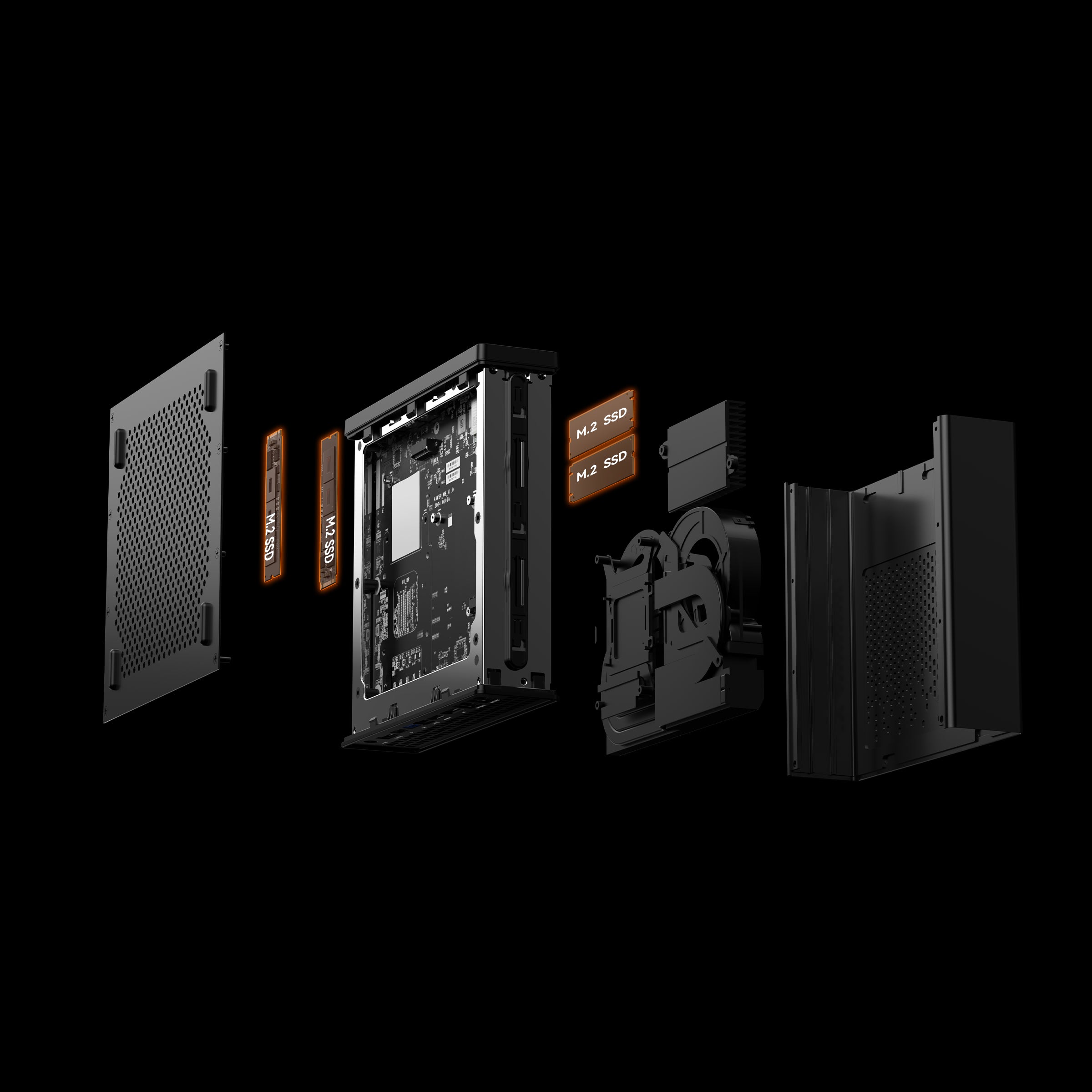

Extra-large storage

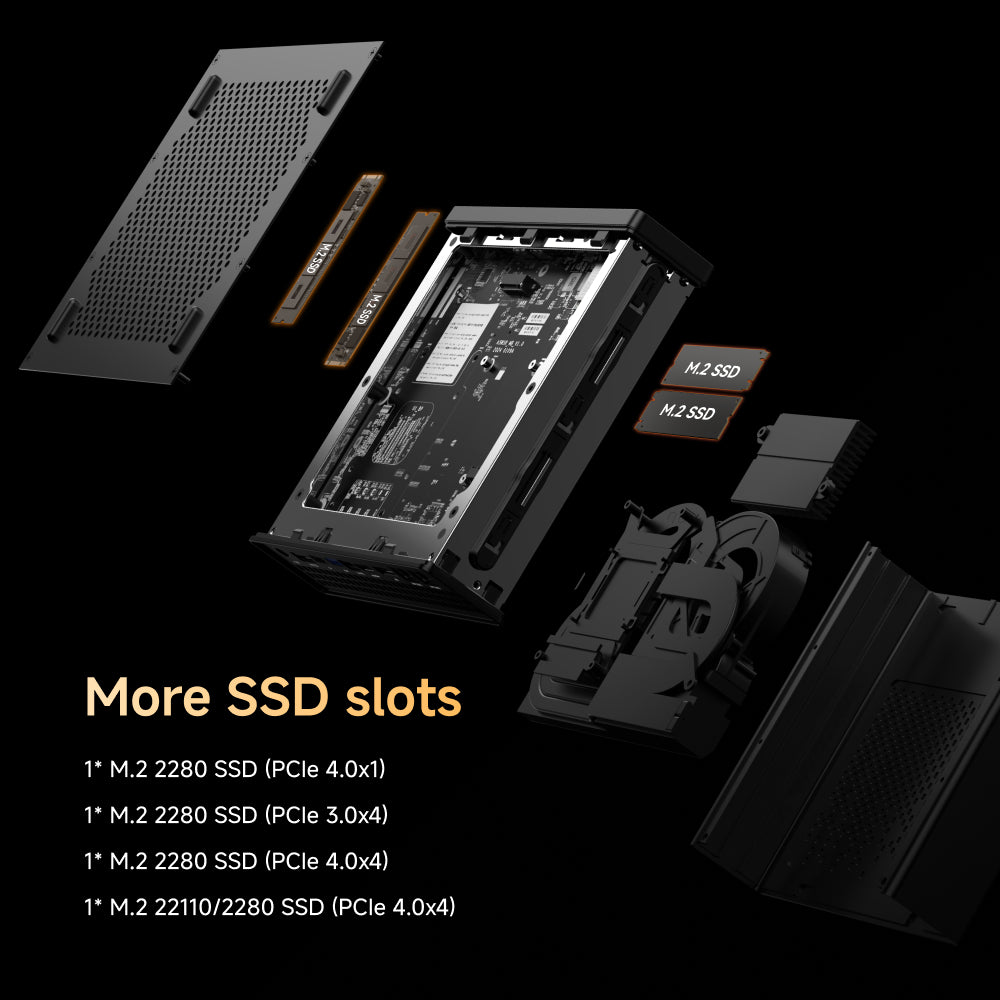

The MS-A1 features 4 M.2 PCIe 4.0 NVMe SSD slots with transfer speeds of up to 7000MB/s. Its ample expansion slots allow for a maximum total capacity of 16TB, meeting the extensive storage needs of creative and audiovisual professionals.
*Only Raphael, Phoenix and Granite Ridge architecture CPUs support 4 NVME SSDs.
Support URL>>MS-A1 notes
8K
Equipped with full-featured video output ports for HDMI2.1, DP2.0 and USB4, the MS-A1 connects up to three 8K displays simultaneously, making it quick to build an efficient multitasking office.

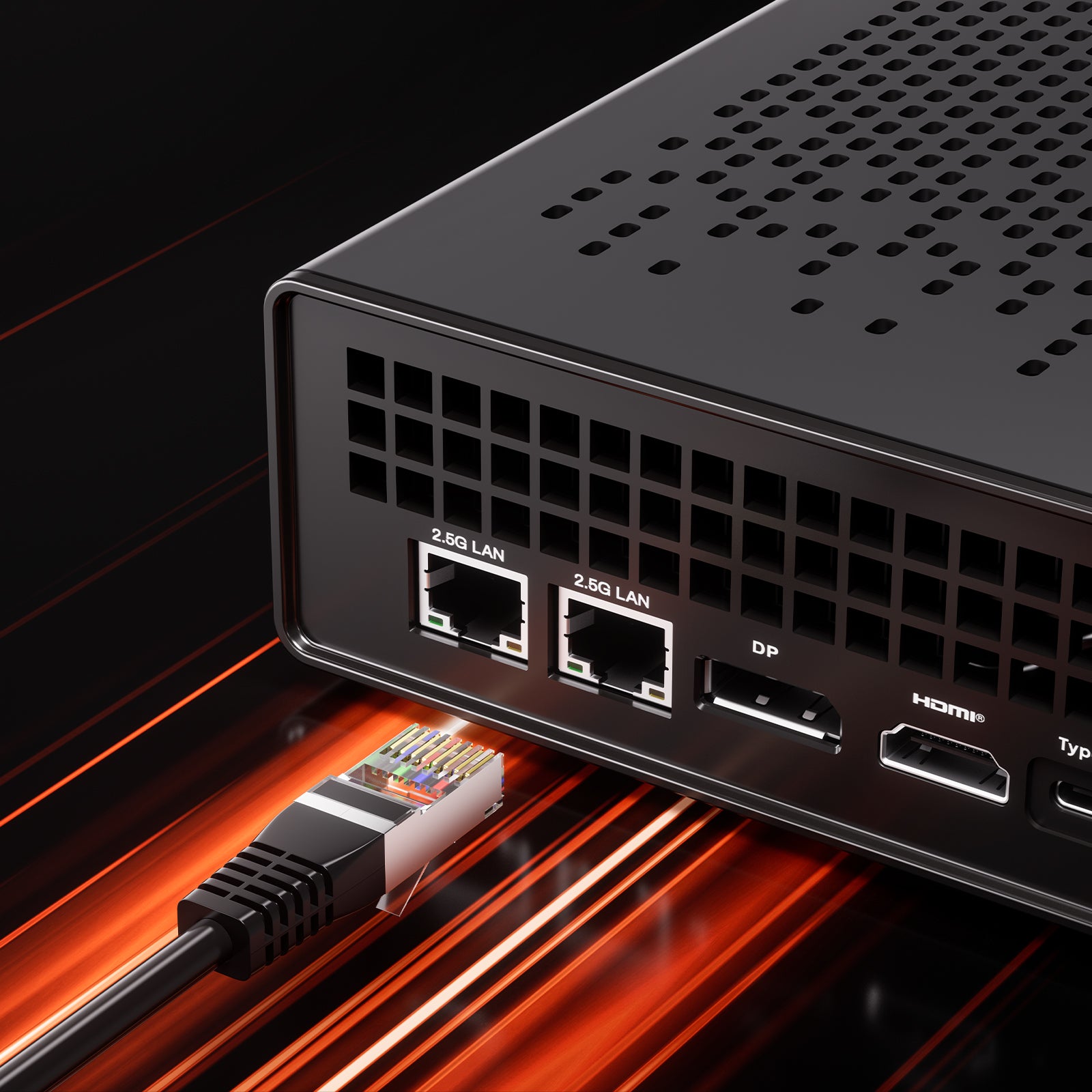

Dual 2.5G RJ45
Dual 2.5G RJ45 Ethernet ports support WAN and LAN port aggregation, delivering powerful throughput and doubling the speed, greatly enhancing the efficiency and experience of multiple users accessing the internet simultaneously.
Full-speed USB4

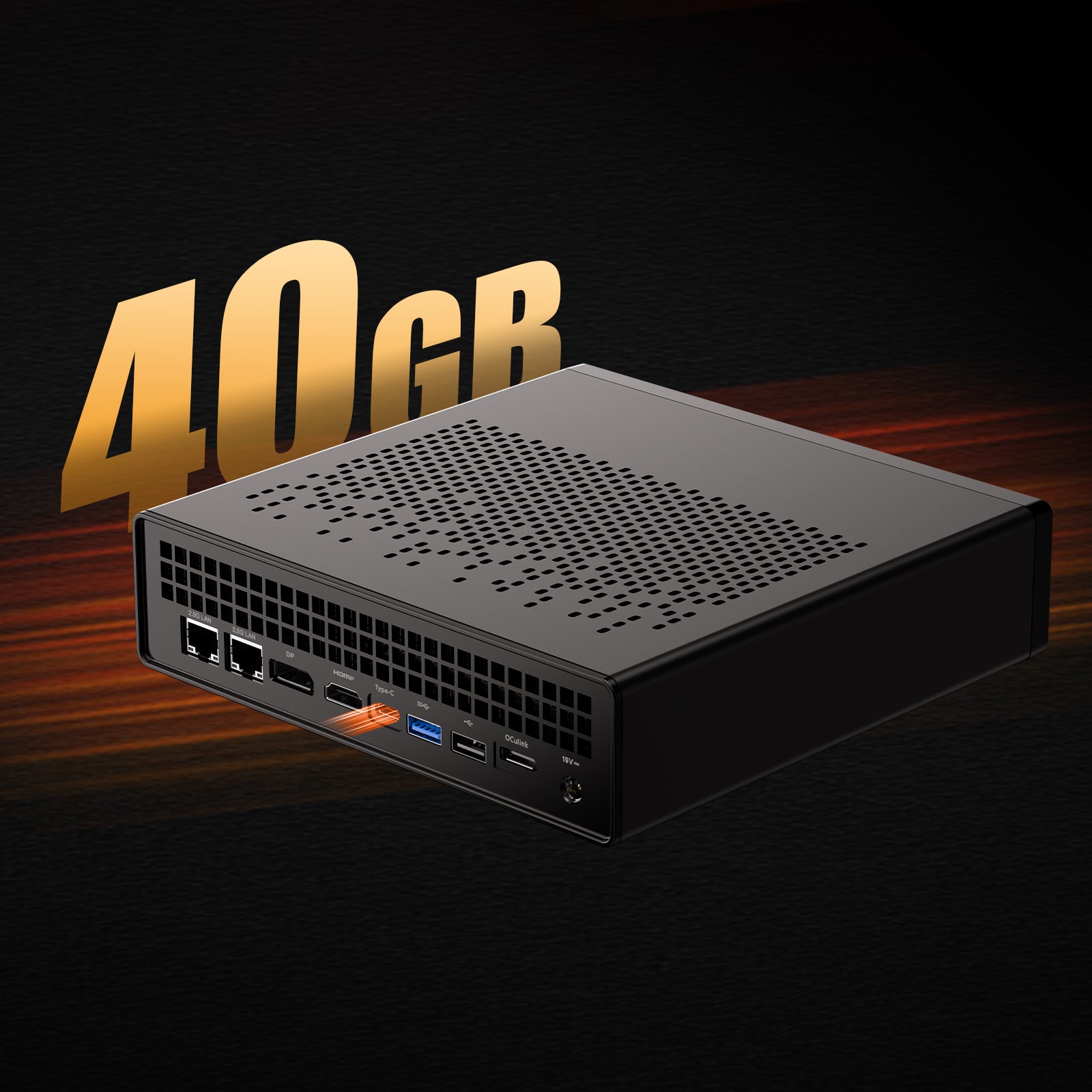

The MS-A1 features USB4 ports with speeds of up to 40Gbps, facilitating quick transfer of large files.
* Only Phoenix architecture CPUs support the USB4 protocol.
Dual 2.5G RJ45
Dual 2.5G RJ45 Ethernet ports support WAN and LAN port aggregation, delivering powerful throughput and doubling the speed, greatly enhancing the efficiency and experience of multiple users accessing the internet simultaneously.
Full-speed USB4
The MS-A1 features USB4 ports with speeds of up to 40Gbps, facilitating quick transfer of large files.
* Only Phoenix architecture CPUs support the USB4 protocol.
Expansion
Support for Oculink
An external high-performance desktop graphics card can be connected to achieve a significant performance boost, meeting the demands of gamers and creative professionals for high-performance graphics processing capabilities.
Specification
Miniworkstation MS-A1
AMD Raphael/Phoenix
AMD Ryzen™ 7 8700G
AMD A600
AMD Radeon™ Navi3 Graphics
DDR5 Up to 5200MHz (dual channels)
Max 96GB
M.2 2280 SSD *1 (PCIe 4.0x1)
M.2 2280 SSD *1 (PCIe 3.0x4)
M.2 2280 SSD *2 (PCIe 4.0x4)
M.2 2230 support WIFI 6E
Bluetooth 5.2 (PCIe with USB2)
DC-IN Jackx1 (19V/12.63A 240W)
HDMIx1 (4K@120Hz)
DPx1 (4K@144Hz)
Oculinkx1 (PCIe 4.0x4)
Type Cx1 (Data+DP)
Type Ax1 (USB3.2 Gen2)
Type Ax1 (USB2.0)
RJ45 (2.5G)x2 (RTL8125BG)
Type Ax2 (USB3.2 Gen1)
Type Ax1 (USB2.0)
Audio Jackx1 (3.5mm Combo Jack)
LEDx1 (CPU/RAM)
Power Buttonx1 (with LED)
Reset Buttonx1 (Clear cmos)
Windows 11
Dimension(L x W x H)
170*173*1.6mm
1 x MS-A1 Minipc
1 x Power Adapter
1 x Power Cord
1 x HDMI cable
1 x Instruction manual (Engilsh compatible)
FAQ
Q:How long does it take to ship?
A:Please see our shipping policy for details.
Q:What CPUs does the MS-A1 support?
A:Supports AMD's 7000 series, 8000 PHX architecture (8700G/8600G).
Q:What are the differences in terms of interfaces between MS-A1 and MS-01?
A:MS-01 features a 10 Gigabit Ethernet port, built-in PCIe interface, two USB4 ports, and three SSD slots.
On the other hand, MS-A1 lacks a 10 Gigabit Ethernet port and a built-in PCIe interface.
It only has one TYPE-C port supporting USB4 (USB protocol supported by 8700G CPU only) and can accommodate up to 4 SSDs.
Q:What is the maximum TDP supported by MS-A1?
A:Single CCD CPUs like 8700G/8600G/7600G support 65W, while dual CCD CPUs such as 7950X/7900X support 100W.
Q：How to disassemble MS-A1?
A:To disassemble MS-A1, you need to remove the two fixing screws on the bottom, then use the included clamp tool from the package to extract the motherboard stand to complete the disassembly.
