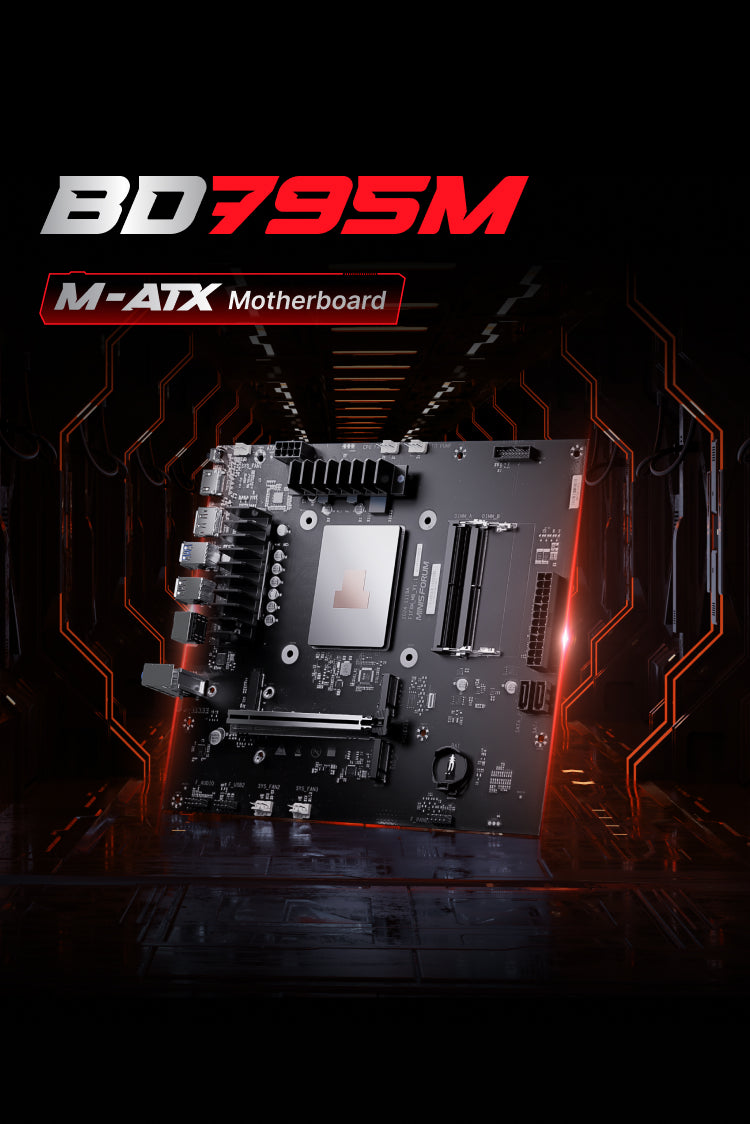

Minisforum BD795M M-ATX Motherboard
Shipping calculated at checkout.
Powerful onboard CPU
AMD Ryzen™ 9 7945HX
The BD795M motherboard is equipped with the AMD Ryzen™ 9 7945HX processor,with 16 cores and 32 threads, up to 5.4 GHz, bringing you unprecedented powerful computing power.

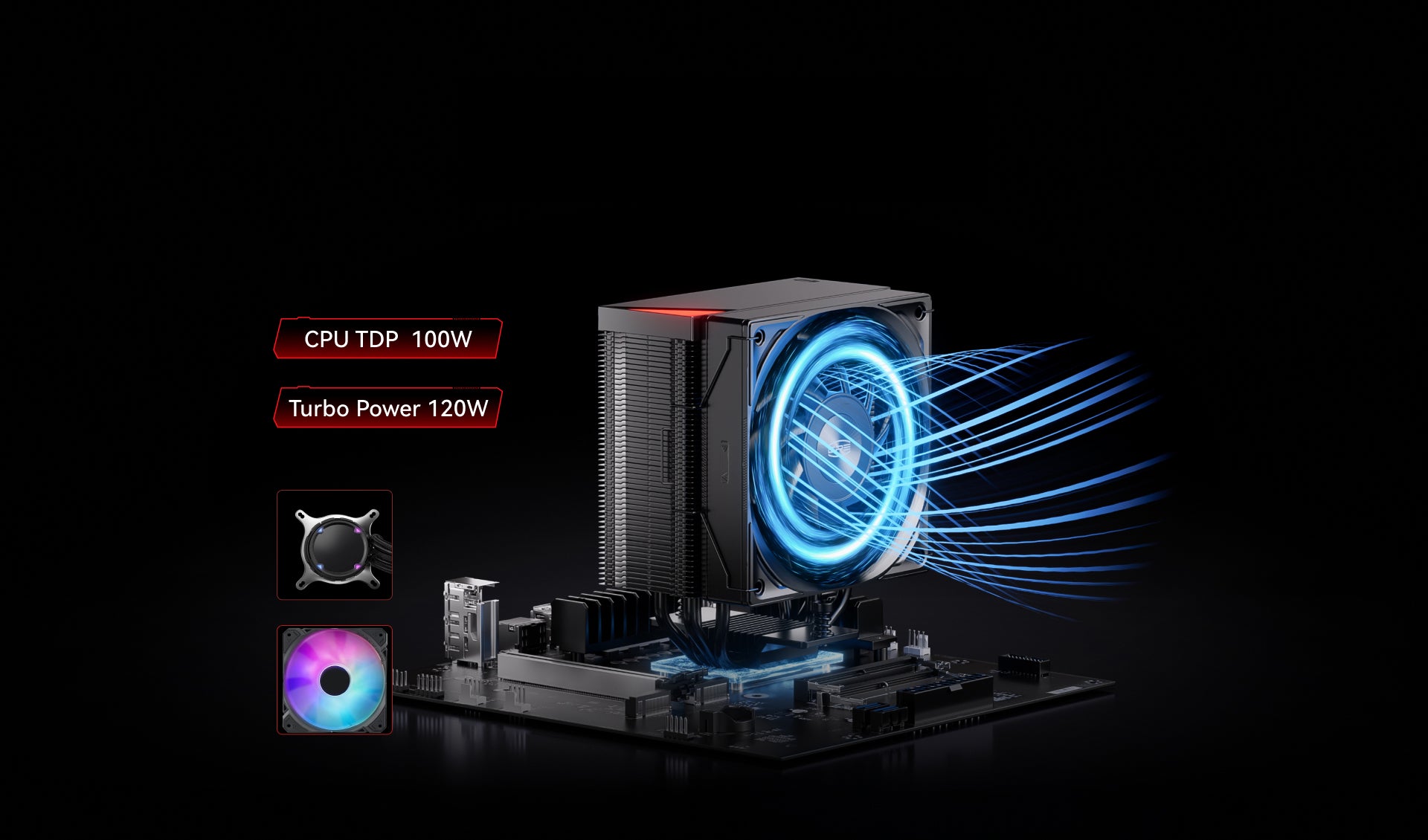

Radiator specifications
Supports standard LGA 1700 air cooling / liquid cooling radiator.
Integrated graphics for smooth visuals
Equipped with AMD Radeon™ 610M integrated graphics, it can provide you with dual-screen display and excellent graphics processing capabilities even without a discrete graphics card installed, allowing you to enjoy a smooth visual experience in multimedia applications.

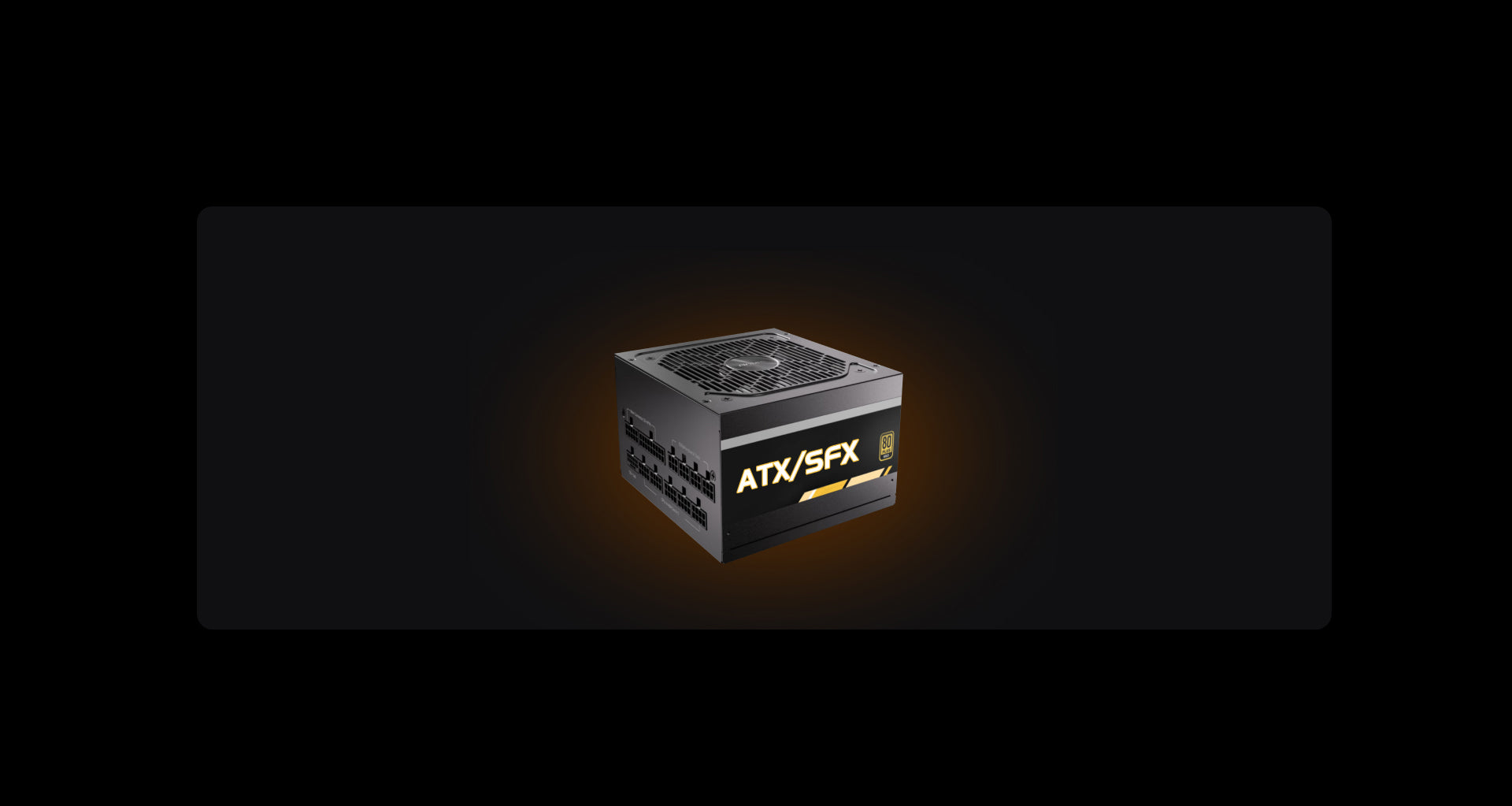

Power supplier selection
The BD795M motherboard is recommended to be paired with an ATX standard power supply (>200W) to ensure stable power delivery, achieving the perfect balance of high performance, reliability, and convenience.
Product specification
Minisforum BD795M
AMD Ryzen™ 9 7945HX, 16Cores/32 Threads
(64M Cache, up to 5.4 GHz)
AMD Radeon™ 610M
DDR5 Dual channel
(SODIMM Slots×2, up to 5200 MT/s, Max 64GB)
2×M.2 2280 PCIe4.0 SSD Slots
2×SATA HDD/SSD Slot(SATA3.0)
N/A

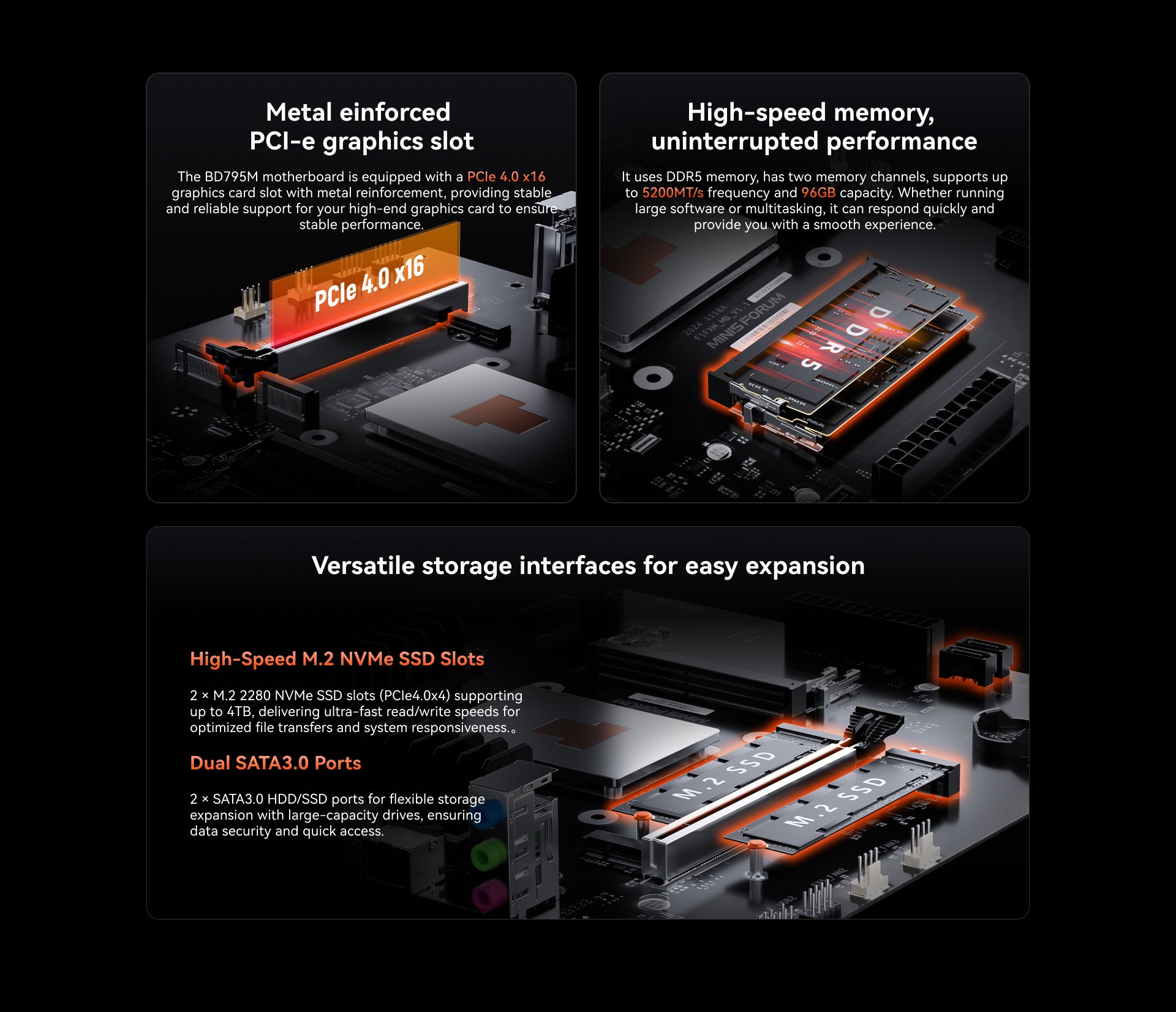

PCIe 5.0 X16 connector ×1 (With Metal Fasteners）

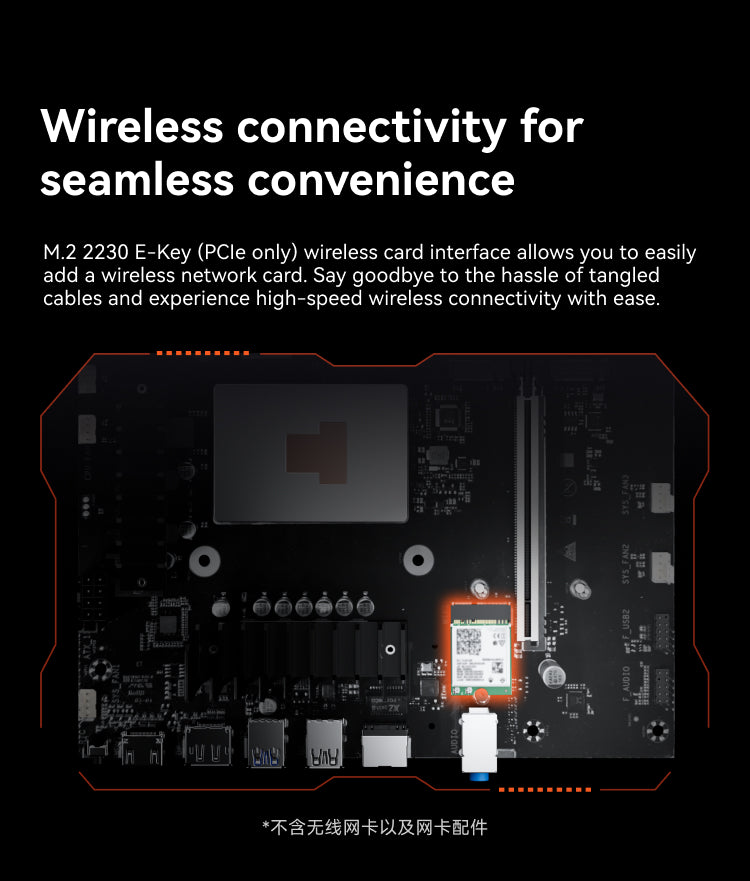

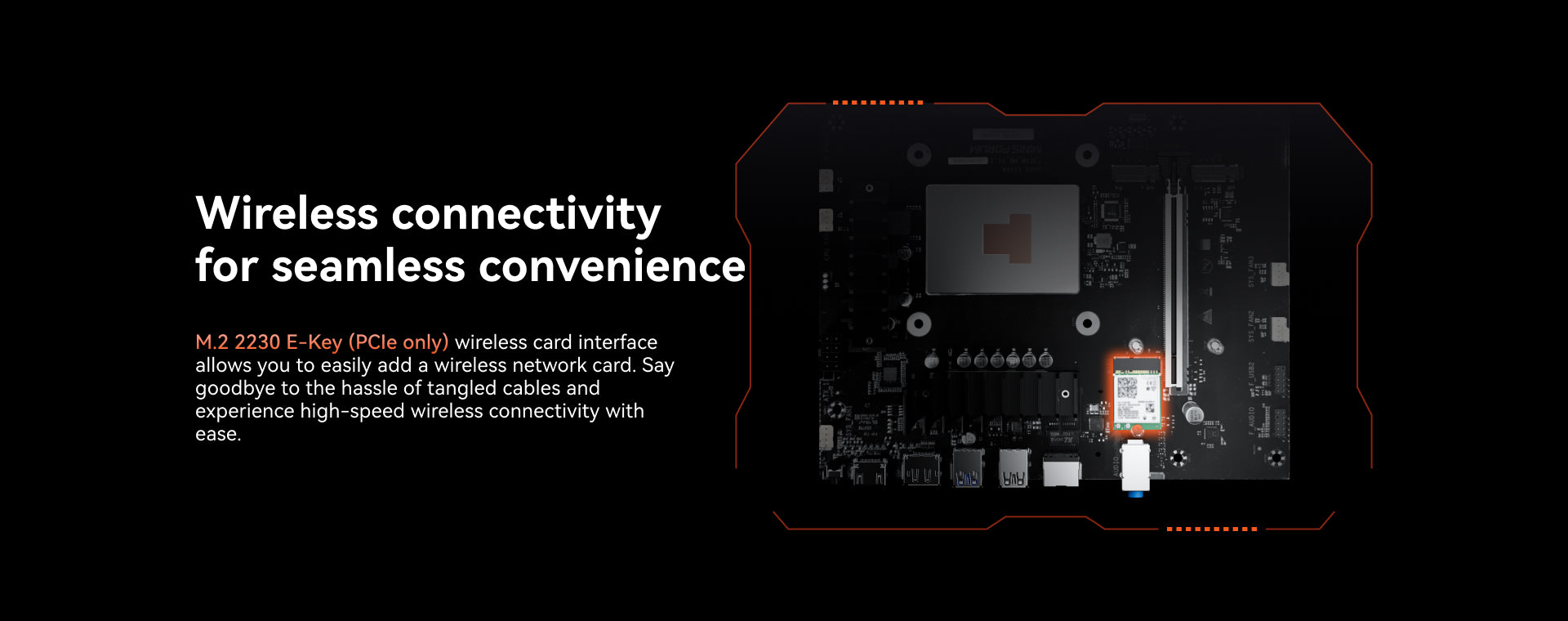

M.2 2230 Key E Slot
- HDMI2.0 ×1
- DisplayPort1.4 ×1
- Line Out ×1
- HDMI2.0 ×1
- DisplayPort1.4 ×1
RJ45 2.5G Ethernet Port×1
- USB3.2 Gen1 Type-A Port ×2
- USB2.0 Type-A Port ×2

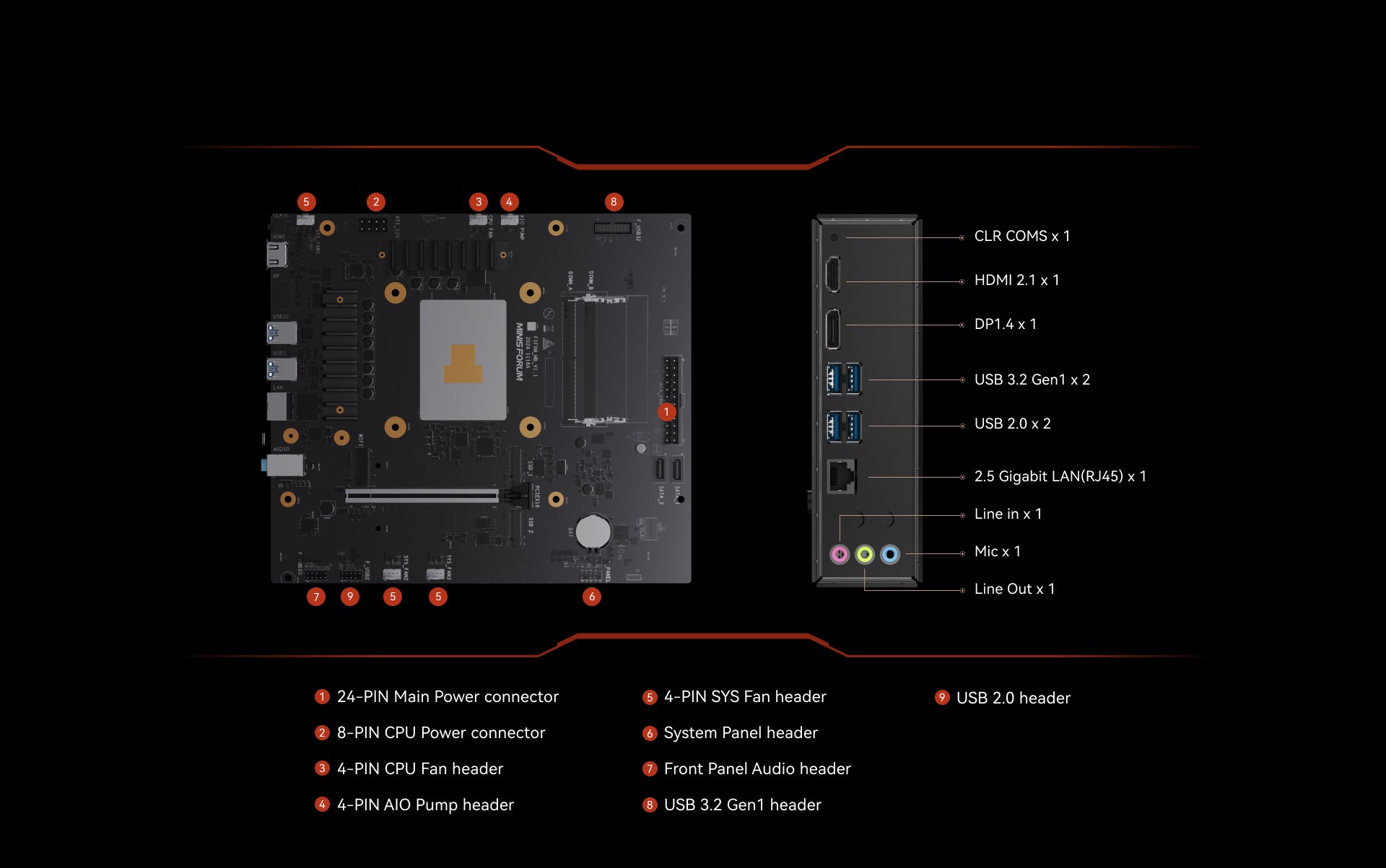

- 1 x 24-pin main power connector
- 1 x 8-pin +12V CPU power connector
- 1 x 4-pin CPU fan header
- 1 x 4-pin AIO pump header
- 3 x 4-pin SYS fan headers
- 1 x system panel header
- 1 x front panel audio header (F_AUDIO)
- 1 x USB 3.2 Gen1 header
- 1 x USB 2.0 header
M-ATX Form Factor(240x220x1.6 mm)
Product Comparison
Differences Between Motherboards with the Same CPU.
BD790I
BD795I SE
BD795M
M.2 2280 PCIe 5.0 SSD x2
With Active Heatsink Included
M.2 2280 PCIe4.0 SSD×2
M.2 2280 PCIe4.0 SSD×2
SATA3.0×2
PCIe 5.0
PCIe5.0 (With metal bracket)
PCIe4.0 (With metal bracket)
AX1675
M.2 2230 Key E Slot
M.2 2230 Key E Slot
Included
No
Included
Included
No
No
Included(Without Fan)
Included (Without Fan)
No (LGA1700 standard)
