Minisforum 795S7 Mini-ITX
Shipping calculated at checkout.
Mini-ITX
7L Small Footprint
The compact 7L design takes center stage, paired with a timeless design philosophy.
The classic carbon black minimalist style creates a sleek yet professional appearance, ideal for business and entertainment.
Delivering Exceptional Performance

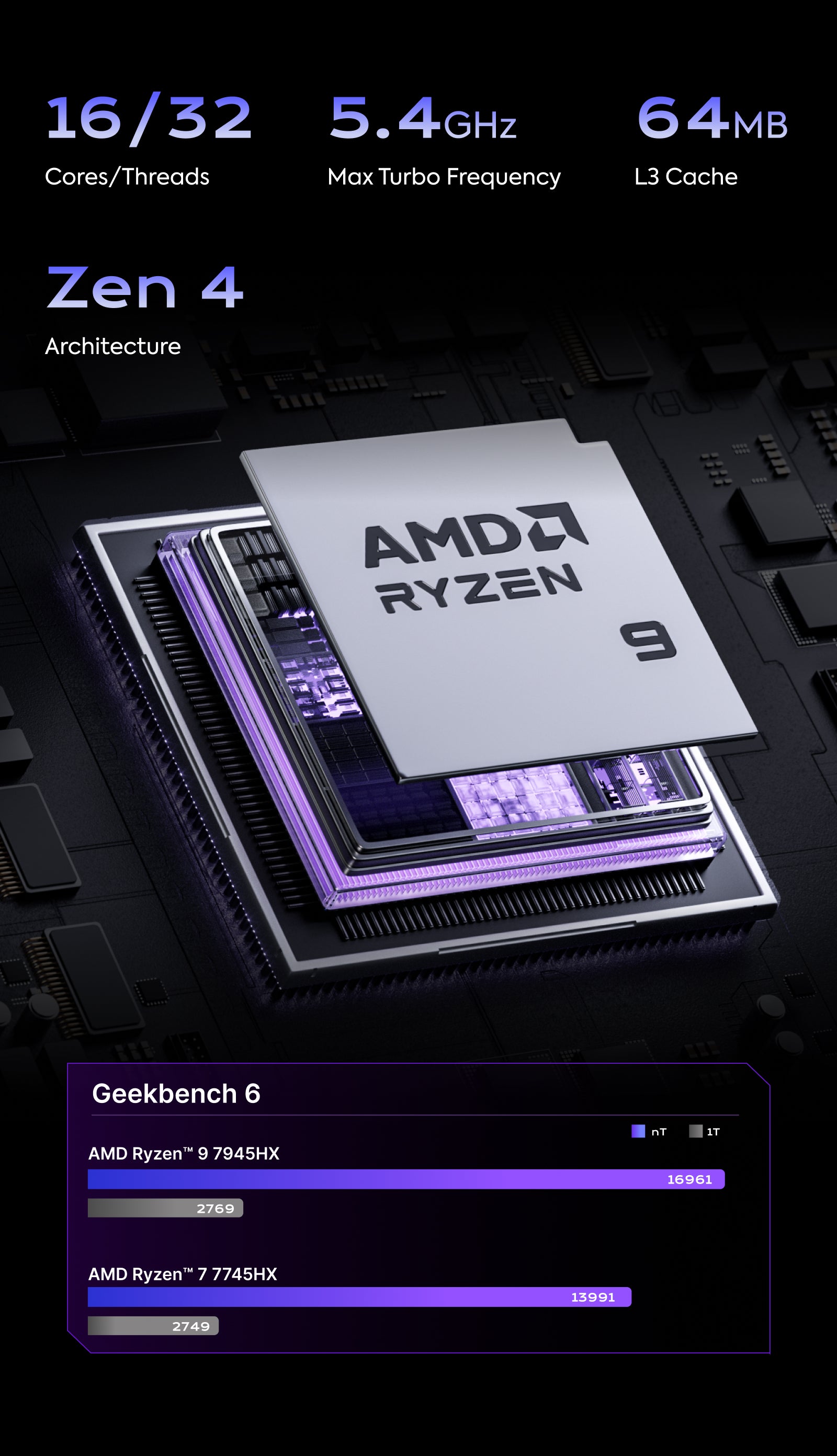

The 790S7 is equipped with the AMD Ryzen™ 9 7945HX processor based on Zen 4 architecture, featuring 16 cores and 32 threads, with a maximum clock speed of 5.4GHz for efficient multitasking.
GPU
Expand Low-profile Graphics Card
It includes the Radeon™ 610M graphics card, offering powerful video decoding and encoding capabilities, making it ideal for video and content creators.
790S7 also includes a dedicated RTX 4060 graphics card, supporting PCIe 5.0 ×16.
System
Efficient Cooling
The compact 7L chassis features a high-speed CPU cooling fan, effectively lowering the CPU operating temperature to achieve optimal cooling performance and energy efficiency.
Its metal case enhances cooling capability, ensuring stable operation for extended periods.
DDR&SSD
Expandable capacity
Expand your storage space to enhance performance, allowing seamless switching between gaming, streaming, and web browsing for a smooth internet experience.
DDR5 Dual-Channel Memory Slots
SODIMM Slot | DDR5-5200MHz | Max 64GB
Dual M.2 2280 PCIe4.0 SSD Slots
High-Speed NVMe SSD | Max 4TB
400W Performance at 7L Design
The 790S7 delivers impressive power with a power of 400W, all packed into a compact 7L size.
Compared to traditional towers with over 650W power and 35L volume, 790S7 offers outstanding power efficiency in a significantly smaller size, making it ideal for those who need performance without bulk.
*It has ample slots to provide robust support for future upgrades and hardware additions.
Triple-screen Display
The 790S7 enhances multitasking with its high-speed USB 3.2, HDMI 2.1, and DP 1.4 ports. Easily connect up to three 4K displays to maximize your workflow and increase productivity.
Fits All Your Need
The 790S7 blends a compact design with powerful performance and reliability, providing excellent manageability, AI readiness, and customization options. It's an ideal solution for modern business applications, competitive gaming, edge computing, and IoT environments.

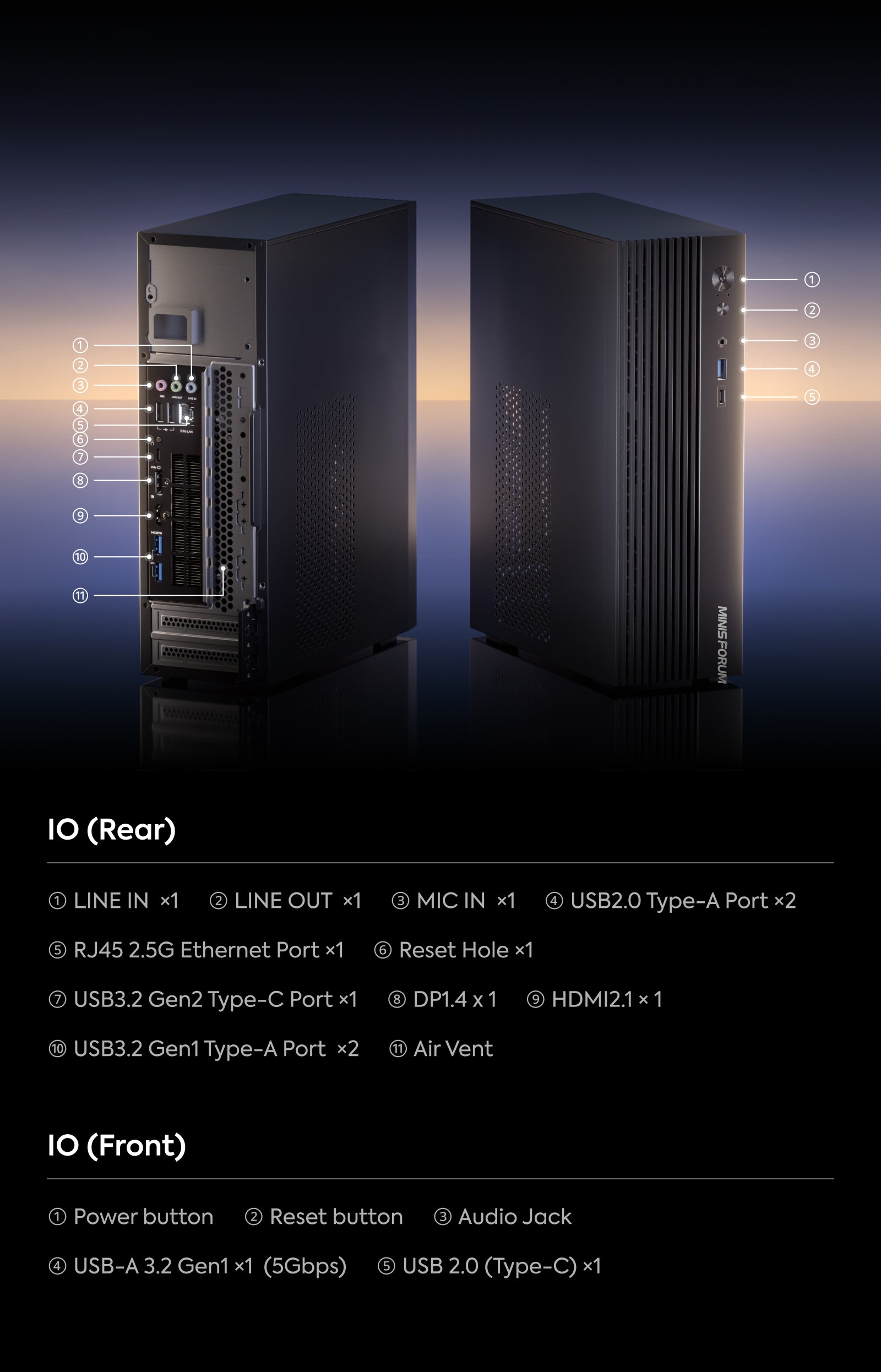

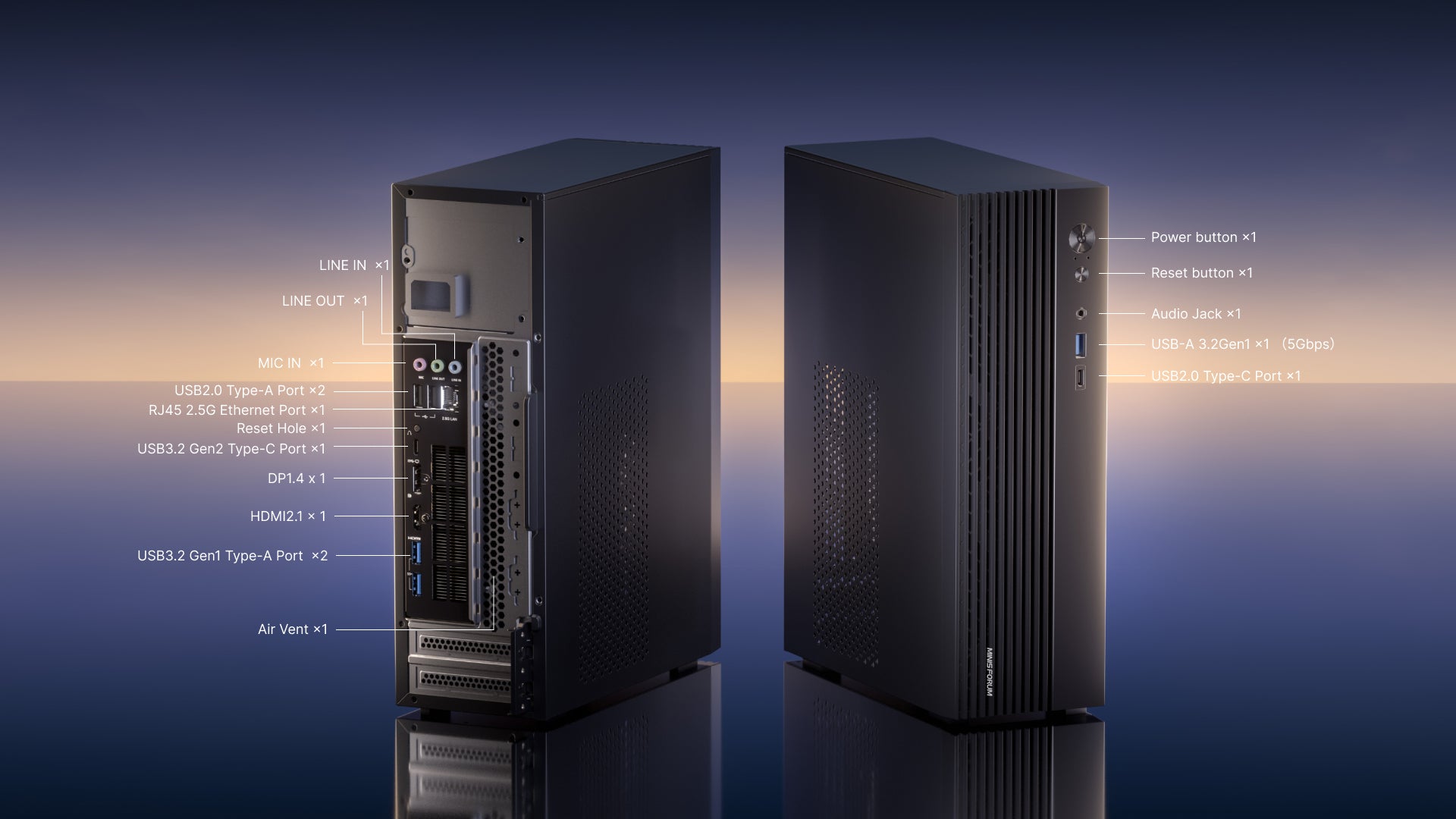

Interfaces Details
The 790S7 offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card with no hassle.
Specification
Minisforum 790S7 Mini-ITX
795S7 Mini-ITX
AMD Ryzen™ 9 7945HX
(16 cores/32 threads)
AMD Radeon™ 610M Graphics
PCle5.0 x16
DDR5 Dual channel
(SODlMM Slotsx2 ,up to 5200 MT/s, Max 64GB)
M.2 2280 PCle4.0 SSD Slots x2
HDMI2.1 x1 (4K@120hz/8K@60Hz)
DP 1.4 x1(4K@144Hz)
USB3.2x1(4K@240Hz/8K@60Hz)
HDMI x1 ; DP x1 ; Audio Jack x1
- Audio Jack x1
- l0(Front)
- USB2.0 Type-C Port x1
- USB A 3.2 Gen1 x1 (5Gbps)
- Power button x1
- Reset button x1
- HDMI2.1x1
- DP1.4x1
- USB3.2 Gen2Type-C Port x1 (Alt DP)
- USB3.2 Gen1 Type-A Port x2
- USB2.0 Type-A Port x2
- LINE IN x1
- LINE OUTx1
- MIC IN x1
11.73 x 8.86 x 3.74 inches
400W
Windows 11
FAQ
Q:Does the barebone come with an OS license?
A:The barebone does not come with memory, SSD, or OS license.OS download data is available on our support page.
Q:When shipping information is not displayed on the Shipping Status Inquiry page.
A:This is because the shipment is undergoing customs clearance procedures in Hong Kong. The tracking information will be updated after the procedure is completed.
Q:How does the size of the mini tower PC compare to traditional desktop PCs?
A:The 790S7 delivers impressive power with a power of 400W, all packed into a compact 7L size. Compared to traditional towers with over 650W power and 35L volume.
Q:Does the mini tower PC support discrete graphics cards?
A:Yes, it supports low-profile discrete graphics cards, giving users flexibility to enhance their system's performance.
Q:What is the maximum amount of RAM the mini tower PC can support?
A:The PC likely supports a substantial amount of DDR5 RAM, it supports up to 64GB of memory.
Q:Can I add additional storage or RAM to the mini tower PC?
A:Depending on the configuration, the PC may support additional storage and memory upgrades to suit your needs.
