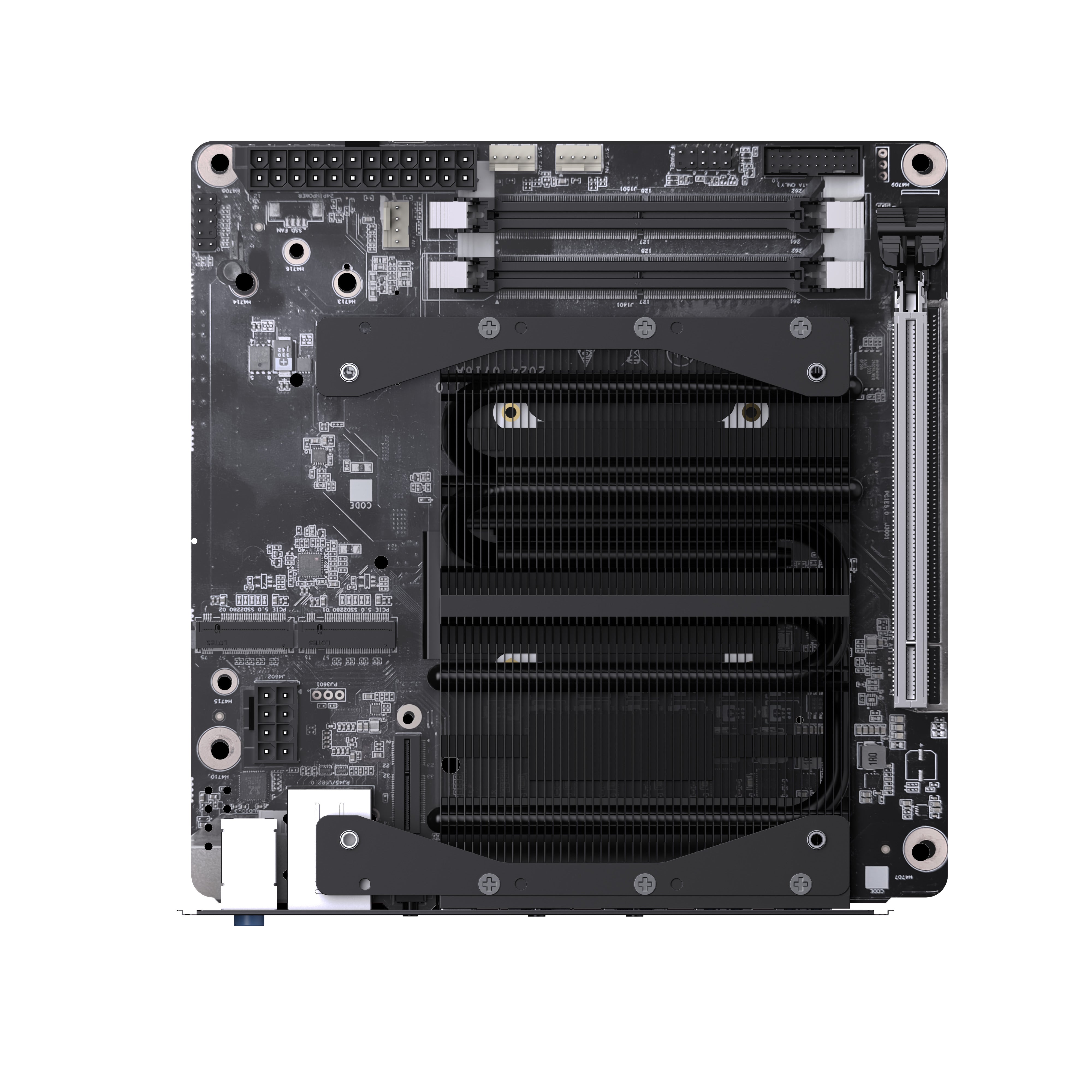

Minisforum BD895i SE / BD775i SE Motherboard
Shipping calculated at checkout.
- AMD Ryzen™ 9 8945HX,16C/32T
- Dual DDR5-5200Mhz | Up to 96GB
- Dual M.2 2280 PCle4.0×4 SSD Slots
- PCle5.0 × 16 Expansion Slot
- Support Triple-screen Display | 8K@60Hz
Deliverable Areas
3-Year Warranty & 30-Day Free Return
Duty-Free for UK
Delivery Timeliness
Benefits enjoyed by MINISFORUM customers
Deliverable Areas
›
Can be delivered for free to: United Kingdom and Ireland.
For more details, please refer to “Shipping Policy.”
3-Year Warranty & 30-Day Free Return
›
We offer a 30-day free returns and exchanges guarantee and a 3-year product warranty. If the product develops a fault during the warranty period, we will replace or repair it free of charge.
For products with screens—such as mobile monitors and tablets—the warranty period is 24 months (2 years).
For more details, please refer to “Warranty & Return.”
Duty-Free for UK
›
Tax/duty included for eligible regions.
Delivery Timeliness
›
- HK Warehouse: Dispatches in 2–3 days · Delivery in 7–10 days
- UK Warehouse: Dispatches in 1–2 days · Delivery in 3–4 days
- Refurbished Devices: Dispatches in 1–2 days · Delivery in 3–4 days
- Pre-sale Products: Please refer to the estimated dispatch time on the product page.
Pay With Ease
Trusted Delivery
AMD
Power at Its Core
Powered by the AMD Ryzen™ 9 8945HX with 16 cores, 32 threads
and a Max Boost Clock of up to 5.4 GHz.
Expansion Freedom

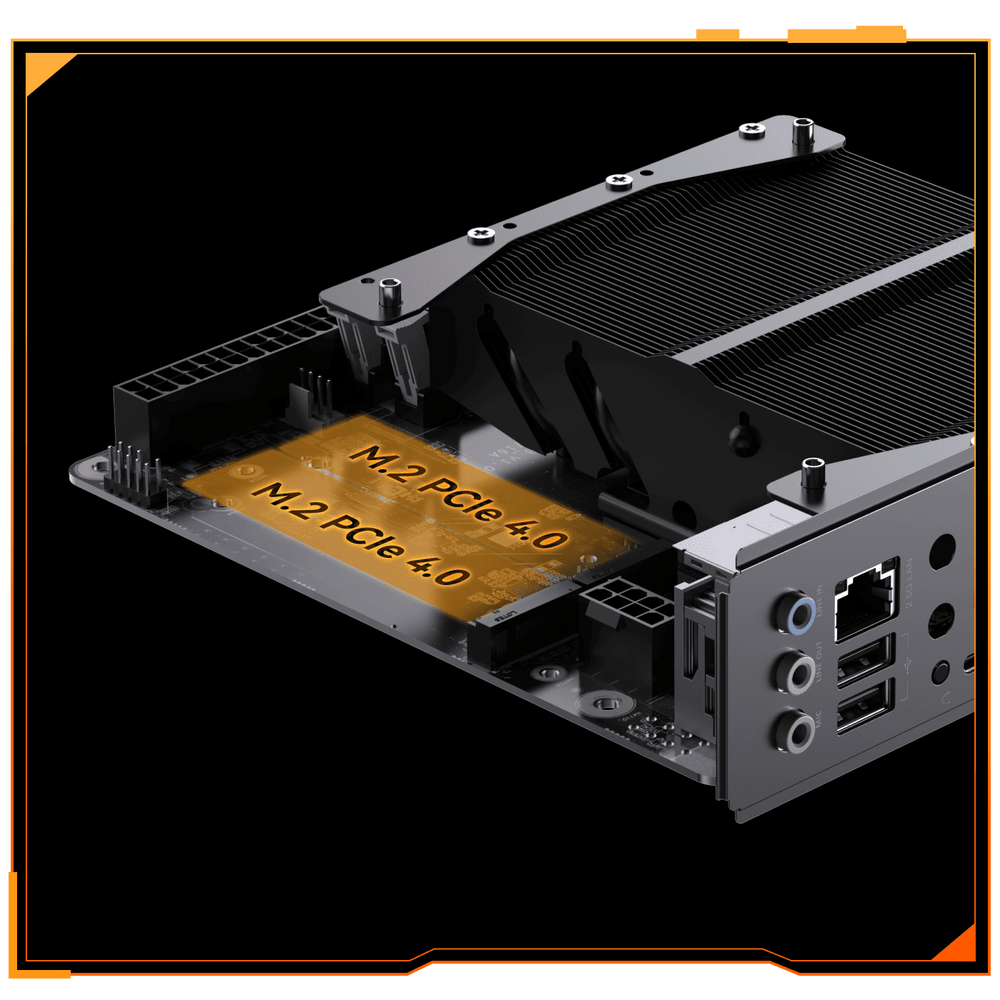

2×M.2 2280 PCIe 4.0 x4 SSD Slots

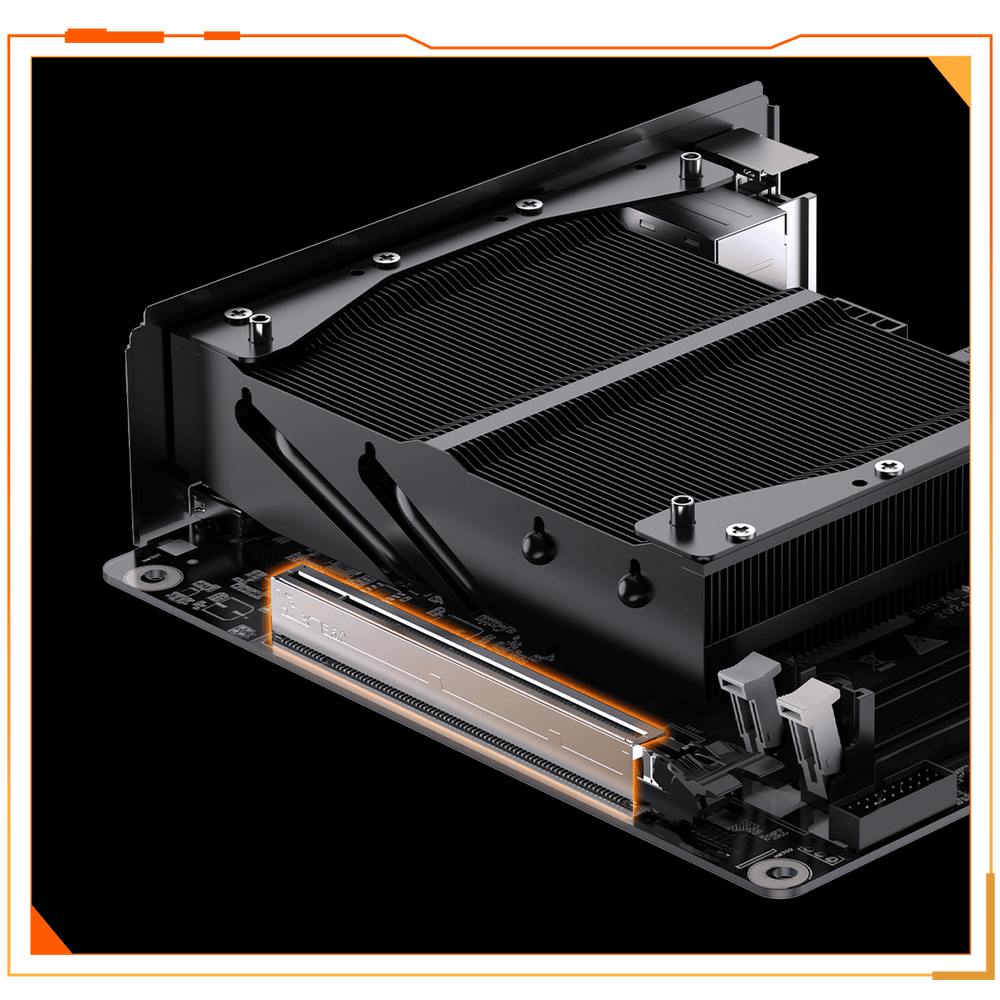

1×PCle5.0 x16(Full-Speed Graphics Slot)

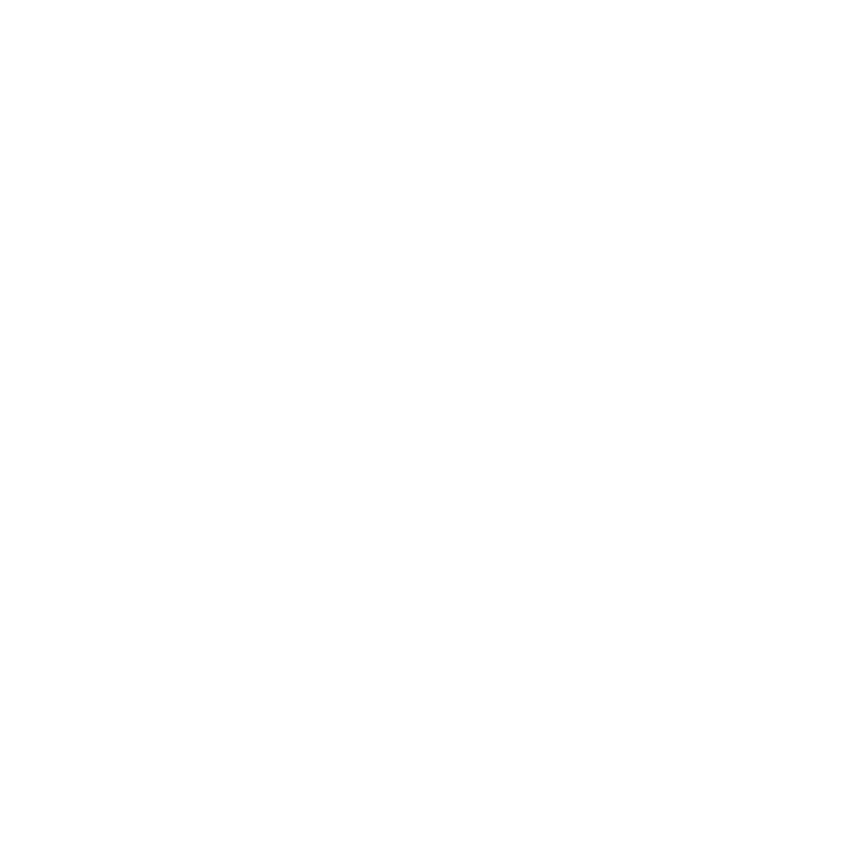

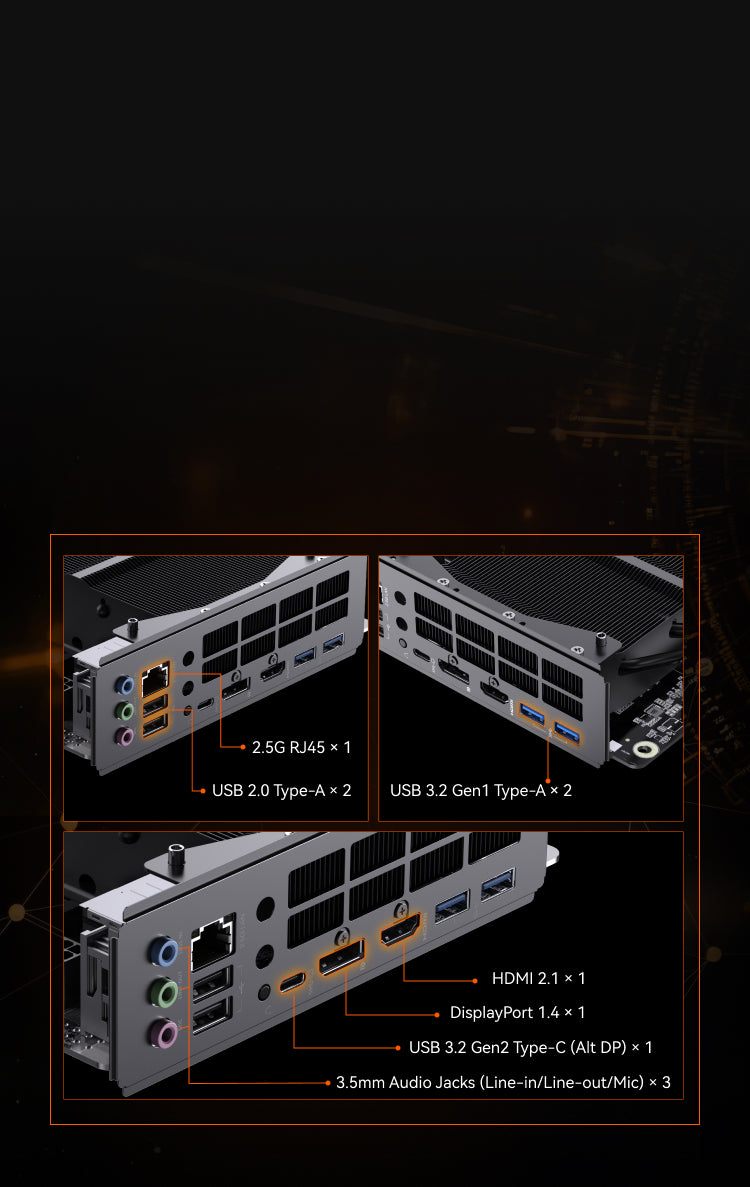

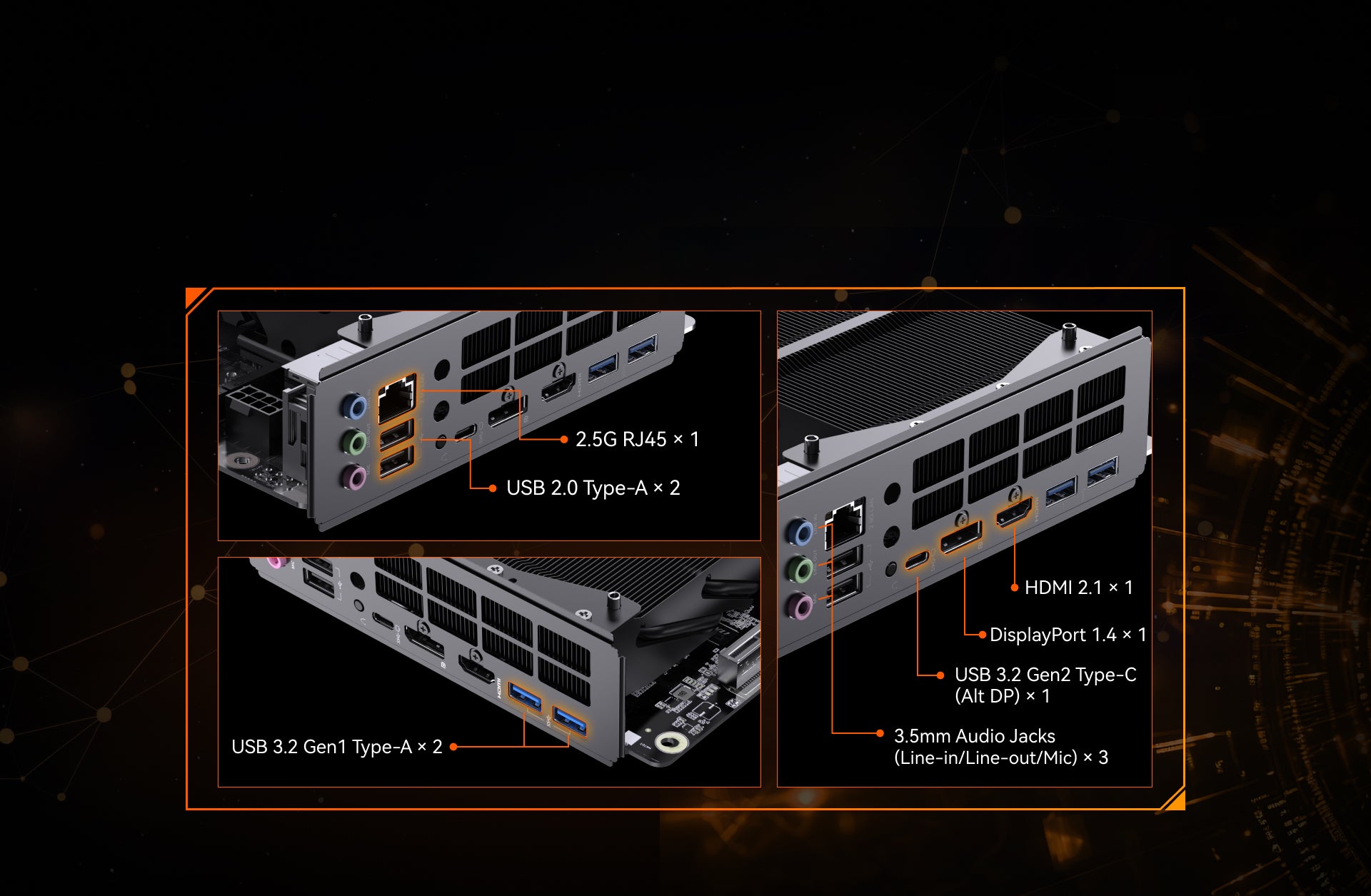

Rich Connectivity
Loaded with high-speed USB ports (including USB-C), dual video outputs (HDMI 2.1 & DP 1.4)
a 2.5G Ethernet jack, and multi-channel audio.
Expand Your View
Supports simultaneous triple-screen display output.
Supports up to 8K@60Hz on a single screen.
Power Starts Here
Revolutionize Your Creative Workflow
Ryzen 9 + Dedicated GPU: Smooth Creation for Design, Edit, Code.
Alongside Gamers, Conquer Every World
Expand More. Install Faster

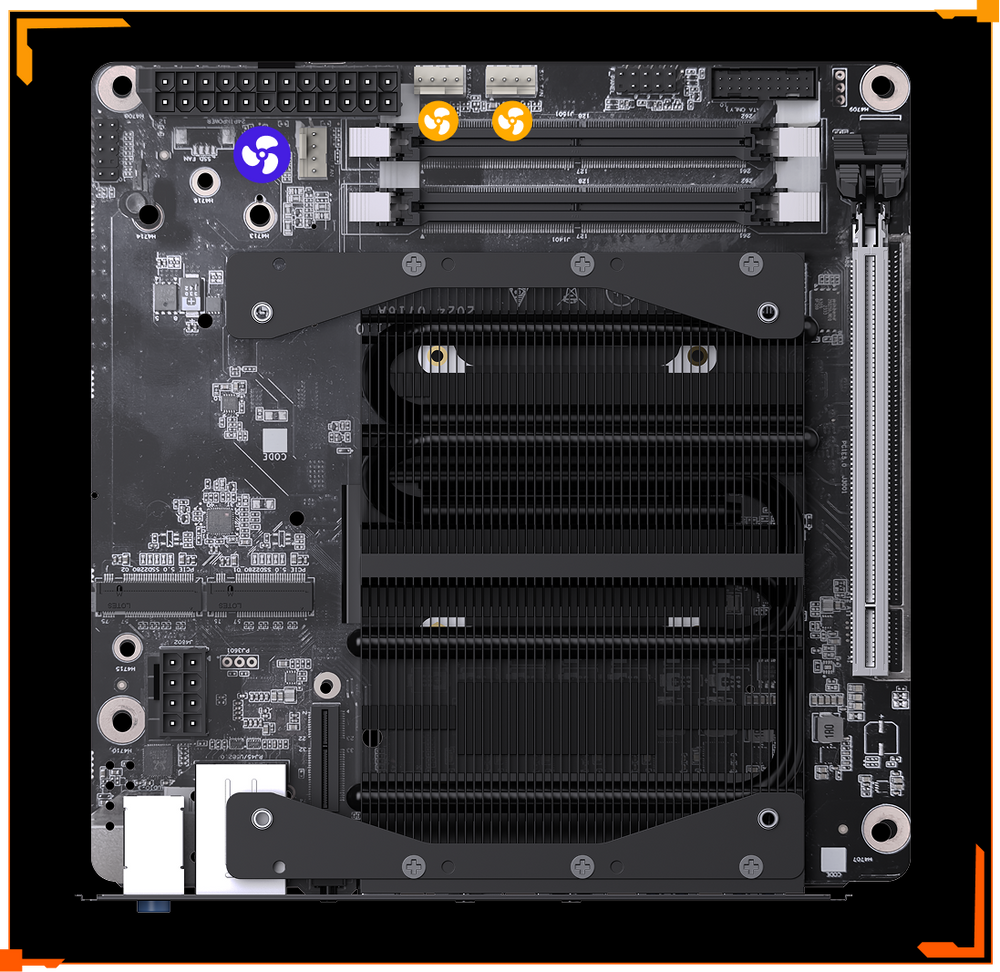

· Case Fan
· CPU Fan
· BIOS-Level Fan Control

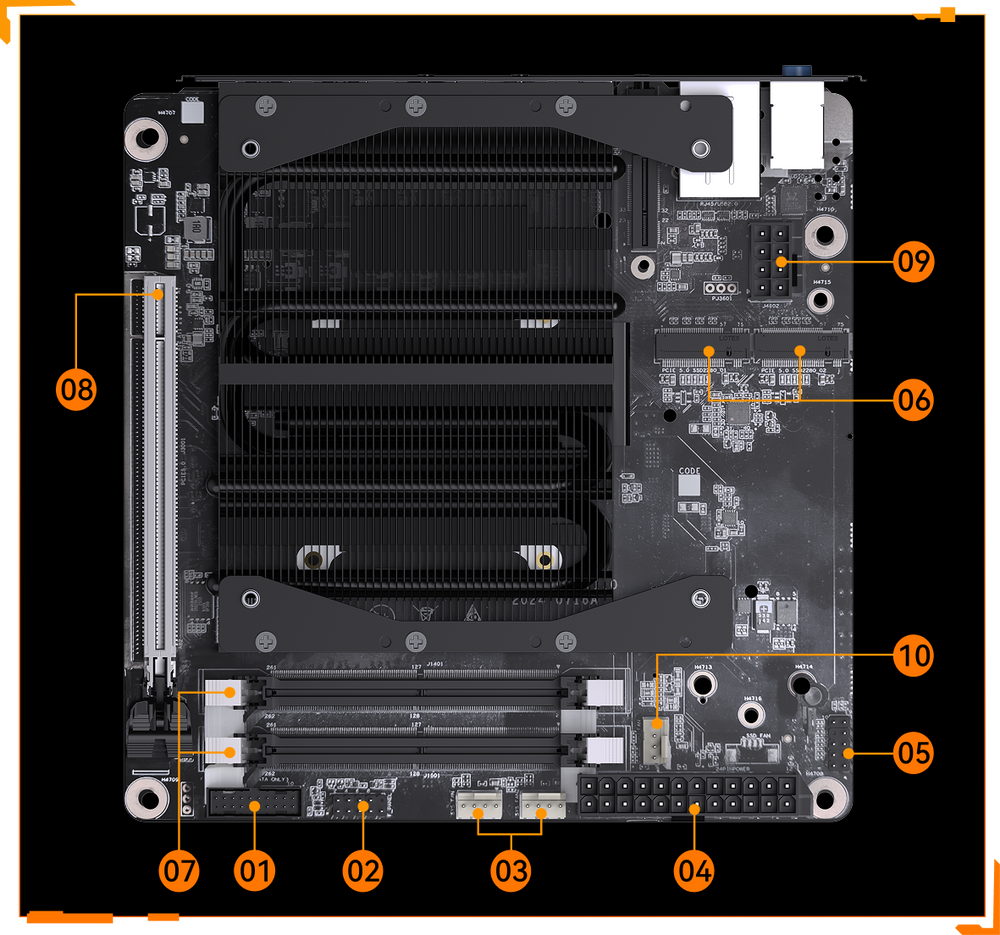

Motherboard Layout
1. USB 3.2 Gen1 header
2. System Panel header
3. 4-pin SYS Fan header × 2
4. 24-pin Main Power connector
5. Front Panel Audio header (F_AUDIO)
6. M.2 2280 PCIe 4.0 SSD Slots ×2
7. DDR5 SO-DIMM Slots × 2
8. PCIe 5.0 ×16 Slots
9. 8-pin CPU Power connector
10. 4-pin CPU Fan header

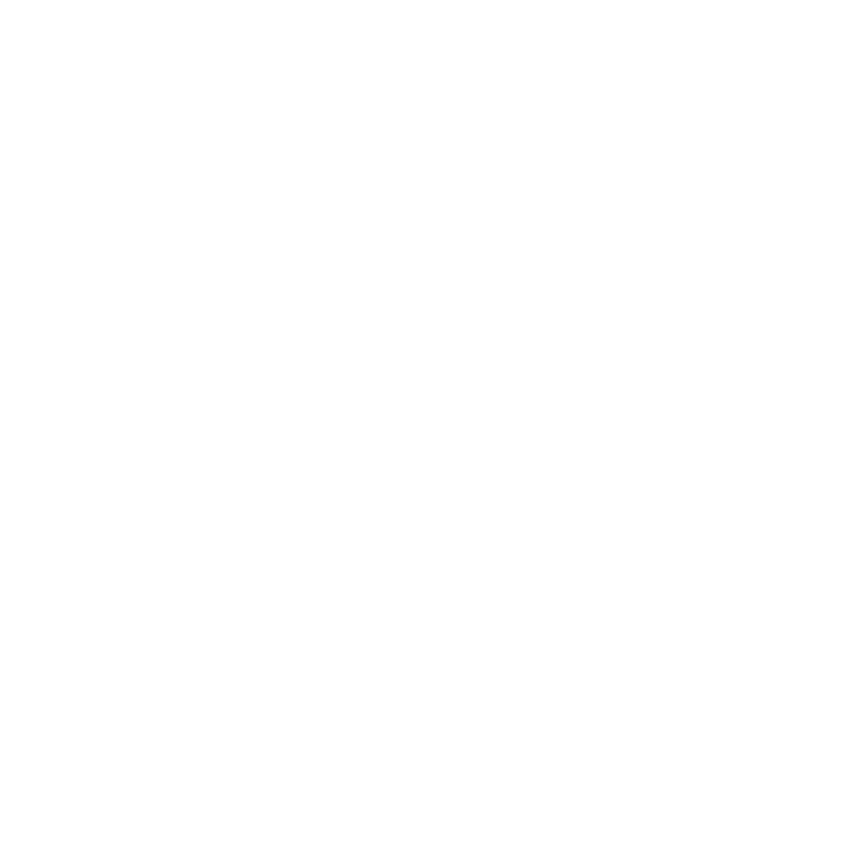

Packing List
Specification
Minisforum BD895I SE & BD775I SE
BD895I SE Motherboard
BD775I SE Motherboard
AMD Ryzen™ 9 8945HX,16C/32T
Max Turbo Frequency 5.4GHz ; TDP Up to 120W
AMD Ryzen™ 7 7745HX,8C/16T
Max Turbo Frequency 5.1GHz ; TDP Up to 100W
AMD Radeon™ 610M
AMD Radeon™ 610M
DDR5 (SO-DIMM х 2)
Max Speed 5200Mhz ; Max Capacity 96GB
DDR5 (SO-DIMM х 2)
Max Speed 5200Mhz ; Max Capacity 96GB
2 × M.2 2280 NVME SSD Slot
(Up to 4TB) (PCIe4.0x4)
2 × M.2 2280 NVME SSD Slot
(Up to 4TB) (PCIe4.0x4)
1 × M.2 2230 (Key E) WiFi Slot
Module not included
1 × M.2 2230 (Key E) WiFi Slot
Module not included
- 1 × 24-pin Main Power connector
- 1 × 8-pin CPU Power connector
- 1 × 4-pin CPU Fan header
- 2 × 4-pin SYS Fan header
- 1 × System Panel header
- 1 × Front Panel Audio header (F_AUDIO)
- 1 × USB 3.2 Gen1 header
- 1 × 24-pin Main Power connector
- 1 × 8-pin CPU Power connector
- 1 × 4-pin CPU Fan header
- 2 × 4-pin SYS Fan header
- 1 × System Panel header
- 1 × Front Panel Audio header (F_AUDIO)
- 1 × USB 3.2 Gen1 header
- 1 × HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
- 1 × DP 1.4 (Up to 8K@60Hz/4K@120Hz)
- 1 × USB-C (Up to 8K@60Hz/4K@120Hz)
- 1 × HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
- 1 × DP 1.4 (Up to 8K@60Hz/4K@120Hz)
- 1 × USB-C (Up to 8K@60Hz/4K@120Hz)
- HDMI х 1
- Line Out х 1
- HDMI х 1
- Line Out х 1
- Line in х 1
- Mic х 1
- Line in х 1
- Mic х 1

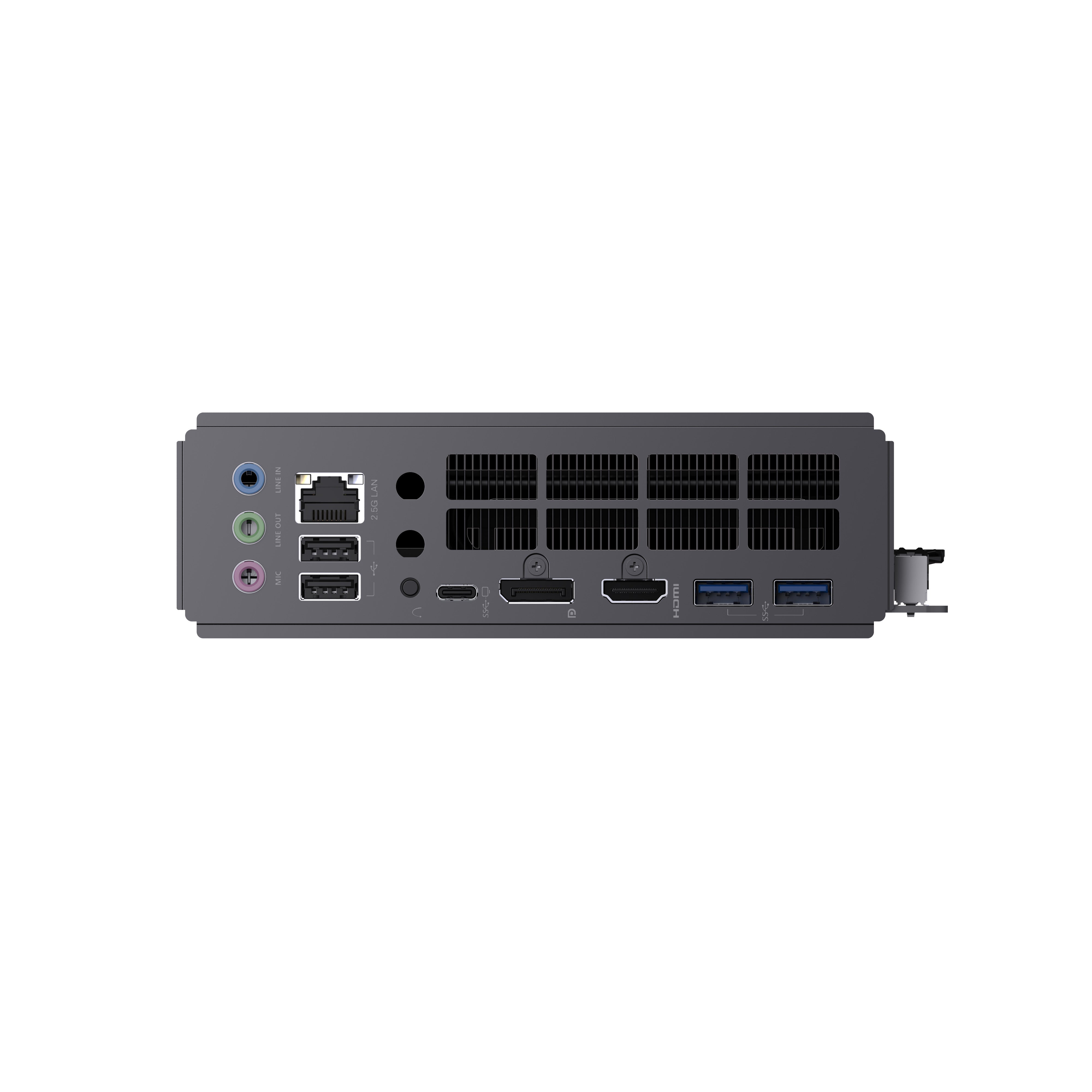

- 1 × 2.5GbE LAN (RJ45)
- 2 × USB Type A (USB 2.0)
- 2 × USB Type A (USB 3.2 Gen1)
- 1 × USB Type C (USB 3.2 Gen2,Alt DP)
- 1 × HDMI 2.1 FRL
- 1 × DP 1.4
- 1 × Line in
- 1 × Line Out
- 1 × Mic
- 1 × CLR COMS
- 1 × 2.5 GbE LAN (RJ45)
- 2 × USB Type A (USB 2.0)
- 2 × USB Type A (USB 3.2 Gen1)
- 1 × USB Type C (USB 3.2 Gen2,Alt DP)
- 1 × HDMI 2.1 FRL
- 1 × DP 1.4
- 1 × Line in
- 1 × Line Out
- 1 × Mic
- 1 × CLR COMS
1 × PCIe 5.0 x16
1 × PCIe 5.0 x 16
ATX Power (>200W)
ATX Power (>200W)
Windows 11
Windows 11
170х170mm(LWH),Mini-ITX
170х170mm(LWH), Mini-ITX
