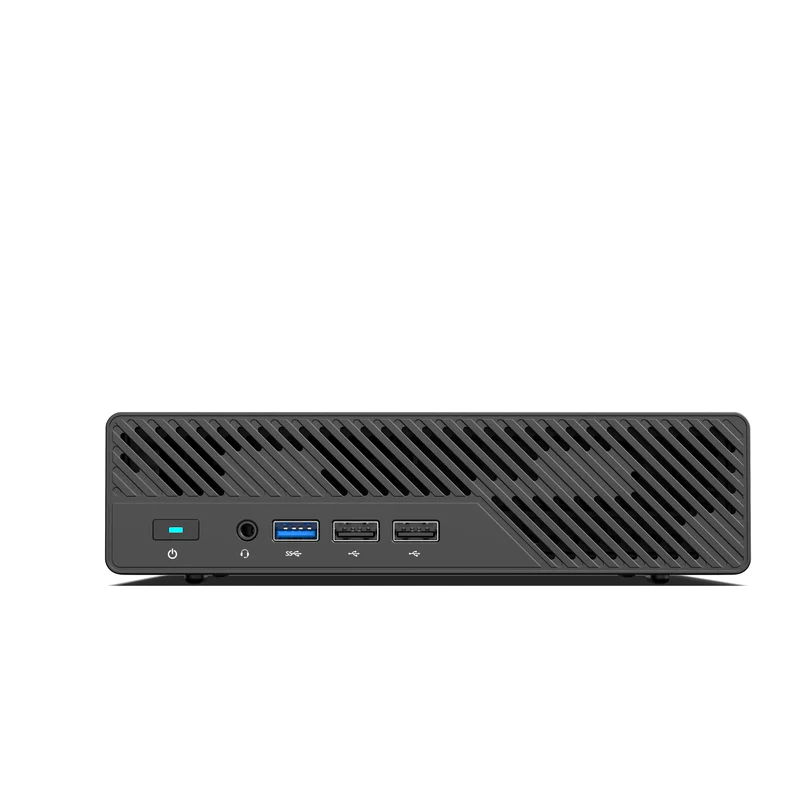

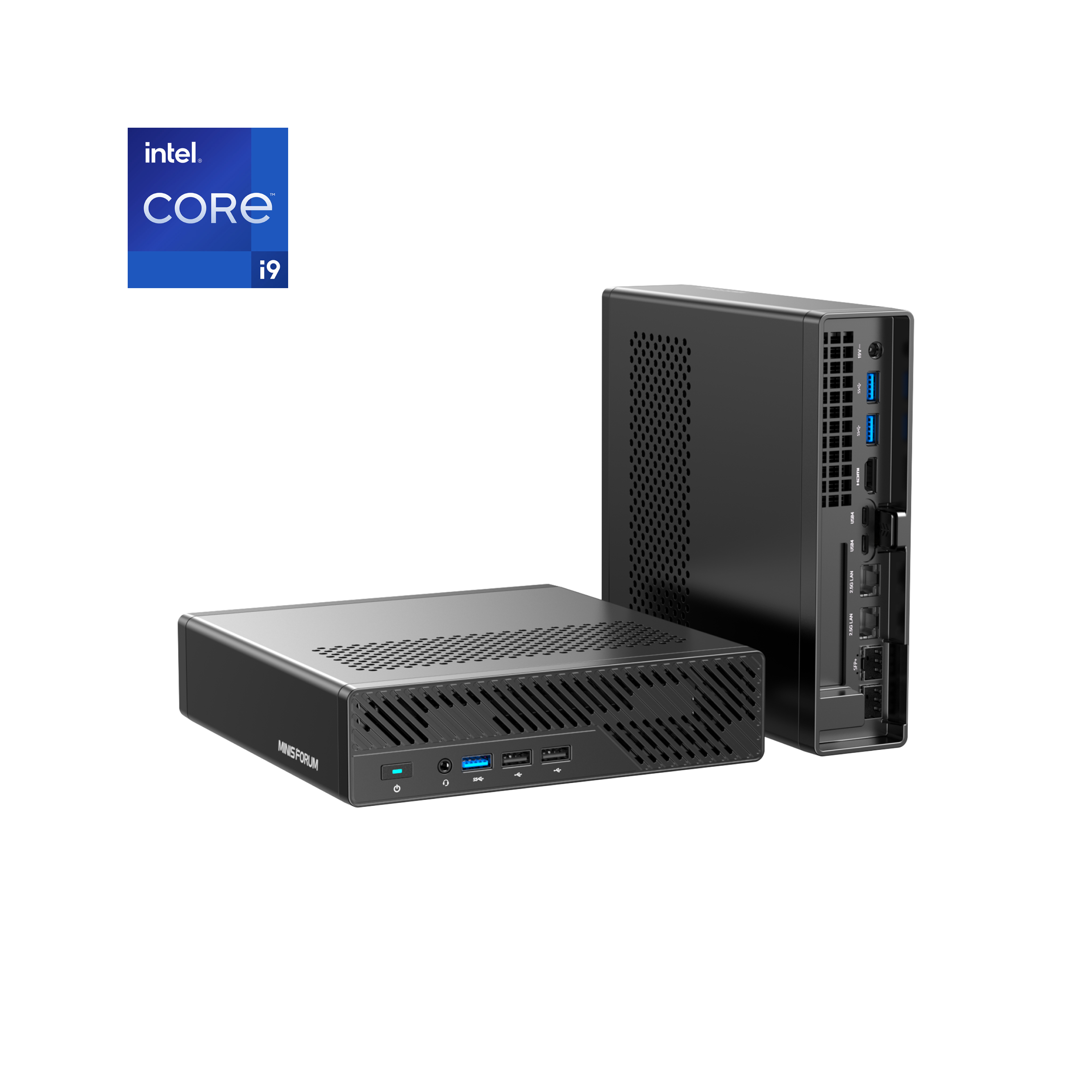

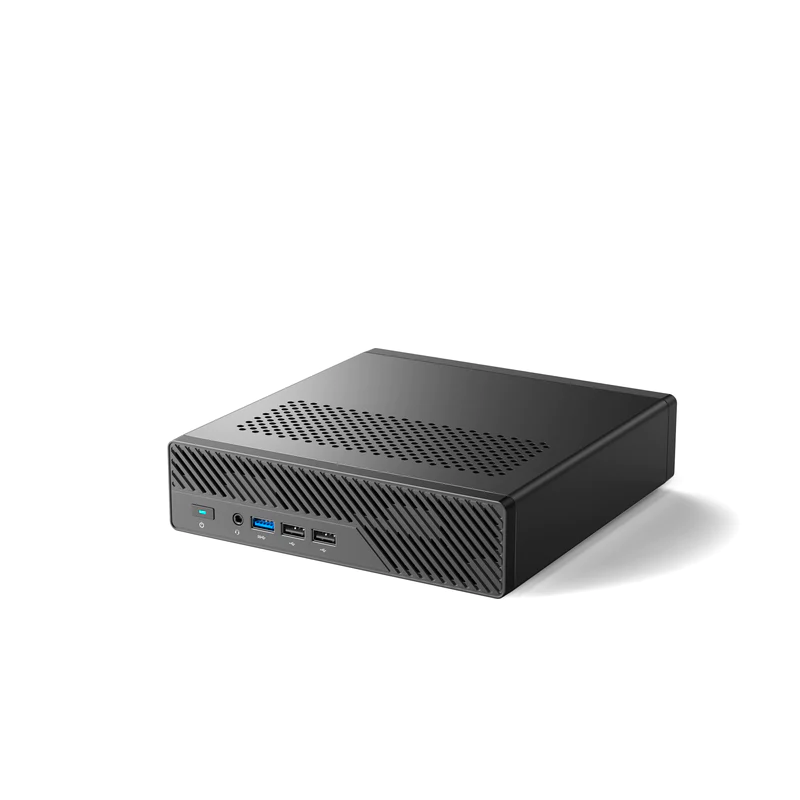

Minisforum MS-01
Minisforum MS-01
Sale price£499.00
Regular price£699.00 (/)
Minisforum MS-01 WorkStation
The MS-01 is powered by a highly scalable Intel 13th generation i9 CPU, delivering superior processing performance, response speed, and data transfer rates. The Mini PC is specifically designed for office and productivity tasks, featuring an efficient cooling system to handle multiple tasks simultaneously and enhance work efficiency.
Intel 13th Generation Core i9 Processor
The MS-01 is equipped with the high-end Intel® Core™ i9-13900H & Intel® Core™ i9-12900H processor from the 13th generation series. The powerful processor features 14 cores (6P+8E) and 20 threads, along with a 24 MB L3 cache. It can reach impressive maximum frequencies of 5.4 GHz and 5.0 GHz.
Integrated with Intel® Iris® Xe graphics processor, it offers a maximum frequency of 1.5 GHz/1.45 GHz. This combination of outstanding performance ensures a smooth and responsive experience.

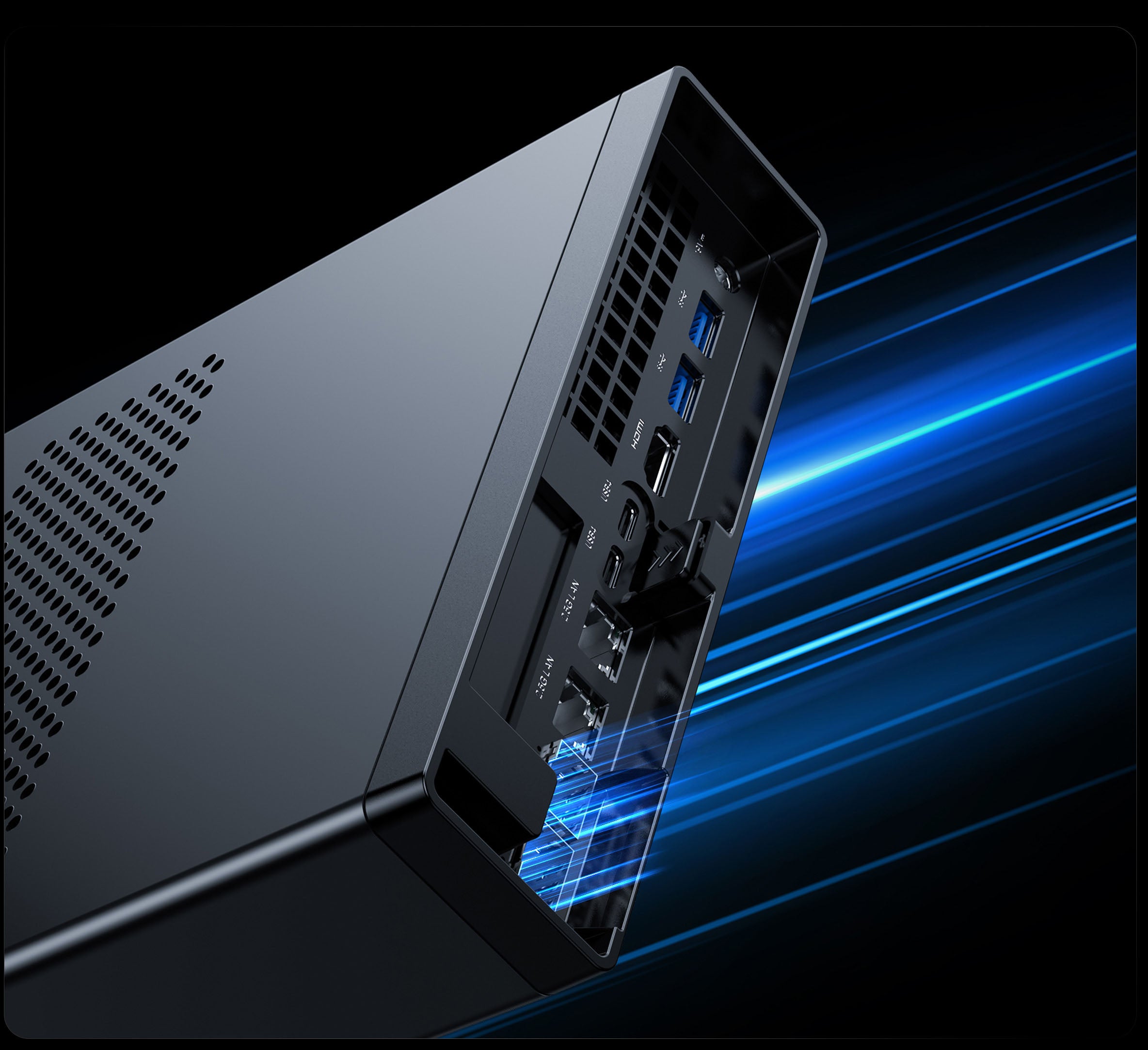

High-speed Network Ports
The MS-01 features two built-in 10 Gbps SFP+ LAN ports, two 2.5 Gbps RJ45 LAN ports, and two USB 4 ports, delivering a total Ethernet speed of up to 65 Gbps.This ensures an unparalleled high-speed network experience for you to enjoy.
01
The MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ modules offer high stability, and the optical fiber transmission ensures network security by preventing eavesdropping and interception.
With a transmission speed of 10Gbps, it is ten times faster than traditional 1000Mbps Ethernet, meeting the demands of high-performance networking devices.
02
In addition to the two SFP+ network ports, the MS-01 also features two standard 2.5Gbps RJ45 network ports, providing double the transmission speed compared to a single 2.5Gbps port, enabling enhanced network performance.
The RJ45 network ports offer high compatibility with a wide range of network devices, catering to the needs of general use.
03

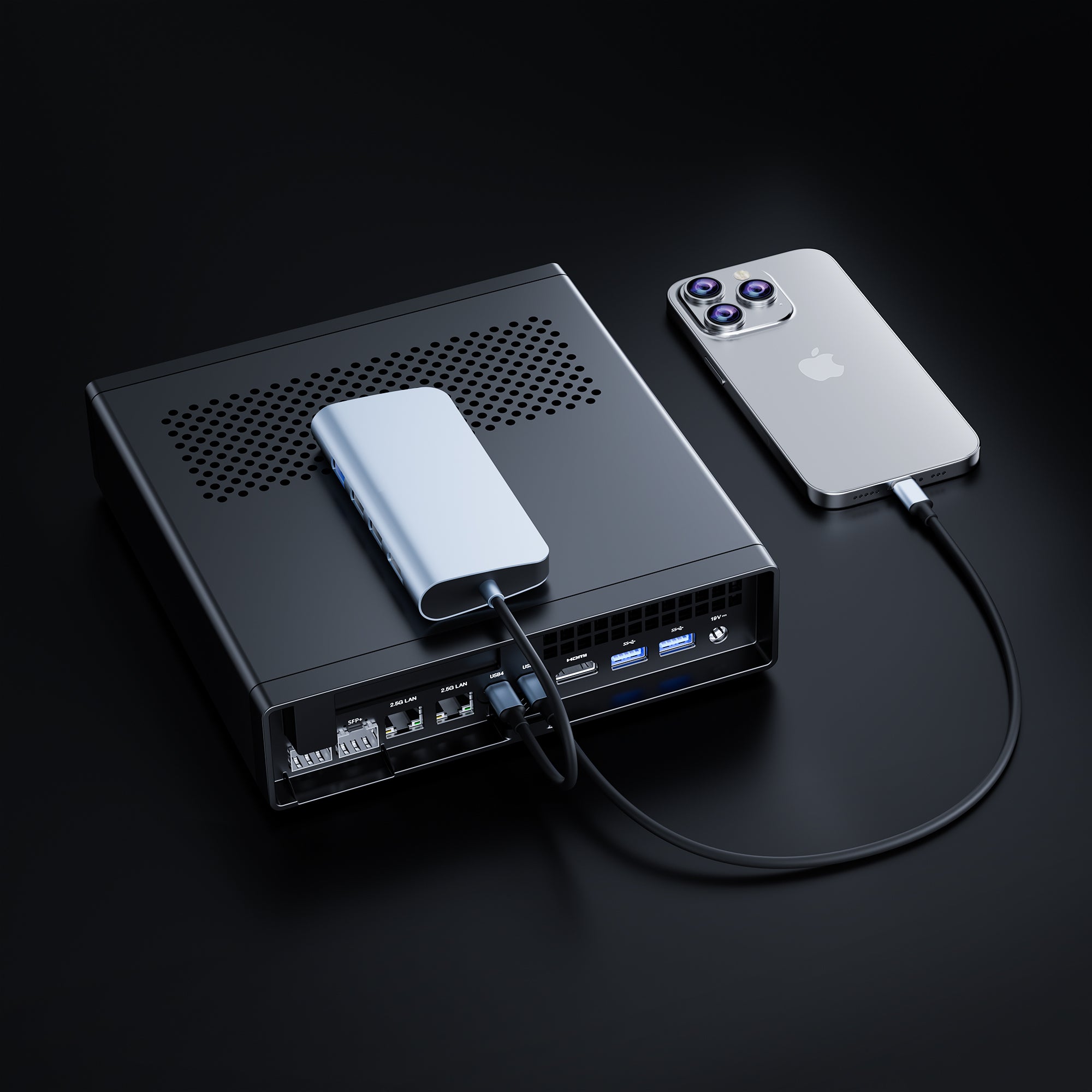

The MS-01 is equipped with two USB4 ports, which incorporate dual-channel transmission technology, enabling data transfer speeds of up to 40Gbps. This doubles the data transfer speed compared to USB 3.2 at 20Gbps.
Additionally, it is capable of building a 20Gbps Ethernet network using USB4 Thunderbolt Bridge technology.
01
The MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ modules offer high stability, and the optical fiber transmission ensures network security by preventing eavesdropping and interception.
With a transmission speed of 10Gbps, it is ten times faster than traditional 1000Mbps Ethernet, meeting the demands of high-performance networking devices.
02
In addition to the two SFP+ network ports, the MS-01 also features two standard 2.5Gbps RJ45 network ports, providing double the transmission speed compared to a single 2.5Gbps port, enabling enhanced network performance.
The RJ45 network ports offer high compatibility with a wide range of network devices, catering to the needs of general use.
03
The MS-01 is equipped with two USB4 ports, which incorporate dual-channel transmission technology, enabling data transfer speeds of up to 40Gbps. This doubles the data transfer speed compared to USB 3.2 at 20Gbps.
Additionally, it is capable of building a 20Gbps Ethernet network using USB4 Thunderbolt Bridge technology.
Compatible with Intel vPRO
The vPro supports hardware acceleration for virtualization of devices such as GPU and sound cards, enabling more efficient processing of graphics and audio tasks.

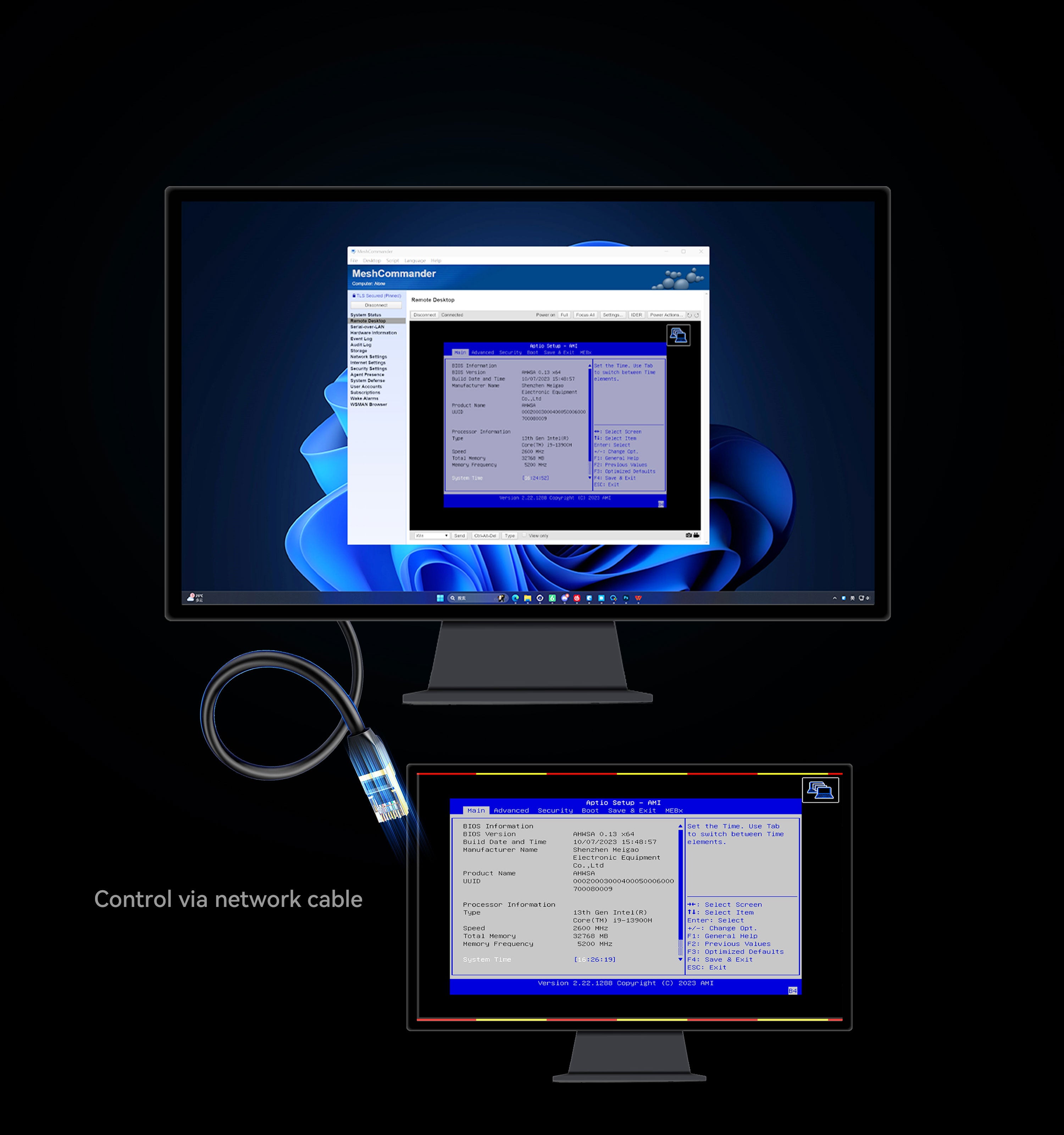

Note:Through Intel AMT remote management, remote KVM control can be achieved at the BIOS level.
High expandability
High scalability enables the system to be expanded and upgraded according to specific needs, providing greater flexibility and customizability.

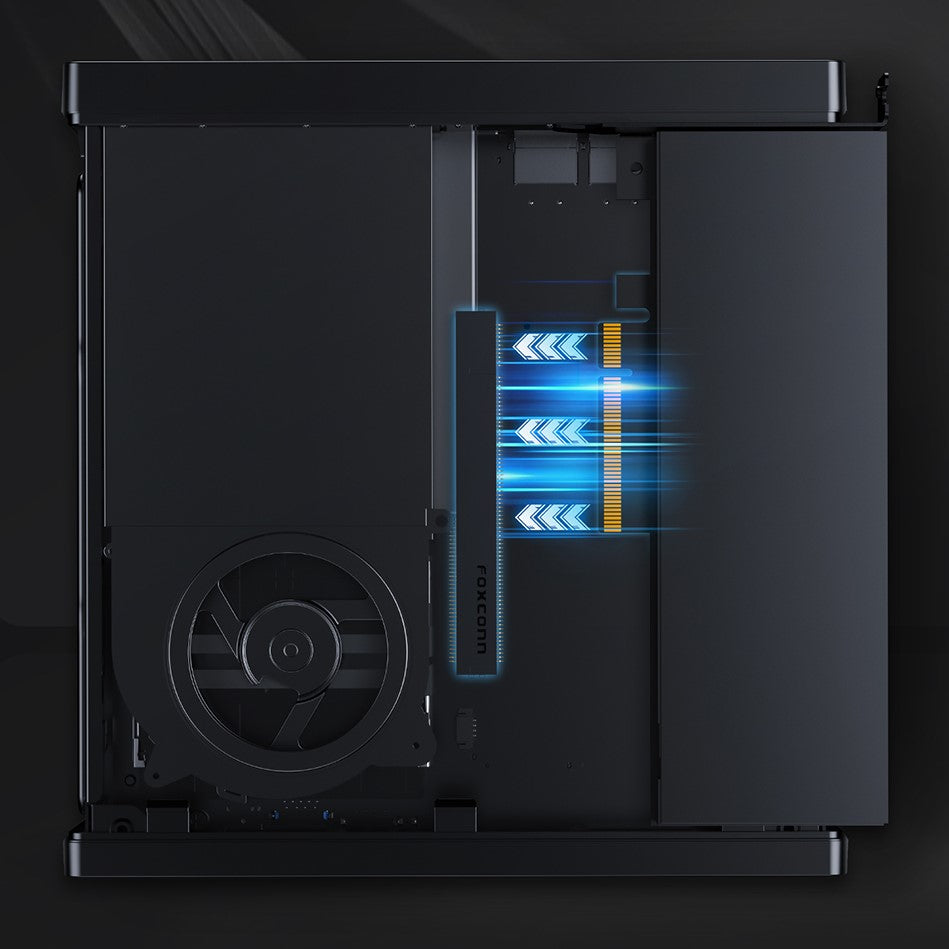

The MS-01 is equipped with a PCIe 4.0 x16 slot, allowing for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices. The PCIe 4.0 x16 slot enables faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering.
It supports PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.
It is possible to expand with up to three M.2 NVMe SSDs, with each slot supporting a maximum capacity of 2TB. The leftmost slot is PCIe 4.0 compatible, with a maximum transfer speed of 7000MB/s. It supports both RAID0 for increased capacity and RAID1 for enhanced data safety.

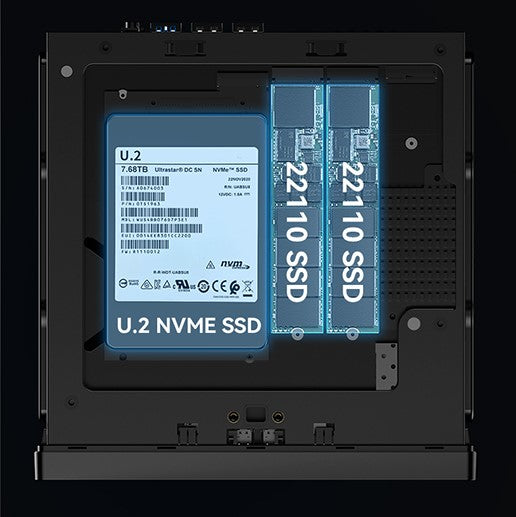

It also supports enterprise-class storage, allowing for expansion up to a total maximum of 24TB with a configuration of one U.2 NVMe SSD and two 22110 M.2 NVMe SSDs. This meets the demands of professionals who require high-capacity storage.
Supports 3-screen display

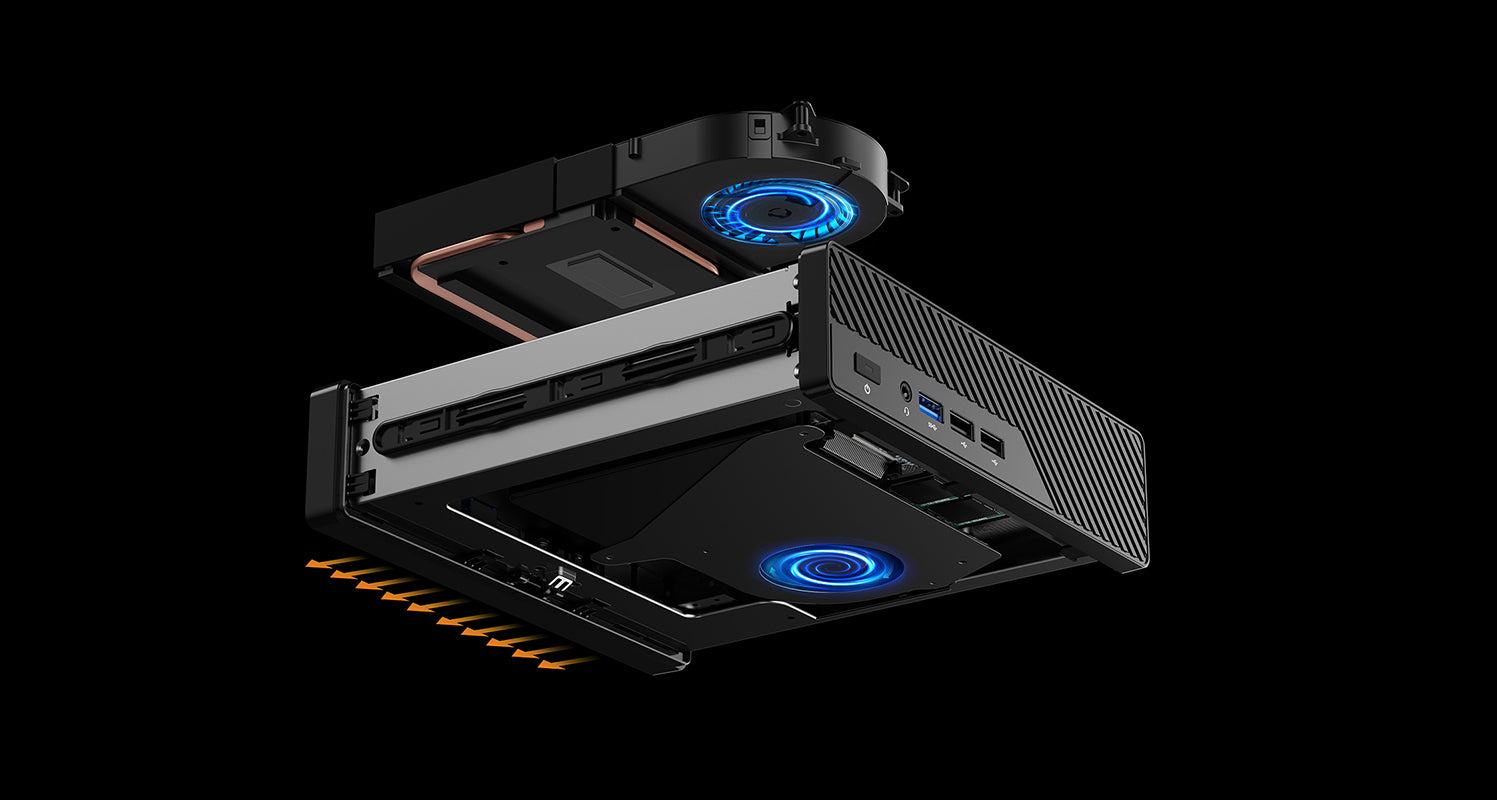

Excellent cooling system
The CPU is equipped with dual U-shaped heat pipes and a high-speed cooling fan, ensuring stable performance even under heavy loads. Additionally, a small intelligent fan on top of the solid-state drive effectively dissipates heat, improving longevity by reducing the computer's operating temperature.
Model
MiniWorkStation MS-01
CPU
Intel® Core™ i9-13900H
14 cores/20 threads (24M cache, up to 5.40 GHz)
Intel® Core™ i9-12900H
14 cores/20 threads (24M cache, up to 5.00 GHz)
Intel® Core™ i5-12600H
(12M Cache, up to 4.50 GHz)
Graphics
MS-01 1390/1290/1260: Intel® Iris® Xe Graphics (Graphics frequency 1.5GHz/1.45GHz)
Memory
DDR5-5200MHz Dual Channel (SODIMM slots x2, up to a total maximum of 64GB)
SSD
M.2 2280 NVMe SSD slot (Alt U.2) (PCIe 4.0 x4) x1
M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x4) x1
M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x2) x1
Memory expansion
1* PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed)
Wireless connectivity
M.2 2230 Wi-Fi support (Wi-Fi 6, BT5.2)
Ethernet
10Gbps SFP+ LAN ×2
2.5Gbps RJ45 LAN ×2
Video output
HDMI 2.0 (4K@60Hz)
USB 4 (8K@30Hz) x2
(Note: Recommended cables - HDMI to HDMI / USB-C to USB-C)
Audio output
HDMI x1 / 3.5mm combo jack x1
Power supply
DC 19V (including power adapter)
OS
Windows 11 Home

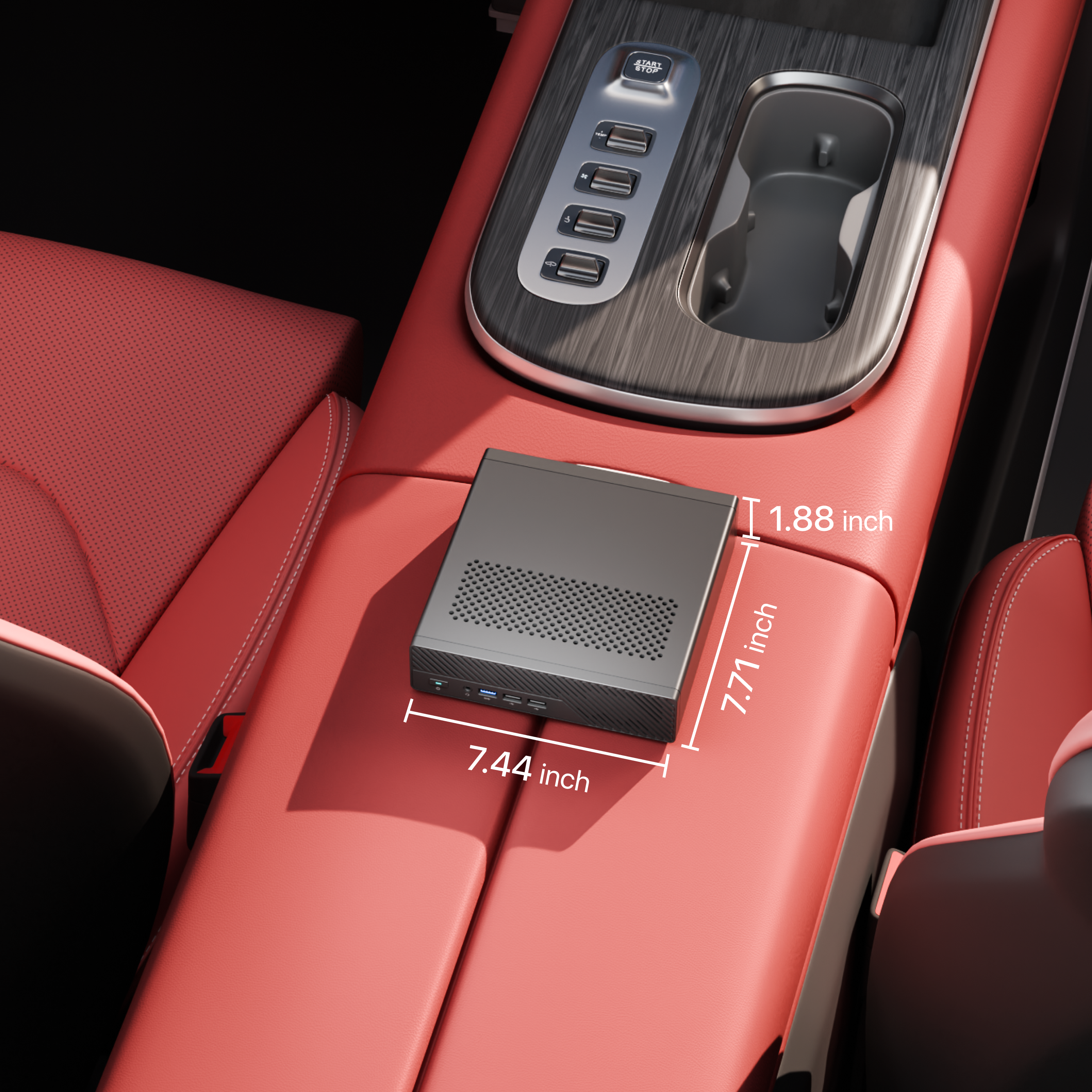

Size
196×189×48ｍｍ

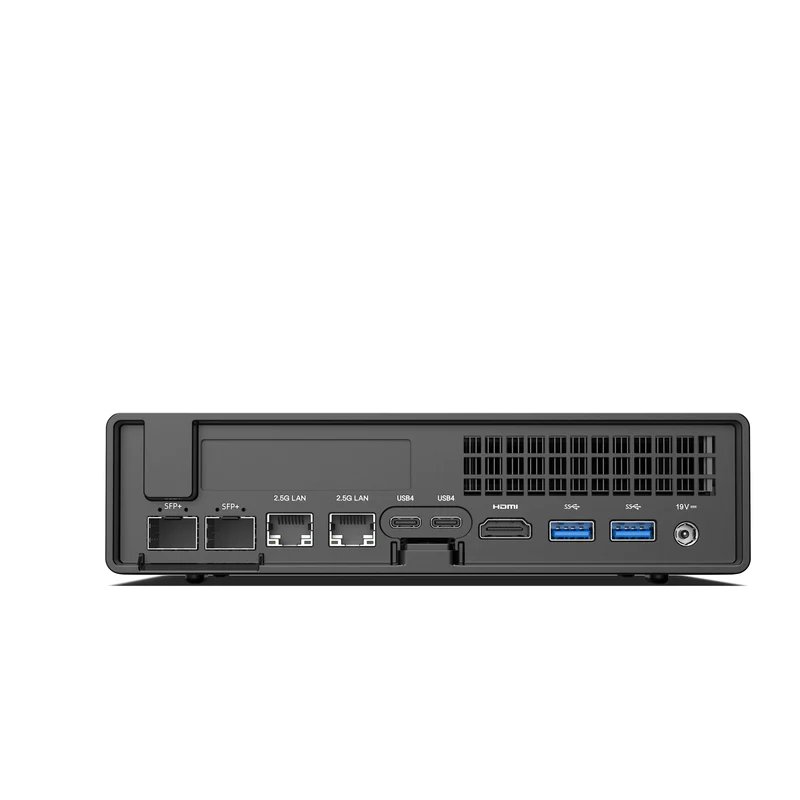

Peripheral interface
10G SFP+ ports x2
RJ45 2.5G Ethernet ports x2
USB3.2 Gen2 Type-A ports x2
USB3.2 Gen1 Type-A ports x1
USB2.0 Type-A ports x2
USB4 ports x2 (Alt PD)
HDMI x1
3.5mm combo jack x1

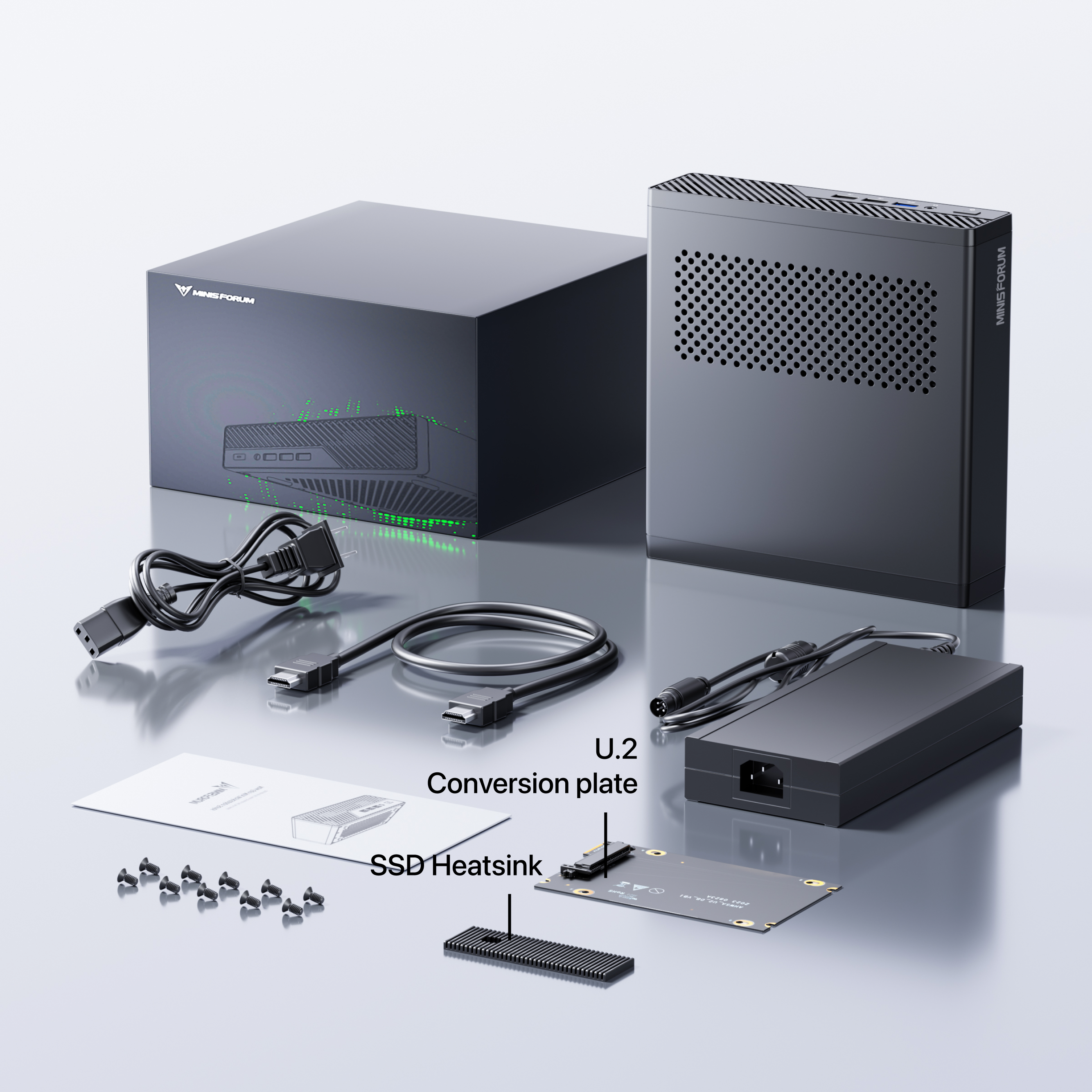

Package contents
1 x MS-01 main unit
1 x Power adapter
1 x Power cable
1 x U.2 conversion plate
1 x SSD heat sink
1 x Mounting screw
1 x HDMI cable
1 x User's Manual
FAQ
Does the barebone come with an OS license?
The barebone does not come with memory, SSD, or OS license.OS download data is available on our support page.
Does the MS-01 support double-sided M.2 SSDs or single-sided?
MS-01 supports dual-sided M.2 SSD.
What size does the SSD solid-state drive support?
The two M.2 slots on the right support NVME SSDs of both 2280 length and 22110 length.
The M.2 interface on the left supports NVME hard drives of 2280 size or U.2 drives with a thickness of 7mm.
Does USB4 support external Thunderbolt 3.0/4.0 graphics cards?
It does support the use of external Thunderbolt 3/4 graphics card expansion docks.
When shipping information is not displayed on the Shipping Status Inquiry page.
This is because the shipment is undergoing customs clearance procedures in Hong Kong. The tracking information will be updated after the procedure is completed.
